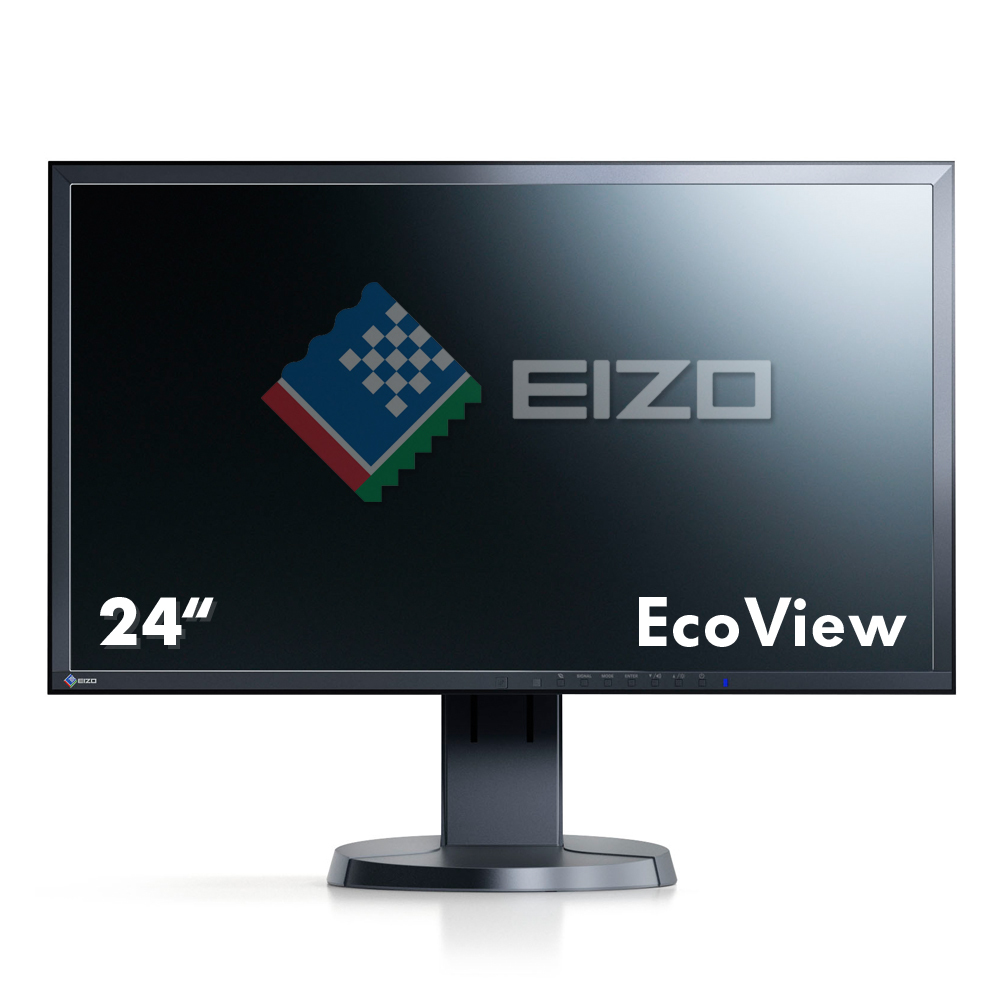

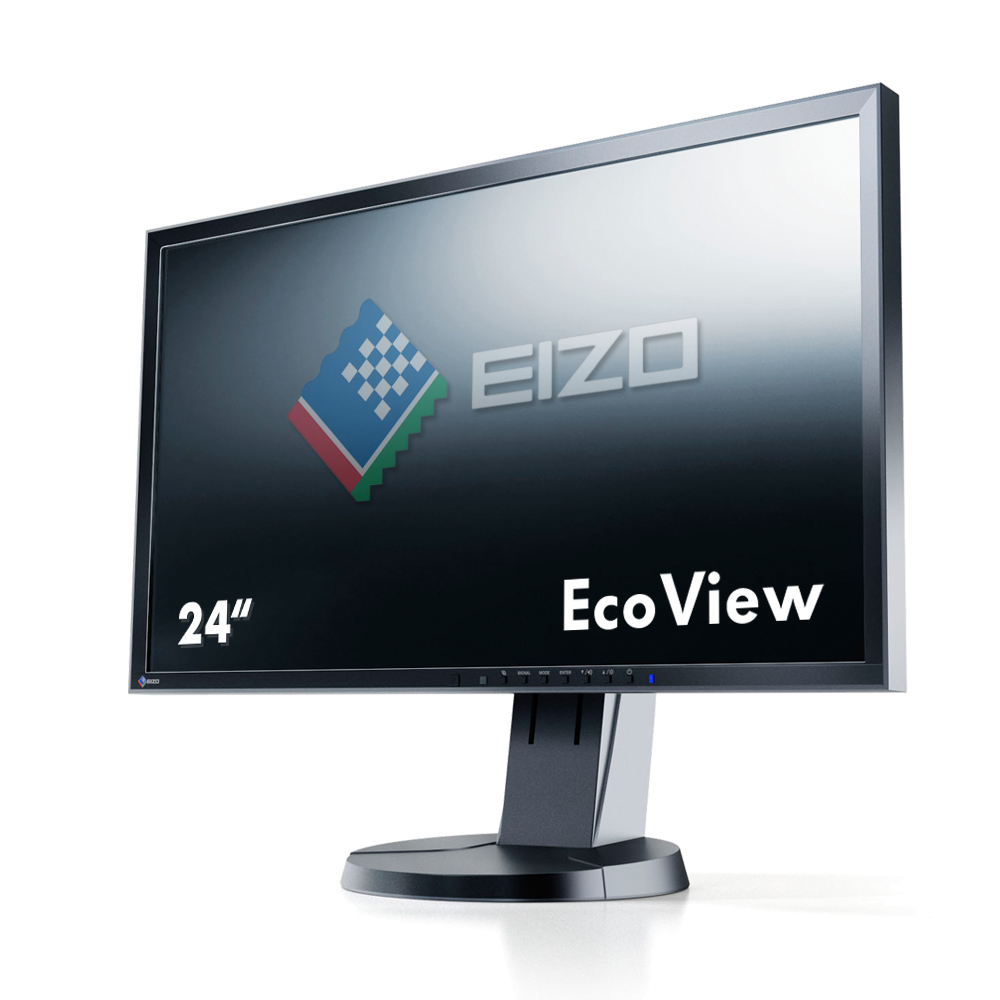

FlexScan EV2416WFS3 computer monitor
61 cm (24") 1920 x 1200 pixels WUXGA LED Black
Model EV2416WFS3Part no. EV2416WFS3-BKEAN 690592036930
95 specifications Checked today
- Display61 cm (24")
- Resolution1920 x 1200 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
- Power consumption (typical)15 W
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1200 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Power consumption (typical)
- 15 W
- Brand
- EIZO
- Category
- Monitor
- Model
- EV2416WFS3
- Part numbers
- EV2416WFS3-BK, EV2416WFS3-GY
- EAN / UPC
- 690592036930, 4995047043904, 4995047043898
- Also known as
- EIZO FlexScan EV2416WFS3 computer monitor 61 cm (24") 1920 x 1200 pixels WUXGA LED Black
Specifications
95 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | TN+Film |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Display surface | Gloss |
| Screen shape | Flat |
| Supported graphics resolutions | 720 x 400, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.270 x 0.270 mm |
| Horizontal scan range | 31 - 76 kHz |
| Vertical scan range | 55 - 61 Hz |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
| Viewable size diagonal | 61.1 cm |
| Digital horizontal frequency | 31 - 76 kHz |
| Digital vertical frequency | 59 - 61 Hz |
| Colour gamut standard | sRGB |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| AC (power) in | Yes |
| Card reader integrated | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -172 - 172° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| Picture-in-Picture | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
| Number of OSD languages | 9 |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 45 W |
| Power consumption (off) | 0 W |
| AC input voltage | 100 - 120 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 552 mm |
| Depth (with stand) | 233 mm |
| Height (with stand) | 499 mm |
| Weight (with stand) | 6.1 kg |
| Width (without stand) | 553 mm |
| Depth (without stand) | 57 mm |
| Height (without stand) | 358 mm |
| Weight (without stand) | 3.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Built-in subwoofer | No |
| TV tuner integrated | No |
| Volume control | Digital |
| Supplied AC adapter type | AC |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
