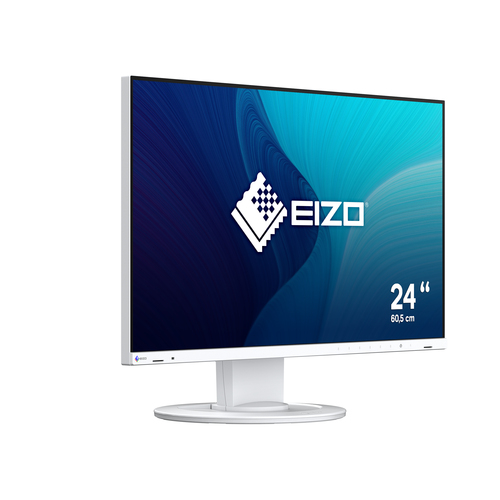

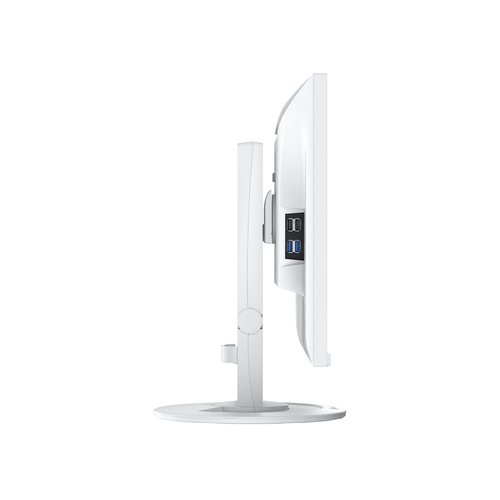

FlexScan EV2400R-WT computer monitor

60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD White

Model EV2400R-WTEAN 4995047071365

94 specifications Checked today

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
Energy classB
ColourWhite
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Energy class: B
Colour: White
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: EIZO
Category: Monitor
Model: EV2400R-WT
Part number: EV2400R-WT
EAN / UPC: 4995047071365
Also known as: EIZO FlexScan EV2400R-WT computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD White

Specifications

94 specifications in 13 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1280 x 1024 (SXGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 400, 640 x 480 (VGA)
Contrast ratio (typical)	1500:1
Maximum refresh rate	100 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.275 x 0.275 mm
Pixel density	93 ppi
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	31 - 114 kHz
Digital vertical frequency	59 - 100 Hz
Display diagonal (metric)	60.5 cm
Colour gamut standard	sRGB

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in camera	No

Design

Specification	Value
Market positioning	Office
Product colour	White
Feet colour	White

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	4
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	No
HDCP	Yes
HDCP version	1.3/1.4

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	14 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	0 - 344°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, French, Italian, Swedish

Power

Specification	Value
Energy efficiency class (SDR)	B
Energy consumption (SDR) per 1000 hours	8 kWh
Power consumption (typical)	8 W
Power consumption (standby)	0.37 W
Power consumption (max)	43 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	537.8 mm
Depth (with stand)	233 mm
Height (with stand)	333.6 mm
Weight (with stand)	5.6 kg
Width (without stand)	537.8 mm
Depth (without stand)	57 mm
Height (without stand)	317.5 mm
Weight (without stand)	3.5 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	DisplayPort, USB Type-A to USB Type-B, AC
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Sustainability compliance	Yes

Other features

Specification	Value
Automatic brightness control	Yes
Compliance certificates	CB, CCC, CE, RoHS, TÜV mark, UKCA, WEEE
Look-up table (LUT) bit depth	10
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified generation 10, TÜV/Low Blue Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EPEAT 2018 Gold (US), EPEAT Climate +
Warranty period	7 year(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
