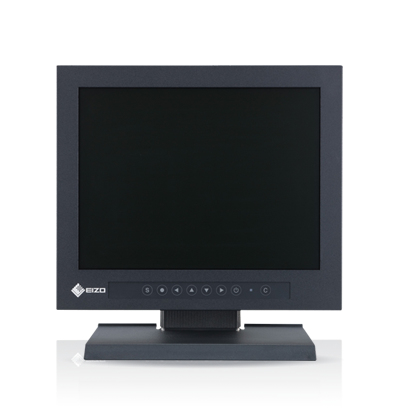

DuraVision FDV1002
Model DuraVision FDV1002Part no. FDV1002-BK
61 specifications Checked today
- Display26.4 cm (10.4")
- Resolution640 x 480 pixels
- ColourBlack
- Built-in speaker(s)No
- USB hub version2.0
- Panel mounting interface100 x 100 mm
Overview
- Display
- 26.4 cm (10.4")
- Resolution
- 640 x 480 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- USB hub version
- 2.0
- Panel mounting interface
- 100 x 100 mm
- Brand
- EIZO
- Category
- Monitor
- Model
- DuraVision FDV1002
- Part numbers
- FDV1002-BK, FDV1002-GY
- Also known as
- EIZO DuraVision FDV1002 computer monitor 26.4 cm (10.4") 640 x 480 pixels LED Black
Specifications
61 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 26.4 cm (10.4") |
| Display resolution | 640 x 480 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Touchscreen | No |
| Panel type | TN+Film |
| Backlight type | W-LED |
| Display brightness (typical) | 450 cd/m² |
| Response time | 30 ms |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.33 x 0.33 mm |
| Horizontal scan range | 24 - 32 kHz |
| Vertical scan range | 56 - 70.5 Hz |
| Viewable size, horizontal | 21.1 cm |
| Viewable size, vertical | 15.8 cm |
| Viewable size diagonal | 26.3 cm |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 0 |
| HDCP | No |
| AC (power) in | Yes |
| Composite video in | 1 |
| S-Video inputs quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | No |
| Swivelling | Yes |
| Swivel angle range | 0 - 35° |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 30° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 13 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 252 mm |
| Depth (with stand) | 175 mm |
| Height (with stand) | 255 mm |
| Weight (with stand) | 3.5 kg |
| Width (without stand) | 252 mm |
| Depth (without stand) | 49 mm |
| Height (without stand) | 216 mm |
| Weight (without stand) | 1.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Analog signal format system | NTSC, PAL, SECAM |
| Certification | c-Tick, CE, CB, FCC-B, VCCI-B, RoHS, WEEE |
| Supplied AC adapter type | LCD |
