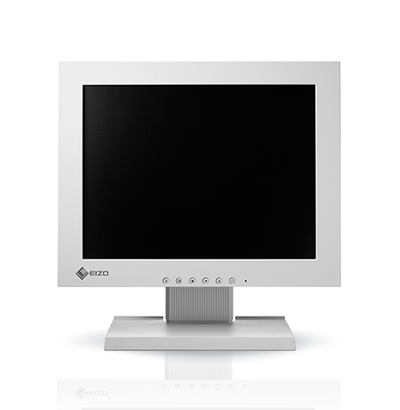

EIZO DuraVision FDSV1201T

DuraVision FDSV1201T

Model DuraVision FDSV1201TPart no. FDSV1201T-GYEAN 4995047045144

56 specifications Checked today

Display30.7 cm (12.1")
Resolution800 x 600 pixels
ColourGrey
NVIDIA G-SYNCNo
Number of upstream ports1
VESA mountingYes

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 800 x 600 pixels
Colour: Grey
NVIDIA G-SYNC: No
Number of upstream ports: 1
VESA mounting: Yes

Brand: EIZO
Category: Monitor
Model: DuraVision FDSV1201T
Part numbers: FDSV1201T-GY, FDSV1201TF-GY
EAN / UPC: 4995047045144, 4995047045151
Also known as: EIZO DuraVision FDSV1201T computer monitor 30.7 cm (12.1") 800 x 600 pixels Touchscreen Tabletop Grey

Specifications

56 specifications in 11 groups

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	800 x 600 pixels
Touchscreen	Yes
Backlight type	LED
Touchscreen type	Tabletop
Touchscreen technology	Resistive
Display brightness	360 cd/m²
Response time	10 ms
Screen shape	Flat
Aspect ratio	4:3
Contrast ratio (typical)	700:1
Viewing angle, horizontal	160°
Viewing angle, vertical	140°
Display number of colours	16.78 million colours
Pixel pitch	0.3075 x 0.3075 mm
Viewable size, horizontal	24.6 cm
Viewable size, vertical	18.4 cm
Separate H/V sync	Yes

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in camera	No

Design

Specification	Value
Product colour	Grey

Ports & interfaces

Specification	Value
Number of upstream ports	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDCP	Yes
RS-232 ports	1

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Swivel angle range	-35 - 35°
Tilt adjustment	Yes
Tilt angle range	0 - 30°

Power

Specification	Value
Power consumption (typical)	4 W
Power consumption (standby)	0.5 W
Power consumption (max)	12 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90%

Weight & dimensions

Specification	Value
Dimensions (W x D x H) with stand	299 x 175 x 302.5 mm
Width (with stand)	299 mm
Depth (with stand)	175 mm
Height (with stand)	302.5 mm
Weight (with stand)	3.8 kg
Width (without stand)	299 mm
Depth (without stand)	55.5 mm
Height (without stand)	239 mm
Weight (without stand)	2.2 kg

Packaging content

Specification	Value
Cables included	USB, VGA

Other features

Specification	Value
Display viewable area (HxV)	246 x 184.5 mm
Heavy metals free	Hg (mercury)
Certification	CB, CE, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, ECM, EAC, RoHS, WEEE, China RoHS
Supplied AC adapter type	AC
