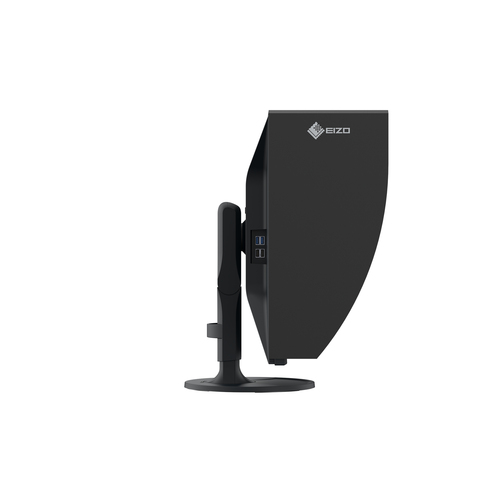

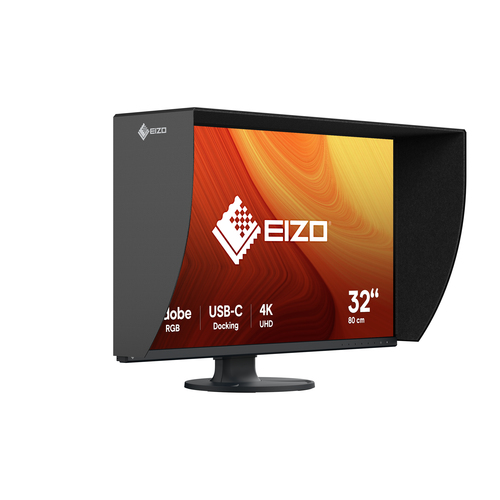

ColorEdge CS3200X computer monitor

80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD LCD Black

Model CS3200XEAN 4995047071280

100 specifications Checked today

Display80 cm (31.5")
Resolution3840 x 2160 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Market positioningPhoto editing

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 3840 x 2160 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Photo editing

Brand: EIZO
Category: Monitor
Model: CS3200X
Part number: CS3200X
EAN / UPC: 4995047071280
Also known as: EIZO ColorEdge CS3200X computer monitor 80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD LCD Black

Specifications

100 specifications in 12 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	14 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	3840 x 2160, 2560 x 1600 (WQXGA), 2560 x 1440, 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1600 x 1200 (UXGA), 1280 x 1024 (SXGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 400, 640 x 480 (VGA)
Supported video modes	1080i, 1080p, 720p, 576p, 480i
Contrast ratio (typical)	1300:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.182 x 0.182 mm
Pixel density	140 ppi
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
Digital horizontal frequency	25 - 137 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	80 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
Colour depth	10 bit
Colour gamut standard	Adobe RGB, DCI-P3, sRGB, Rec. 709, EBU, SMPTE-C
sRGB coverage (typical)	100%
Adobe RGB coverage	99%
DCI-P3 coverage	96%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Photo editing
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	70 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Built-in KVM switch	Yes
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	14.2 cm
Swivelling	Yes
Swivel angle range	0 - 344°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, French, Spanish, Italian, Swedish

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	27 kWh
Power consumption (typical)	25 W
Power consumption (standby)	0.5 W
Power consumption (max)	166 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	712.7 mm
Depth (with stand)	245 mm
Height (with stand)	431.5 mm
Weight (with stand)	10.6 kg
Width (without stand)	712.7 mm
Depth (without stand)	69.3 mm
Height (without stand)	420.5 mm
Weight (without stand)	7.7 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	HDMI, USB Type-C to USB Type-C, USB Type-A to USB Type-B, Power
Sun hood included	Yes
Quick start guide	Yes

Other features

Specification	Value
Hardware calibration	Yes
Compliance certificates	UKCA, CB, RCM, ICES, VCCI, RoHS, WEEE, PSE, CE, TÜV mark
Look-up table (LUT) bit depth	16
Certification	CE, UKCA, CB, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), PSE, VCCI-B, RoHS, WEEE
Warranty period	5 year(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
