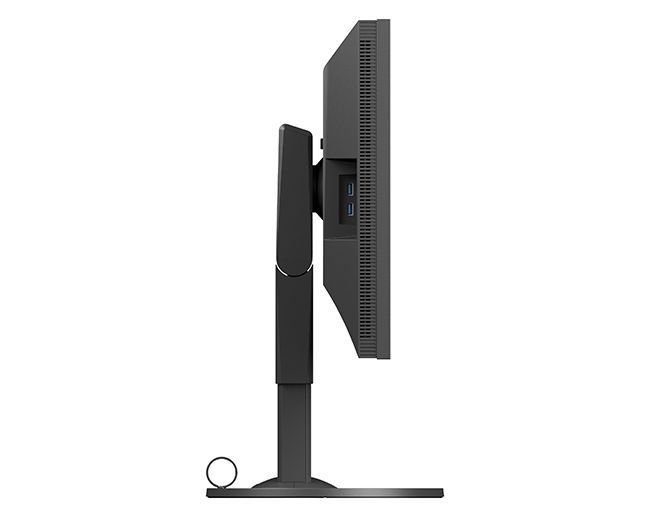

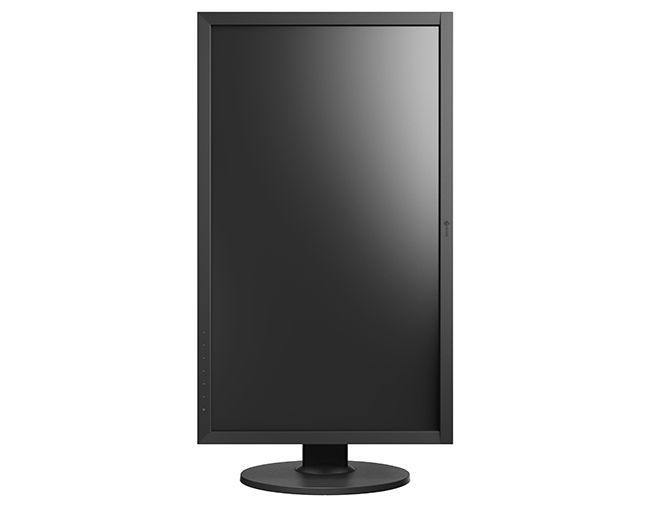

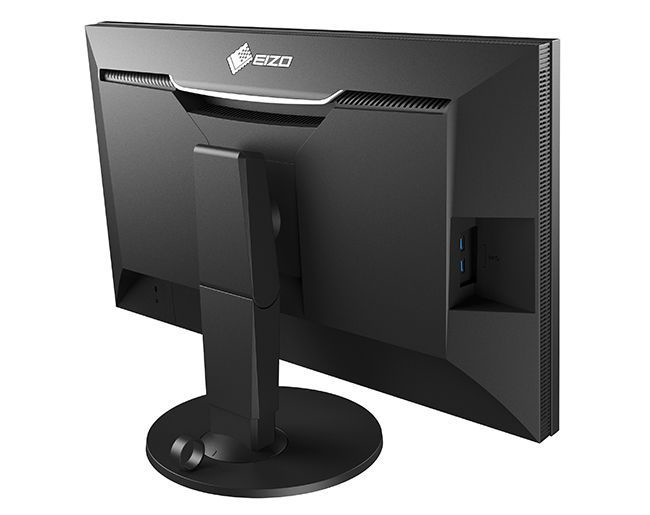

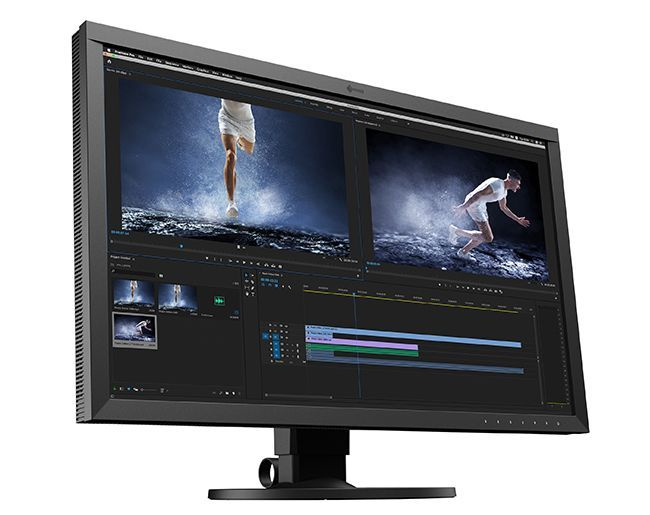

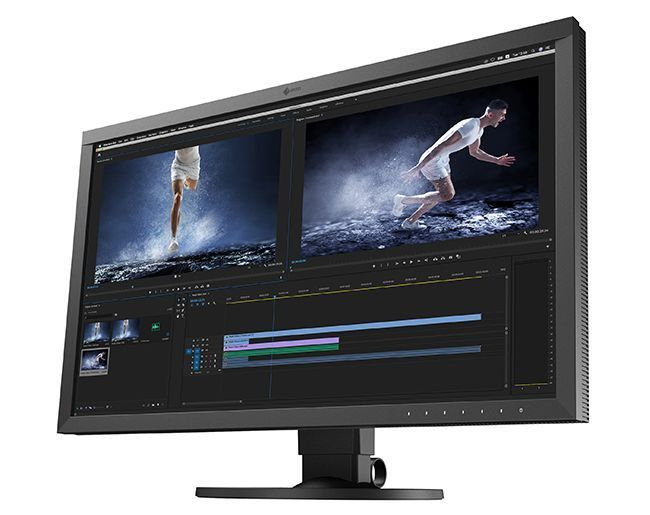

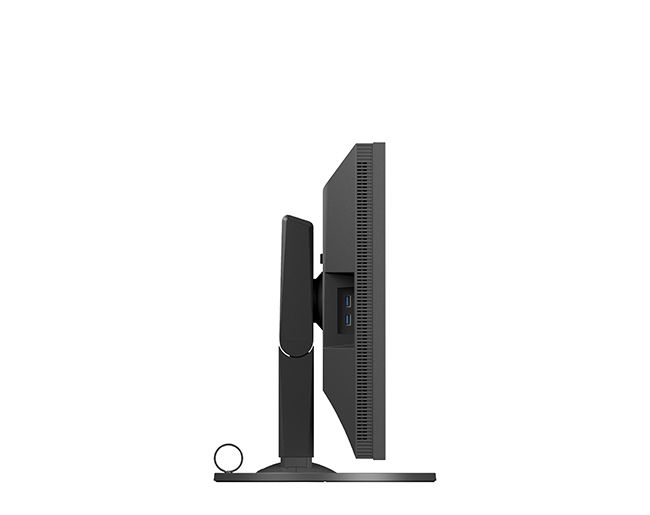

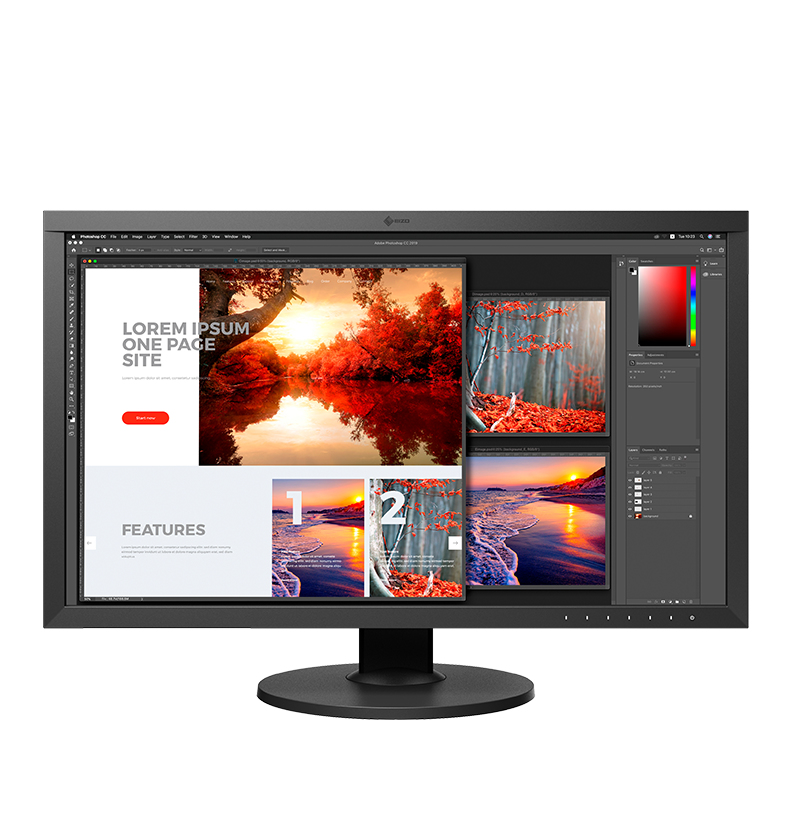

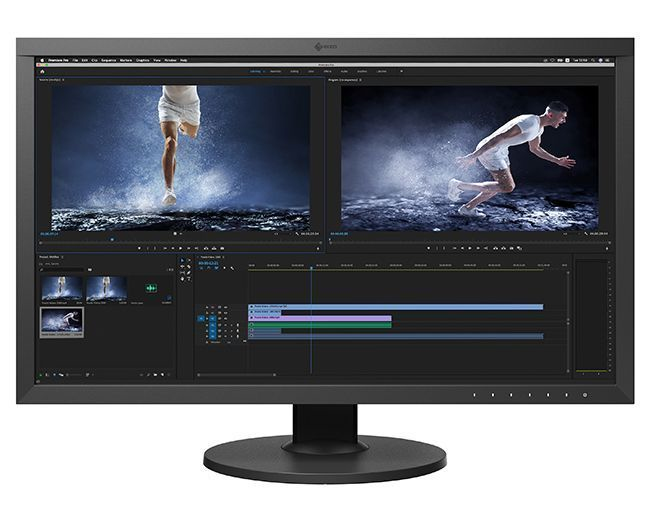

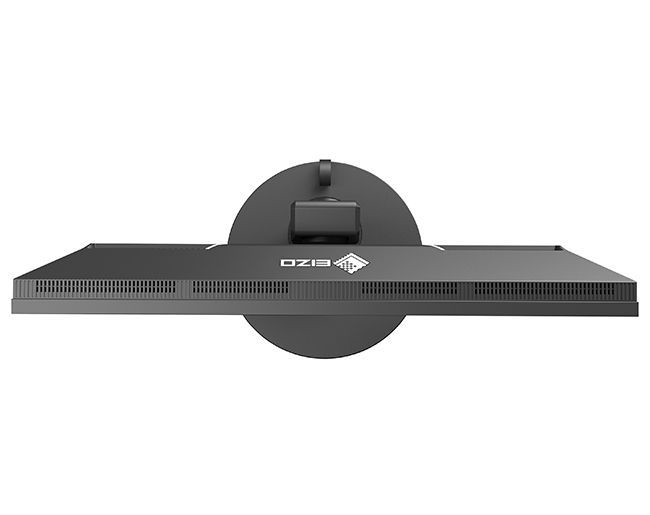

ColorEdge CS2740-BK computer monitor

68.3 cm (26.9") 3840 x 2160 pixels 4K Ultra HD LED Black

Model CS2740-BK

75 specifications Checked today

Display68.3 cm (26.9")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCNo
Market positioningGraphics design

See all specifications

Overview

Display: 68.3 cm (26.9")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Graphics design

Brand: EIZO
Category: Monitor
Model: CS2740-BK
Part number: CS2740-BK
Also known as: EIZO ColorEdge CS2740-BK computer monitor 68.3 cm (26.9") 3840 x 2160 pixels 4K Ultra HD LED Black

Specifications

75 specifications in 11 groups

Display

Specification	Value
Display diagonal	68.3 cm (26.9")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
Backlight type	LED
Display brightness (typical)	350 cd/m²
Response time	10 ms
Screen shape	Flat
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.155 x 0.155 mm
Pixel density	164 ppi
Viewable size, horizontal	59.6 cm
Viewable size, vertical	2.16 m
Digital horizontal frequency	25 - 137 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	68.4 cm
Colour gamut standard	Adobe RGB
Adobe RGB coverage	99%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Design

Specification	Value
Market positioning	Graphics design
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery up to	60 W
HDMI	Yes
DisplayPorts quantity	1

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15.5 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	0 - 344°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	38 kWh
Power consumption (typical)	36 W
Power consumption (standby)	1 W
Power consumption (max)	168 W
Power consumption (PowerSave)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	638 mm
Depth (with stand)	265 mm
Height (with stand)	404.1 mm
Weight (with stand)	10.3 kg
Width (without stand)	638 mm
Depth (without stand)	75 mm
Height (without stand)	378.2 mm
Weight (without stand)	6.7 kg

Packaging content

Specification	Value
Cables included	AC, USB
Quick start guide	Yes

Other features

Specification	Value
Certification	CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
