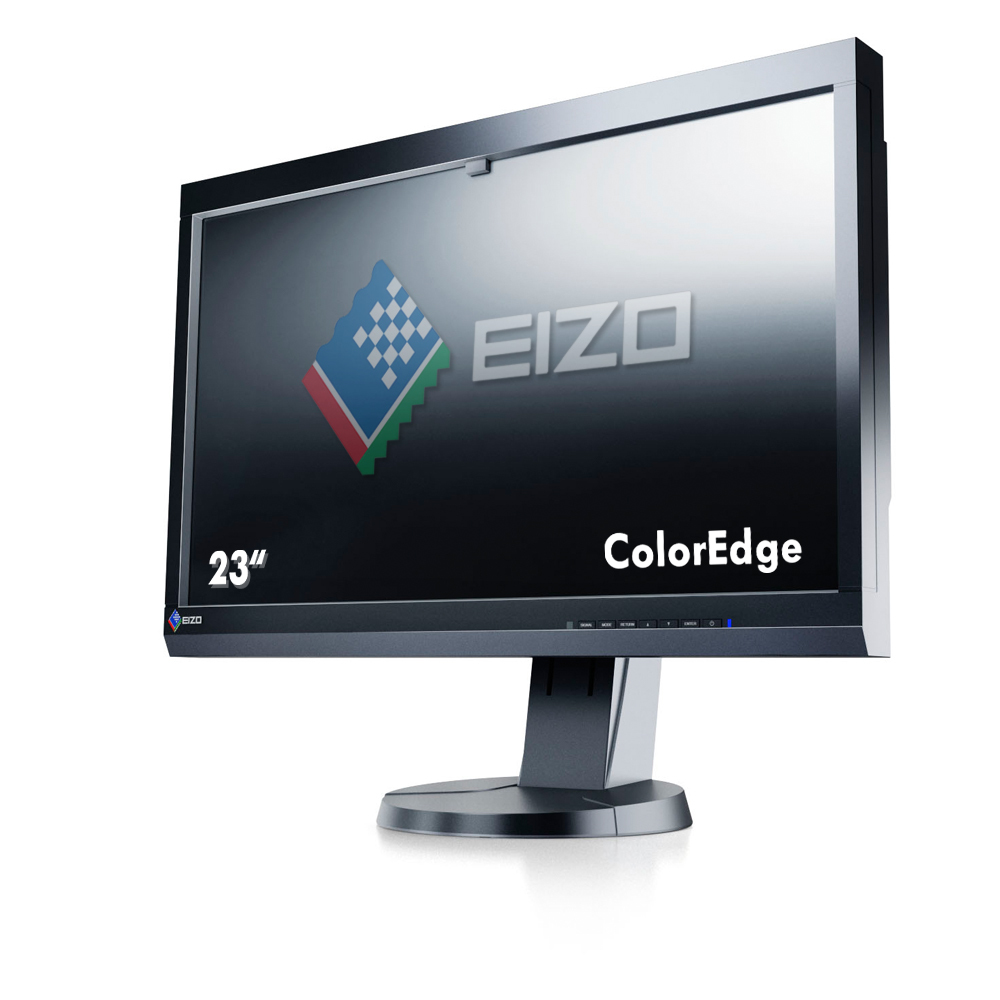

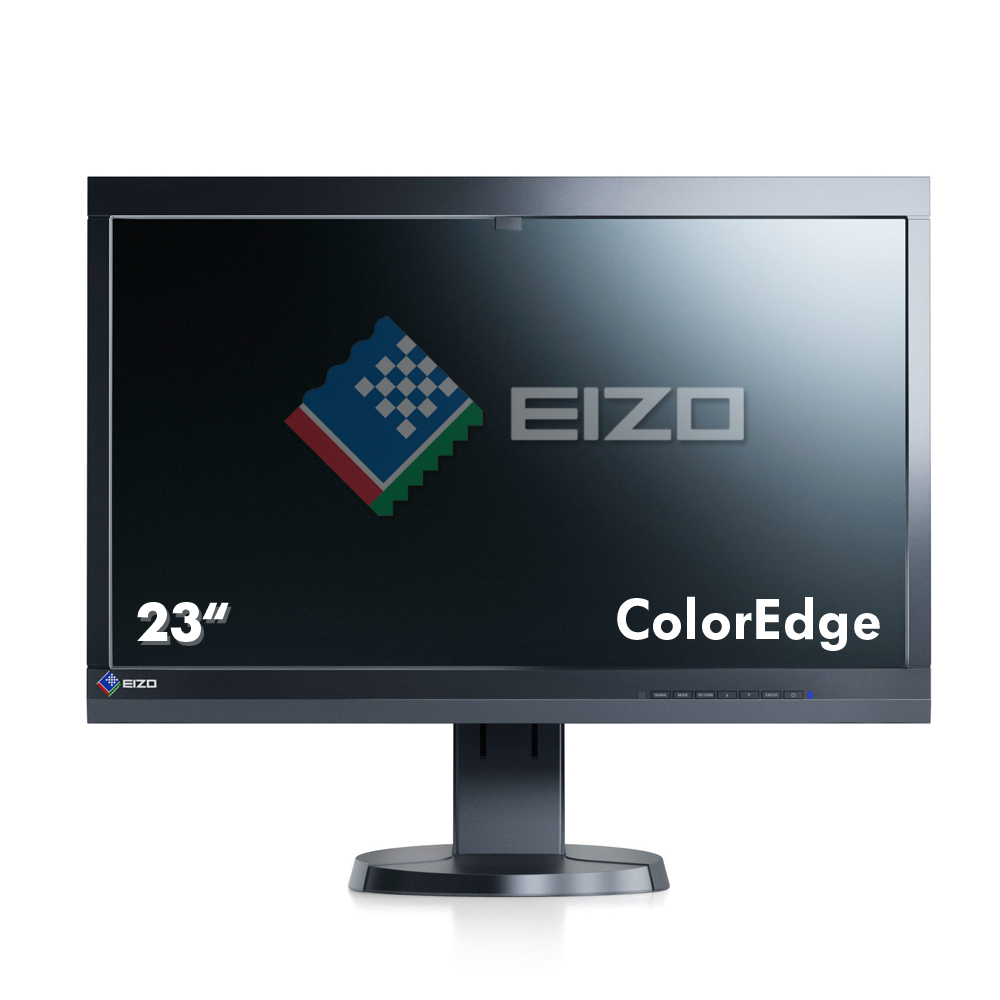

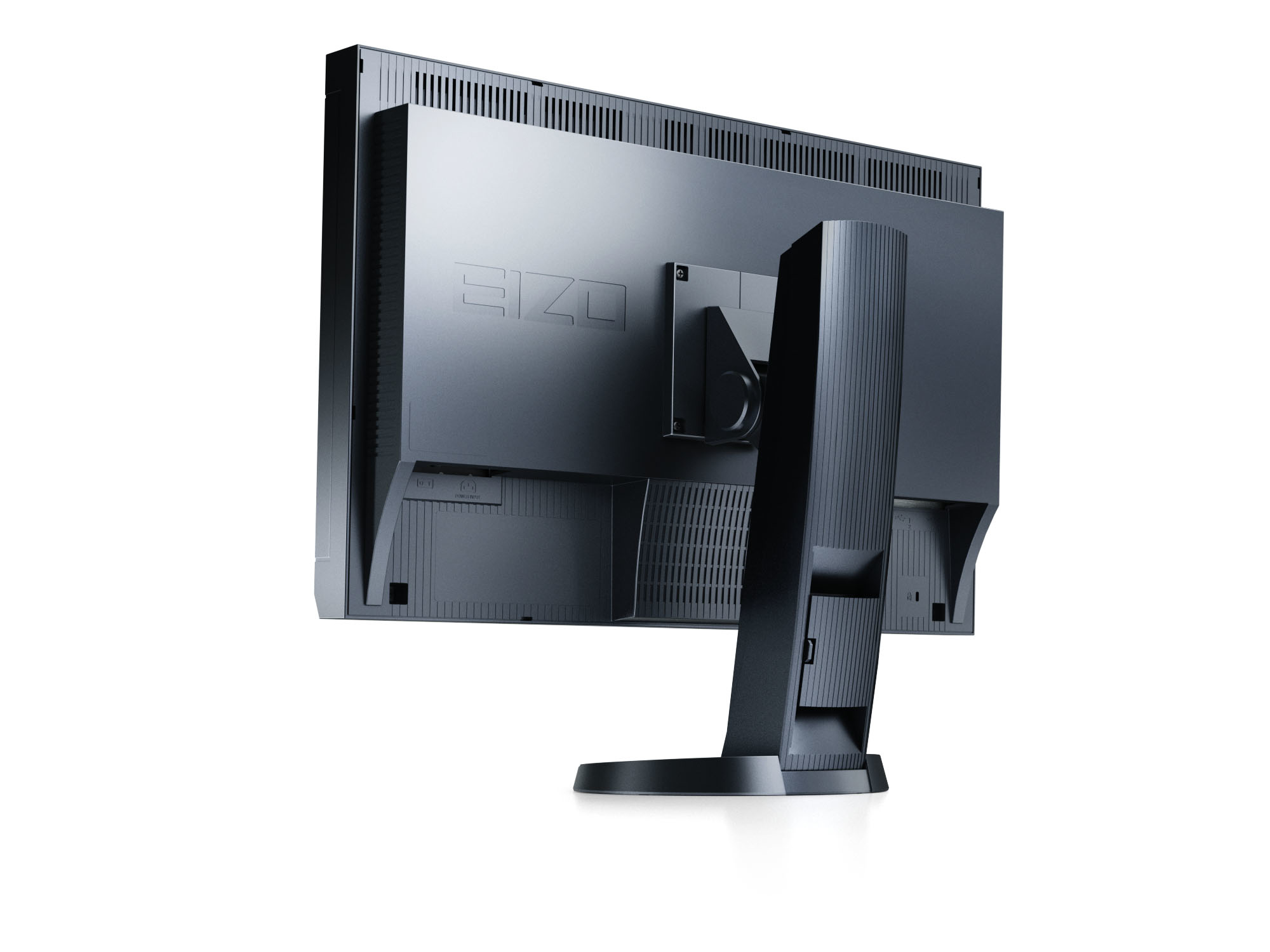

EIZO ColorEdge CS230B computer monitor

58.4 cm (23") 1920 x 1080 pixels Full HD LED Black

Model CS230BPart no. CS230B-BKEAN 4995047040927

84 specifications Checked 2 days ago

Overview

Brand: EIZO
Category: Monitor
Model: CS230B
Part number: CS230B-BK
EAN / UPC: 4995047040927, 5712505757192, 6905920339534
Also known as: EIZO ColorEdge CS230B computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LED Black

84 specifications in 12 groups

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
Display brightness (typical)	300 cd/m²
Response time	10.5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.2652 x 0.2652 mm
Horizontal scan range	26 - 68 kHz
Vertical scan range	47.5 - 61 Hz
Viewable size, horizontal	50.9 cm
Viewable size, vertical	28.6 cm
Viewable size diagonal	58.4 cm
Digital horizontal frequency	26 - 68 kHz
Digital vertical frequency	23.75 - 63 Hz
3D	No

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-I ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	15.4 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-172 - 172°
Tilt adjustment	Yes
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Number of OSD languages	9
LED indicators	Yes

Specification	Value
Power consumption (typical)	21 W
Power consumption (standby)	0.5 W
Power consumption (max)	54 W
Power consumption (off)	0.5 W
Power consumption (PowerSave)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	53 kWh

Specification	Value
Operating temperature (T-T)	0 - 35 °C

Specification	Value
Cables included	AC, DVI, USB
Manual	Yes

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Energy efficiency class (legacy scale)	C
Placement supported	Horizontal/Vertical
Certification	CUDO certified mark, TCO Certified Displays 6.0, TUV/S, TUV/Ergonomics, TUV/GS, cTUVus, CE, c-Tick, CB, VCCI-B, FCC-B, Canadian ICES-003-B, RoHS, WEEE, GOST-R
Supplied AC adapter type	AC

Specification	Value
Thin client installed	No
