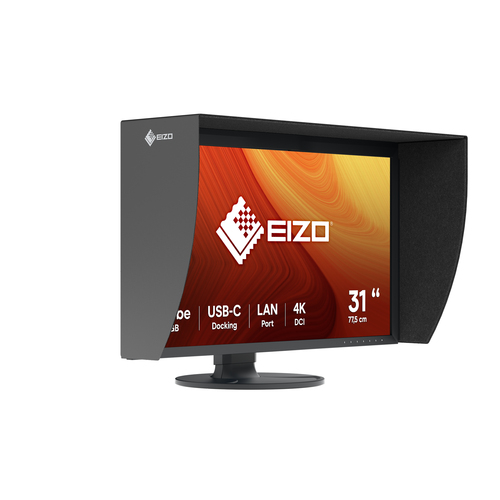

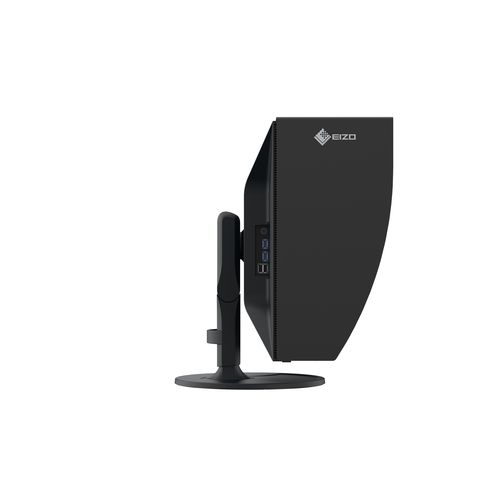

ColorEdge CG3100X computer monitor

77.5 cm (30.5") 4096 x 2160 pixels 4K DCI LCD Black

Model CG3100XEAN 690592061529

113 specifications Checked today

Display77.5 cm (30.5")
Resolution4096 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCNo
Market positioningPhoto editing

See all specifications

Overview

Display: 77.5 cm (30.5")
Resolution: 4096 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Photo editing

Brand: EIZO
Category: Monitor
Model: CG3100X
Part number: CG3100X
EAN / UPC: 690592061529, 4995047068495
Also known as: EIZO ColorEdge CG3100X computer monitor 77.5 cm (30.5") 4096 x 2160 pixels 4K DCI LCD Black

Specifications

113 specifications in 14 groups

Display

Specification	Value
Display diagonal	77.5 cm (30.5")
Display resolution	4096 x 2160 pixels
Native aspect ratio	17:9
Display technology	LCD
Touchscreen	No
HD type	4K DCI
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	500 cd/m²
Response time	15 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Supported video modes	1080i, 1080p, 720p, 576p, 480i
Contrast ratio (typical)	1800:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.167 x 0.167 mm
Pixel density	152 ppi
Horizontal scan range	15 - 136 kHz
Vertical scan range	23 - 61 Hz
Viewable size, horizontal	68.6 cm
Viewable size, vertical	36.2 cm
Digital horizontal frequency	25 - 137 kHz
Digital vertical frequency	23 - 61 Hz
Display diagonal (metric)	77.5 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
Colour depth	10 bit
Colour gamut standard	Adobe RGB, DCI-P3, EBU, Rec. 709, sRGB
sRGB coverage (typical)	100%
Adobe RGB coverage	97%
DCI-P3 coverage	99%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Photo editing
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	94 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	2.3

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15.5 cm
Swivelling	Yes
Swivel angle range	0 - 344°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Swedish

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	51.9 kWh
Power consumption (typical)	86 W
Power consumption (standby)	0.5 W
Power consumption (max)	270 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	721 mm
Depth (with stand)	290 mm
Height (with stand)	428.1 mm
Weight (with stand)	12.3 kg
Width (without stand)	721 mm
Depth (without stand)	87.2 mm
Height (without stand)	413.9 mm
Weight (without stand)	8.9 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC
Sun hood included	Yes
Quick start guide	Yes

Other features

Specification	Value
Hardware calibration	Yes
Built-in calibration sensor	Yes
Compliance certificates	CB, CE, Federal Communications Commission (FCC), PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE
Look-up table (LUT) bit depth	24
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), FograCert Softproofing System (class A), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-A, RoHS, WEEE
Warranty period	5 year(s)

Technical details

Specification	Value
Native refresh rate	60 Hz

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
