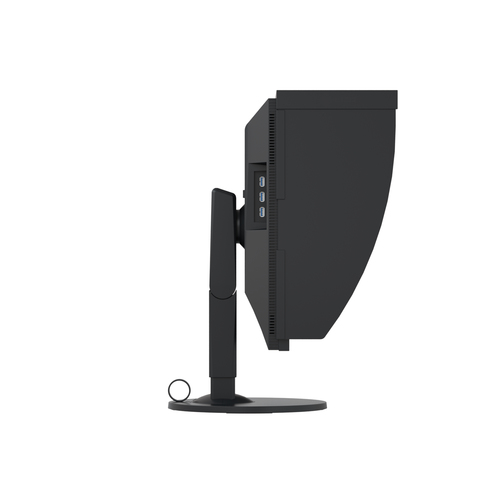

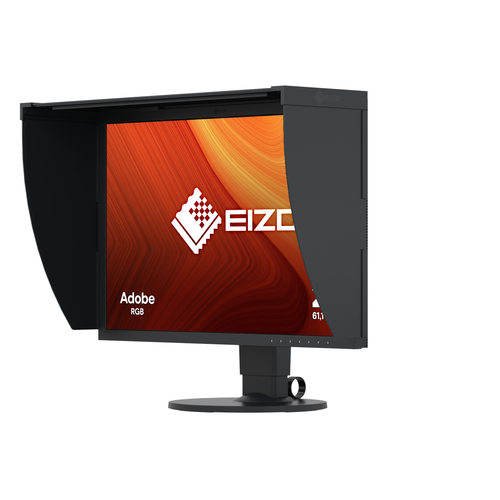

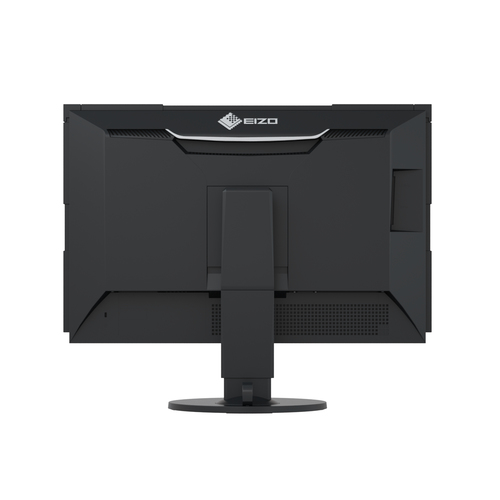

ColorEdge CG2420 computer monitor

61.2 cm (24.1") 1920 x 1200 pixels WUXGA Black

Model CG2420Part no. 21663EAN 4995047048084

90 specifications Checked today

Display61.2 cm (24.1")
Resolution1920 x 1200 pixels
Energy classF
ColourBlack
NVIDIA G-SYNCNo
Market positioningGraphics design

See all specifications

Overview

Display: 61.2 cm (24.1")
Resolution: 1920 x 1200 pixels
Energy class: F
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Graphics design

Brand: EIZO
Category: Monitor
Model: CG2420
Part numbers: 21663, CG2420
EAN / UPC: 4995047048084, 118167610861, 690592041118, 4995047064718
Also known as: EIZO ColorEdge CG2420 computer monitor 61.2 cm (24.1") 1920 x 1200 pixels WUXGA Black

Specifications

90 specifications in 15 groups

Display

Specification	Value
Display diagonal	61.2 cm (24.1")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Touchscreen	No
HD type	WUXGA
Panel type	IPS
Display brightness (typical)	400 cd/m²
Response time	10 ms
Screen shape	Flat
Supported graphics resolutions	1920 x 1200 (WUXGA)
Contrast ratio (typical)	1500:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.27 x 0.27 mm
Pixel density	94 ppi
Horizontal scan range	15 - 78 kHz
Vertical scan range	24 - 61 Hz
Viewable size, horizontal	51.8 cm
Viewable size, vertical	32.4 cm
Digital horizontal frequency	15 - 78 kHz
Digital vertical frequency	24 - 61 Hz
Colour gamut standard	Adobe RGB
sRGB coverage (typical)	100%
Adobe RGB coverage	99%
3D	No
DCI-P3 coverage	98%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Graphics design
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	No
DVI-D ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
Card reader integrated	No

Network

Specification	Value
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	15.5 cm
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-172 - 172°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
Number of OSD languages	9
LED indicators	Yes

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	21.2 kWh
Power consumption (typical)	21.2 W
Power consumption (standby)	0.5 W
Power consumption (max)	79 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	554.4 mm
Depth (with stand)	245 mm
Height (with stand)	551 mm
Weight (with stand)	7.8 kg
Width (without stand)	554.4 mm
Depth (without stand)	64 mm
Height (without stand)	362 mm
Weight (without stand)	5 kg

Packaging content

Specification	Value
Cables included	AC, DVI, Mini DisplayPort, USB

Other features

Specification	Value
Hardware calibration	Yes
Built-in calibration sensor	Yes
On/off switch	Yes
TV tuner integrated	No
Power management	Yes
Compliance industry standards	RoHS
Certification	CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), RCM, WEEE, EAC
Supplied AC adapter type	AC

Thin Client

Specification	Value
Thin client installed	No

Technical details

Specification	Value
Native refresh rate	60 Hz

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
