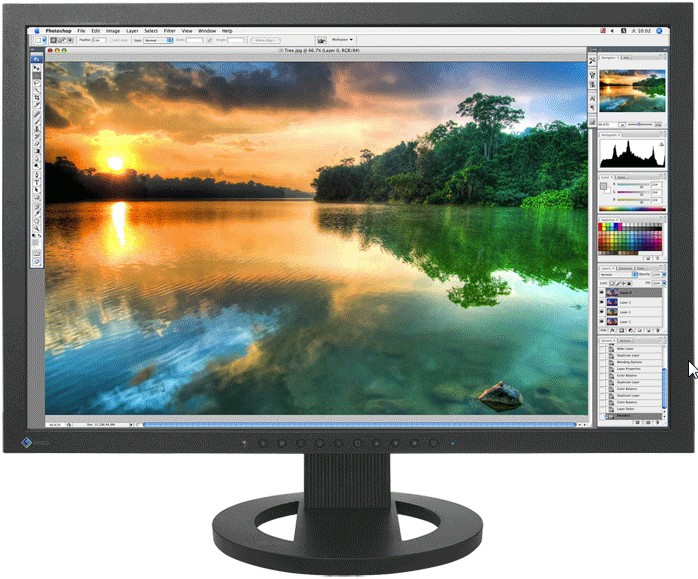

CG223W-Photo computer monitor

55.9 cm (22") 1680 x 1050 pixels LCD Black

Model CG223W-PhotoPart no. 21361

83 specifications Checked today

Overview

Brand: EIZO
Category: Monitor
Model: CG223W-Photo
Part number: 21361
Also known as: EIZO CG223W-Photo computer monitor 55.9 cm (22") 1680 x 1050 pixels LCD Black

83 specifications in 11 groups

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
Panel type	PVA
Display brightness (typical)	270 cd/m²
Response time	6 ms
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	24 - 82 kHz
Vertical scan range	47.5 - 86 Hz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	31 - 65 kHz
Digital vertical frequency	47.5 - 61 Hz
3D	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Graphics design
Product colour	Black

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DVI-I ports quantity	2
HDMI ports quantity	0
DisplayPorts quantity	1
Mini DisplayPorts quantity	0
HDCP	Yes
AC (power) in	Yes
Composite video in	0
Composite video out	0
SCART ports quantity	0
RF ports quantity	0
Digital audio optical out	0
BNC input ports	0
Common interface (CI)	No
Common interface Plus (CI+)	No
Component video (YPbPr/YCbCr) in	0
Component video (YPbPr/YCbCr) out	0
Firewire (IEEE 1394) ports	0
RS-232 ports	0
RS-485 ports	0
S-Video inputs quantity	0
Thunderbolt ports quantity	0

Specification	Value
Bluetooth	No
Ethernet LAN	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Pivot	Yes
Pivot angle	90
Swivel angle range	-172 - 172°
Tilt angle range	0 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Number of OSD languages	9
Plug and Play	Yes
LED indicators	Power

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
TV tuner integrated	No
Certification	CUDO, TCO'03, TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, ICES-003-B, TÜV/S, VCCI-B, RoHS, WEEE
Supplied AC adapter type	LCD
