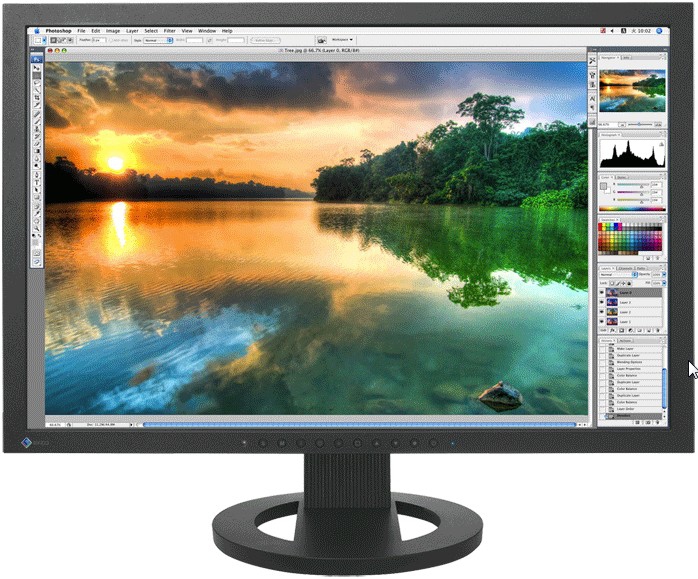

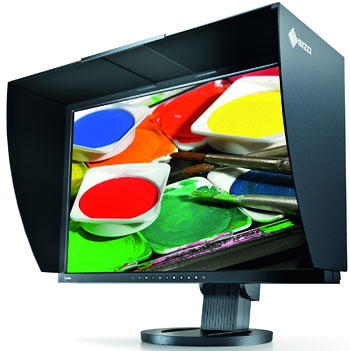

EIZO CG223W-BK computer monitor

CG223W-BK computer monitor

55.9 cm (22") 1680 x 1050 pixels Black

Model CG223W-BKEAN 690592027990

47 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)No
Market positioningGraphics design
USB hub version2.0

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): No
Market positioning: Graphics design
USB hub version: 2.0

Brand: EIZO
Category: Monitor
Model: CG223W-BK
Part number: CG223W-BK
EAN / UPC: 690592027990, 4995047034964
Also known as: EIZO CG223W-BK computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

47 specifications in 7 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	270 cd/m²
Response time	6 ms
Supported graphics resolutions	720 x 400
Aspect ratio	16:10
Contrast ratio (typical)	950:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	24 - 82 kHz
Vertical scan range	47.5 - 86 Hz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	31 - 65 kHz
Digital vertical frequency	47.5 - 61 Hz
Pixel frequency	150 MHz

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Graphics design
Product colour	Black

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	2
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Swivel angle range	-172 - 172°
Tilt angle range	0 - 30°
Plug and Play	Yes
LED indicators	Stand-by

Weight & dimensions

Specification	Value
Width (with stand)	511 mm
Depth (with stand)	240.5 mm
Height (with stand)	347.5 mm
Weight (with stand)	9.6 kg
Width (without stand)	511 mm
Depth (without stand)	85 mm
Height (without stand)	333 mm
Weight (without stand)	6.6 kg

Other features

Specification	Value
TV tuner integrated	No
Display viewable area (HxV)	473.8 x 296.1 mm
Compliance industry standards	CUDO, TCO'03, TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, ICES-003-B, TÜV/S, VCCI-B, RoHS, WEEE
