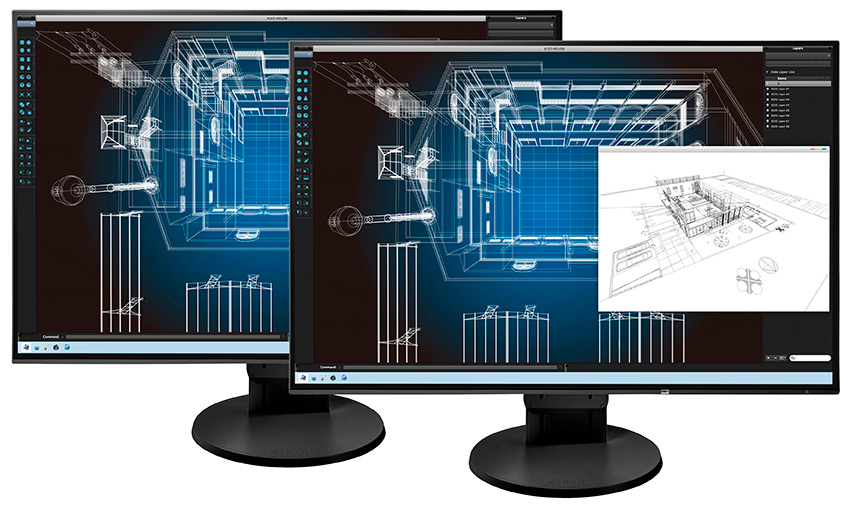

2 x EV2456 Swiss Edition
Model 2 x EV2456 Swiss EditionPart no. 22107
89 specifications Checked today
- Display61.2 cm (24.1")
- Resolution1920 x 1200 pixels
- Energy classA++
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 61.2 cm (24.1")
- Resolution
- 1920 x 1200 pixels
- Energy class
- A++
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- EIZO
- Category
- Monitor
- Model
- 2 x EV2456 Swiss Edition
- Part numbers
- 22107, 22108
- Also known as
- EIZO FlexScan 2 x EV2456 Swiss Edition computer monitor 61.2 cm (24.1") 1920 x 1200 pixels WUXGA LED Black
Specifications
89 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61.2 cm (24.1") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| Display brightness (typical) | 350 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Horizontal scan range | 31 - 81 kHz |
| Vertical scan range | 55 - 76 Hz |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
| Digital horizontal frequency | 31 - 76 kHz |
| Digital vertical frequency | 59 - 61 Hz |
| 3D | No |
| Separate H/V sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15.9 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | 0 - 344° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Annual energy consumption | 19 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 531 mm |
| Depth (with stand) | 190 mm |
| Height (with stand) | 351.4 mm |
| Weight (with stand) | 5.7 kg |
| Width (without stand) | 531 mm |
| Depth (without stand) | 45.5 mm |
| Height (without stand) | 341.9 mm |
| Weight (without stand) | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, USB Type-A |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Energy efficiency class (legacy scale) | A++ |
| i-Care technology | Yes |
| Certification | TCO Certified Generation 8, TÜV / Ergonomie, EPEAT (2018) (US), TÜV / GS, cTÜVus, TÜV / S, RCM, CE, CB, FCC-B, ICES-003-B (CAN), VCCI-B, RoHS, WEEE, CCC, EAC, EPA Energy Star |
