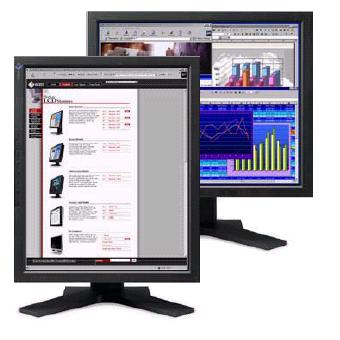

18.1IN LCD 1280X1024 82KHZ
Model 18.1IN LCD 1280X1024 82KHZPart no. L685K
20 specifications Checked today
- Display46 cm (18.1")
- Resolution1280 x 1024 pixels
- Plug and PlayYes
- Power consumption (typical)56 W
Overview
- Display
- 46 cm (18.1")
- Resolution
- 1280 x 1024 pixels
- Plug and Play
- Yes
- Power consumption (typical)
- 56 W
- Brand
- EIZO
- Category
- Monitor
- Model
- 18.1IN LCD 1280X1024 82KHZ
- Part number
- L685K
- Also known as
- EIZO 18.1IN LCD 1280X1024 82KHZ computer monitor 46 cm (18.1") 1280 x 1024 pixels
Specifications
20 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 46 cm (18.1") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 40 ms |
| Contrast ratio (typical) | 400:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.2805 |
| Horizontal scan range | 27 - 82 kHz |
| Vertical scan range | 50 - 85 Hz |
| Viewable size, horizontal | 35.9 cm |
| Viewable size, vertical | 28.7 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 2 x DVI-I 29 pin, USB 1.1: 1x upstream, 4 x downstream |
Ergonomics
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 56 W |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers & Utilities |
Other features
| Specification | Value |
|---|---|
| Audio system | No |
| Power requirements | 110-120/220-240V, 50.60Hz |
| Certification | TCO‘95, TUV/Ergonomics, TUV/GS, c-Tick, CE, CB, UL 1950, CSA C22.2 No.950, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA ENERGY STAR |
