Dell UltraSharp UP3017
Model UP3017Part no. 210-AJGTEAN 5715063464342
99 specifications Checked 3 days ago
- Display76.2 cm (30")
- Resolution2560 x 1600 pixels
- Energy classG
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningBusiness
Overview
- Display
- 76.2 cm (30")
- Resolution
- 2560 x 1600 pixels
- Energy class
- G
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Business
- Brand
- Dell
- Category
- Monitor
- Model
- UP3017
- Part numbers
- 210-AJGT, UP3017, Y7NWN
- EAN / UPC
- 5715063464342, 884116234050, 4058154113899, 4058154198469 +4 more
- Also known as
- DELL UltraSharp UP3017
Specifications
99 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 76.2 cm (30") |
| Display resolution | 2560 x 1600 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| Backlight type | LED |
| Display brightness (typical) | 350 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| SmartResponse | 6 ms |
| Pixel pitch | 0.251 x 0.251 mm |
| Pixel density | 101 ppi |
| Horizontal scan range | 30 - 113 kHz |
| Vertical scan range | 50 - 86 Hz |
| Colour gamut | 99% |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Mini DisplayPorts quantity | 1 |
| Audio input | No |
| Audio output | Yes |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |

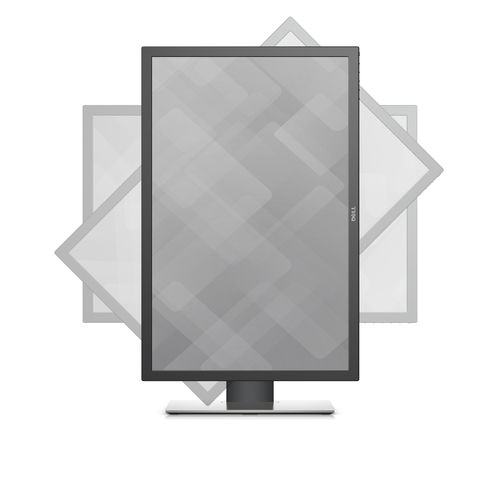

| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 21° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 36 kWh |
| Power consumption (typical) | 54 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 38.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.6 A |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 5000 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 686.9 mm |
| Depth (with stand) | 217 mm |
| Height (with stand) | 632.3 mm |
| Weight (with stand) | 9.59 kg |
| Width (without stand) | 686.9 mm |
| Depth (without stand) | 58 mm |
| Height (without stand) | 447.1 mm |
| Weight (without stand) | 6.49 kg |
| Bezel width (top) | 2.27 cm |
| Bezel width (bottom) | 2.35 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 528.1 mm |
| Package depth | 773.9 mm |
| Package height | 190 mm |
| Package weight | 13.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, DisplayPort, USB |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Doesn't contain | BRF, PVC |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| TV tuner integrated | No |
| Active display area (W x H) | 641.3 x 400.8 mm |
| Compliance certificates | RoHS |
| Certification | TCO |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
