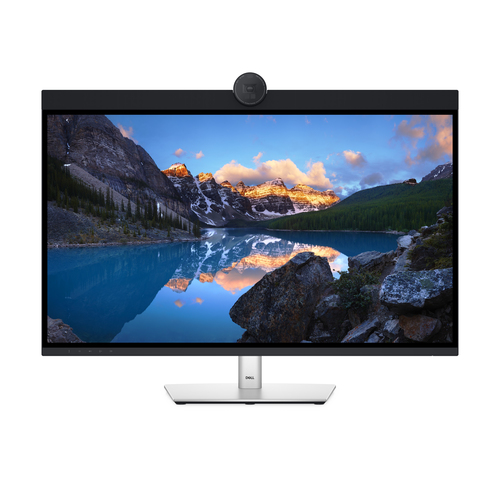

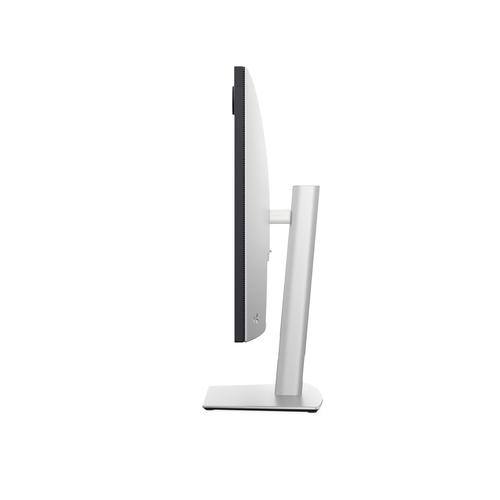

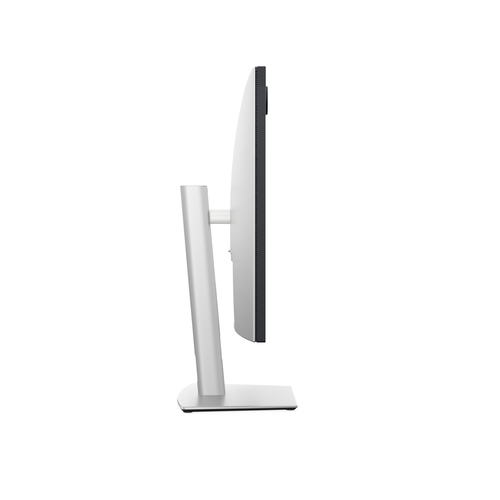

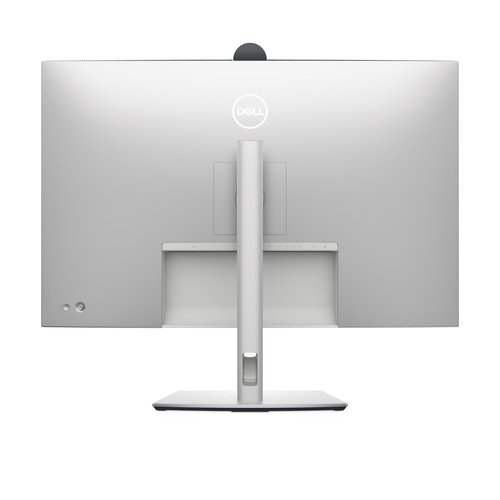

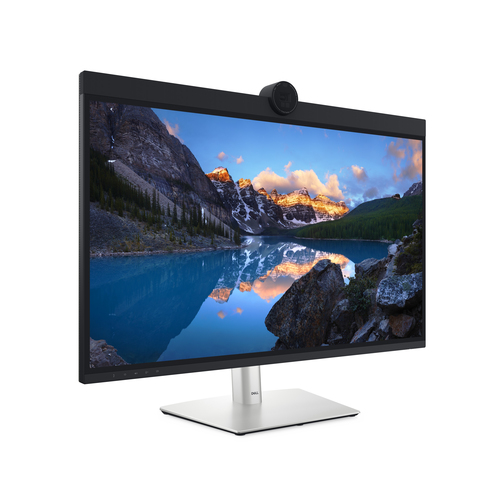

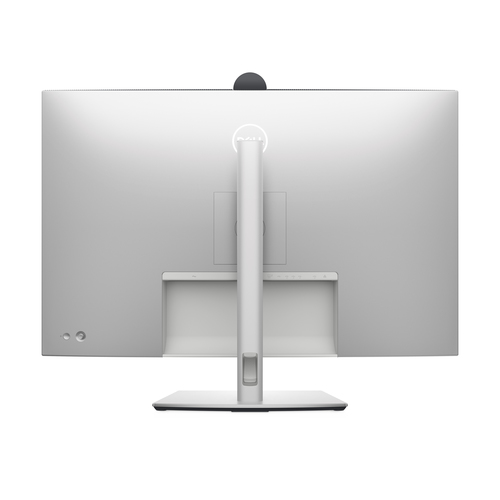

UltraSharp U3224KB computer monitor

81.3 cm (32") 6144 x 3456 pixels 6K Ultra HD LCD Black, Silver

Model U3224KBPart no. DELL-U3224KBEAN 884116442400

124 specifications Checked today

Display81.3 cm (32")
Resolution6144 x 3456 pixels
ColourBlack, Silver
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Power consumption (typical)56.73 W

See all specifications

Overview

Display: 81.3 cm (32")
Resolution: 6144 x 3456 pixels
Colour: Black, Silver
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Power consumption (typical): 56.73 W

Brand: Dell
Category: Monitor
Model: U3224KB
Part numbers: DELL-U3224KB, U3224KB
EAN / UPC: 884116442400
Also known as: DELL UltraSharp U3224KB computer monitor 81.3 cm (32") 6144 x 3456 pixels 6K Ultra HD LCD Black, Silver

Specifications

124 specifications in 15 groups

Display

Specification	Value
Display diagonal	81.3 cm (32")
Display resolution	6144 x 3456 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	6K Ultra HD
Panel type	IPS
Backlight type	LED
Display brightness (typical)	450 cd/m²
Response time	8 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	6144 x 3456, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 6016 x 3384
Supported video modes	480p, 576p, 720p, 1080i, 1080p, 2160p
Contrast ratio (typical)	2000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Response time (fast)	5 ms
Pixel pitch	0.1134 x 0.1134 mm
Pixel density	223 ppi
Horizontal scan range	30 - 220 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
Display diagonal (metric)	79.94 cm
Surface hardness	3H
Colour gamut standard	DCI-P3
Colour gamut	99%
sRGB coverage (typical)	100%
Heat dissipation	193.57 BTU/h

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes
Infrared (IR) sensor	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	14 W
Built-in camera	Yes
Megapixel (approx.)	8 MP
Built-in microphone	Yes

Design

Specification	Value
Product colour	Black, Silver

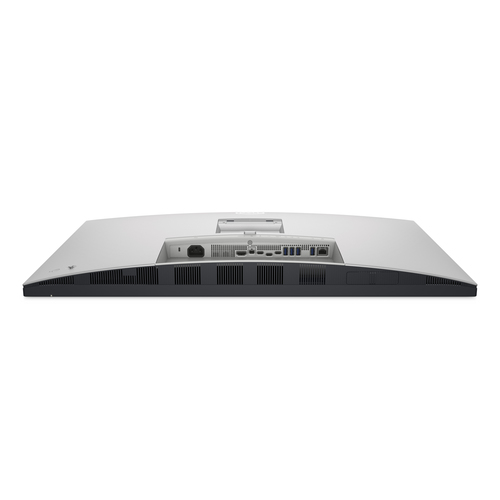

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB upstream port type	USB Type-C
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C downstream ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	140 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	2.1
DisplayPort version	1.4
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	2
Headphone out	No
Built-in KVM switch	Yes
HDCP	Yes
HDCP version	2.2

Network

Specification	Value
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	16 cm
Pivot	Yes
Pivot angle	-90 - 90°

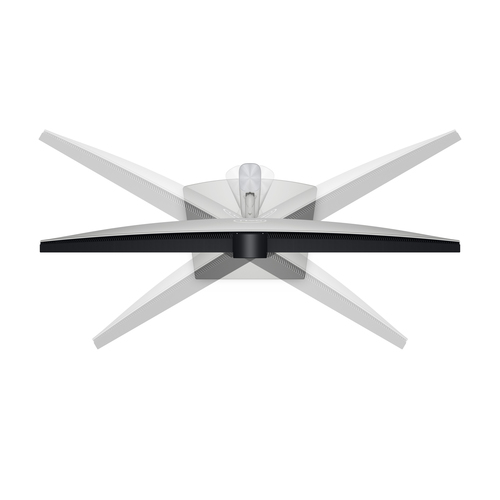

Swivelling	Yes
Swivel angle range	-30 - 30°

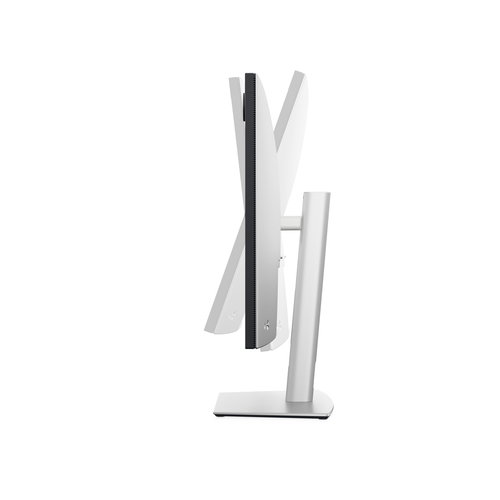

Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	56.73 W
Power consumption (standby)	0.26 W
Power consumption (max)	420 W
Power consumption (off)	0.25 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	4.6 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	717.4 mm
Depth (with stand)	237 mm
Height (with stand)	522.6 mm
Weight (with stand)	13 kg
Width (without stand)	717.4 mm
Depth (without stand)	66.3 mm
Height (without stand)	486.6 mm
Weight (without stand)	8.61 kg
Bezel width (side)	1.03 cm
Bezel width (top)	4.29 cm
Bezel width (bottom)	2.31 cm

Packaging data

Specification	Value
Package weight	17.7 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, Thunderbolt, USB Type-A to USB Type-C
Quick start guide	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO
Doesn't contain	Arsenic, Mercury, PVC/BFR
Sustainability compliance	Yes

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	10.2
Carbon emissions, energy usage (kg of CO2e)	552.9
Carbon emissions, logistics (kg of CO2e)	84.98
Carbon emissions, manufacturing (kg of CO2e)	484.92
PAIA version	PAIA 1.3.2, 2022
Total carbon emissions, standard deviation (kg of CO2e)	366
Total carbon footprint (kg of CO2e)	1133

Other features

Specification	Value
On/off switch	Yes
Picture-by-Picture (PbP)	Yes
Compliance certificates	RoHS
Proximity sensor	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
