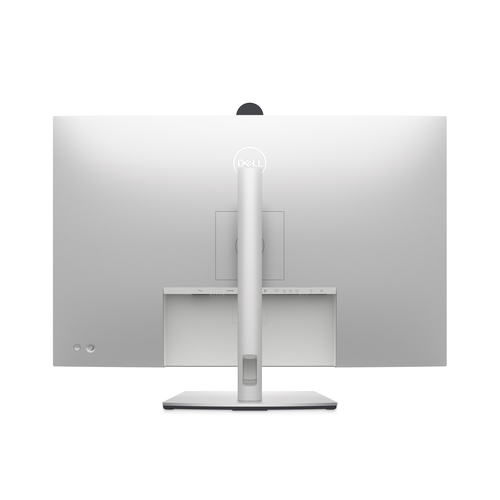

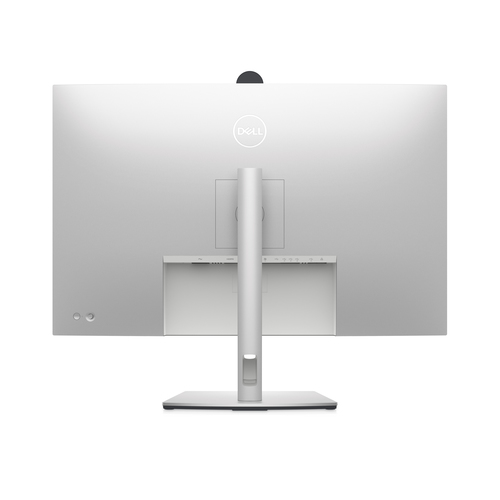

UltraSharp 32 4K Video Conferencing Monitor - U3223QZ

Model U3223QZPart no. DELL-U3223QZEAN 884116416975

131 specifications Checked today

Display80 cm (31.5")
Resolution3840 x 2160 pixels
Energy classF
ColourSilver
Flicker-free technologyYes
Market positioningBusiness

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 3840 x 2160 pixels
Energy class: F
Colour: Silver
Flicker-free technology: Yes
Market positioning: Business

Brand: Dell
Category: Monitor
Model: U3223QZ
Part numbers: DELL-U3223QZ, U3223QZ
EAN / UPC: 884116416975, 5397184567814, 5715063291733
Also known as: DELL UltraSharp 32 4K Video Conferencing Monitor - U3223QZ

Specifications

131 specifications in 16 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	TFT/IPS
Backlight type	LED
Display brightness (typical)	400 cd/m²
Response time	8 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported video modes	480p, 720p, 1080i, 1080p, 2160p
Contrast ratio (typical)	2000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Response time (fast)	5 ms
Pixel pitch	0.18159 x 0.18159 mm
Pixel density	140 ppi
Horizontal scan range	15 - 140 kHz
Vertical scan range	23 - 86 Hz
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
Display diagonal (metric)	80 cm
High Dynamic Range (HDR) supported	No
Surface hardness	3H
Colour gamut standard	DCI-P3
Colour gamut	98%
sRGB coverage (typical)	100%
Dell ComfortView technology	Yes

Performance

Specification	Value
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	14 W
Built-in camera	Yes
Megapixel (approx.)	8 MP
Built-in microphone	Yes

Design

Specification	Value
Market positioning	Business
Product colour	Silver
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Silver

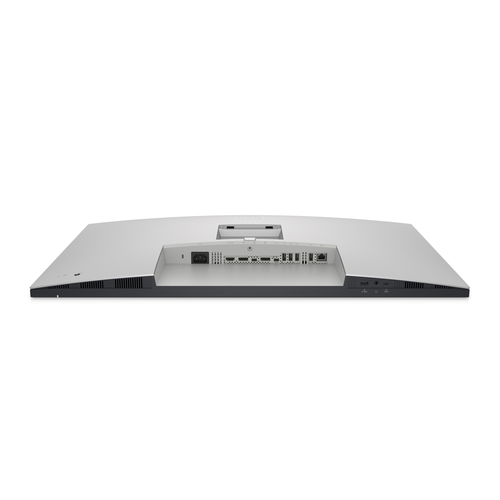

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB upstream port type	USB Type-C
Number of upstream ports	2
USB Type-A downstream ports quantity	5
USB Type-C downstream ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone out	Yes
Headphone outputs	1
Built-in KVM switch	Yes
HDCP	Yes
AC (power) in	Yes

Network

Specification	Value
Wi-Fi	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	No
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	30 kWh
Energy consumption (HDR) per 1000 hours	40 kWh
Power consumption (typical)	29.9 W
Power consumption (standby)	0.3 W
Power consumption (max)	240 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	712.6 mm
Depth (with stand)	230 mm
Height (with stand)	497.8 mm
Weight (with stand)	11.5 kg
Width (without stand)	712.6 mm
Depth (without stand)	58 mm
Height (without stand)	475.5 mm
Weight (without stand)	7.26 kg
Bezel width (side)	7.65 mm
Bezel width (top)	3.85 cm
Bezel width (bottom)	2.21 cm

Packaging data

Specification	Value
Package weight	16.1 kg
USB cable length	1 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	DisplayPort, USB Type-A to USB Type-C, USB Type-C to USB Type-C
Quick start guide	Yes
DisplayPort cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO
Doesn't contain	PVC/BFR

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	9.25
Carbon emissions, energy usage (kg of CO2e)	293.51
Carbon emissions, logistics (kg of CO2e)	79.9
Carbon emissions, manufacturing (kg of CO2e)	457.5
PAIA version	PAIA 1.3.1, 2021
Total carbon emissions, standard deviation (kg of CO2e)	216
Total carbon footprint (kg of CO2e)	841

Other features

Specification	Value
On/off switch	Yes
Picture-by-Picture (PbP)	Yes
Compliance certificates	RoHS
Heavy metals free	Hg (mercury)
Proximity sensor	Yes
RJ-45 ports quantity	1
Ethernet LAN (RJ-45) ports	0
Power management	Yes
Supplied AC adapter type	3840 x 2160

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
