UltraSharp 27 USB-C Hub Monitor - U2722DE

Model U2722DE

113 specifications Checked today

Display68.6 cm (27")
Resolution2560 x 1440 pixels
Energy classE
ColourSilver
Built-in speaker(s)No
Market positioningOffice

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Energy class: E
Colour: Silver
Built-in speaker(s): No
Market positioning: Office

Brand: Dell
Category: Monitor
Model: U2722DE
Also known as: DELL UltraSharp 27 USB-C Hub Monitor - U2722DE

Specifications

113 specifications in 14 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Backlight type	LED
Display brightness (typical)	350 cd/m²
Response time	8 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	2560 x 1440
Supported video modes	480i, 480p, 576p, 720p, 1080i, 1080p
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Response time (fast)	5 ms
Pixel pitch	0.2331 x 0.2331 mm
Pixel density	108.78 ppi
Horizontal scan range	30 - 90 kHz
Vertical scan range	49 - 76 Hz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Viewable size diagonal	68.5 cm
High Dynamic Range (HDR) supported	No
Colour gamut standard	sRGB
Colour gamut	100%

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Office
Product colour	Silver
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Silver

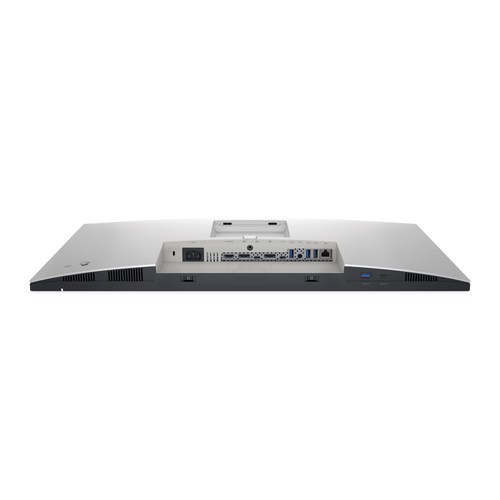

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB upstream port type	USB Type-C
Number of upstream ports	2
Number of USB Type-C upstream ports quantity	2
USB Type-A downstream ports quantity	4
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery up to	90 W
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	2
DisplayPort version	1.4
Audio output	Yes
Headphone connectivity	3.5 mm

Network

Specification	Value
Wi-Fi	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	15 cm

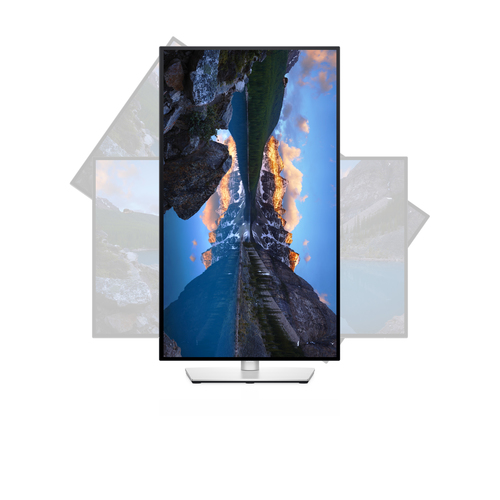

Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°

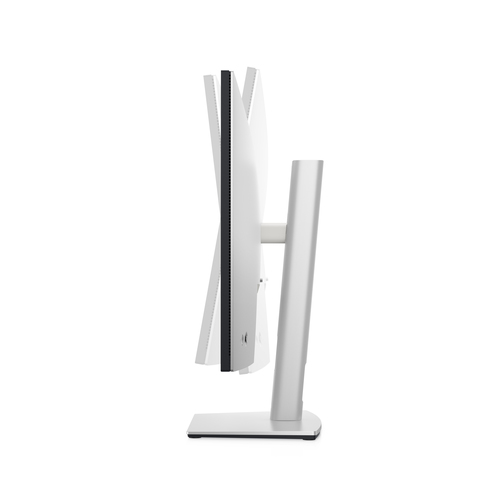

Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	20 kWh
Power consumption (typical)	20.4 W
Power consumption (standby)	0.3 W
Power consumption (max)	197 W
Power consumption (average)	20.4 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	20.32 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	611.3 mm
Depth (with stand)	185 mm
Height (with stand)	535.1 mm
Weight (with stand)	6.59 kg
Width (without stand)	611.3 mm
Depth (without stand)	49.5 mm
Height (without stand)	352 mm
Weight (without stand)	4.78 kg
Bezel width (side)	7.3 mm
Bezel width (top)	7.3 mm
Bezel width (bottom)	9.05 mm

Packaging data

Specification	Value
Package weight	10 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, HDMI, USB Type-C
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	3.22
Carbon emissions, energy usage (kg of CO2e)	210.9
Carbon emissions, logistics (kg of CO2e)	50.8
Carbon emissions, manufacturing (kg of CO2e)	378.08
PAIA version	PAIA 1.2.13, 2021
Total carbon emissions, standard deviation (kg of CO2e)	107
Total carbon footprint (kg of CO2e)	643

Other features

Specification	Value
Heavy metals free	Hg (mercury)
Ethernet LAN (RJ-45) ports	1

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
