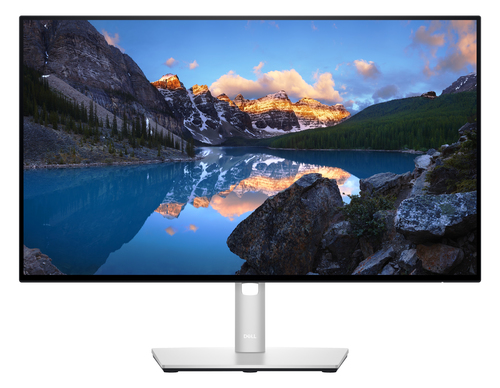

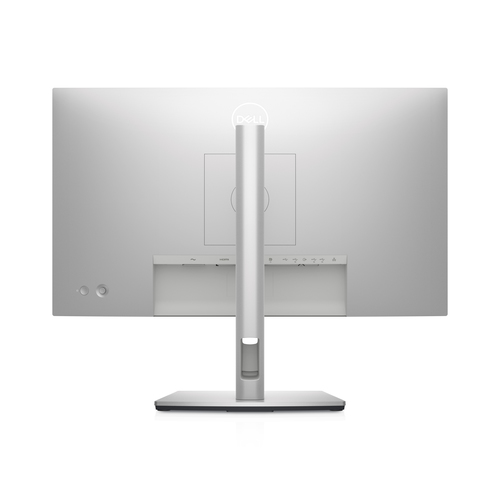

UltraSharp 24 USB-C Hub Monitor – U2422HE

Model U2422HE

105 specifications Checked today

Display61 cm (24")
Resolution1920 x 1080 pixels
Energy classC
ColourSilver
NVIDIA G-SYNCNo
Market positioningBusiness

See all specifications

Overview

Display: 61 cm (24")
Resolution: 1920 x 1080 pixels
Energy class: C
Colour: Silver
NVIDIA G-SYNC: No
Market positioning: Business

Brand: Dell
Category: Monitor
Model: U2422HE
Also known as: DELL UltraSharp 24 USB-C Hub Monitor – U2422HE

Specifications

105 specifications in 14 groups

Display

Specification	Value
Display diagonal	61 cm (24")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	8 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 900, 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Response time (fast)	5 ms
Pixel pitch	0.2745 x 0.2745 mm
Pixel density	92.53 ppi
Horizontal scan range	30 - 83 kHz
Vertical scan range	56 - 76 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Viewable size diagonal	60.5 cm
High Dynamic Range (HDR) supported	No
Colour gamut standard	sRGB
Colour gamut	100%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Silver
Front bezel colour	Black
Feet colour	Silver

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB upstream port type	USB Type-C
Number of upstream ports	2
Number of USB Type-C upstream ports quantity	2
USB Type-A downstream ports quantity	4
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery up to	90 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	2
DisplayPort version	1.4
Audio output	Yes
Charging port type	USB Type-C

Network

Specification	Value
Wi-Fi	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 21°

Power

Specification	Value
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	12 kWh
Power consumption (typical)	11.8 W
Power consumption (standby)	0.3 W
Power consumption (max)	210 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	14.8 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.1 A
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	537.6 mm
Depth (with stand)	179.6 mm
Height (with stand)	496 mm
Weight (with stand)	5.71 kg
Width (without stand)	537.6 mm
Depth (without stand)	48.5 mm
Height (without stand)	310.7 mm
Weight (without stand)	3.96 kg
Bezel width (side)	5.3 mm
Bezel width (top)	5.3 mm
Bezel width (bottom)	8.95 mm

Packaging data

Specification	Value
Package weight	8.3 kg

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	2.67
Carbon emissions, energy usage (kg of CO2e)	131
Carbon emissions, logistics (kg of CO2e)	42.6
Carbon emissions, manufacturing (kg of CO2e)	362.45
PAIA version	1.2.13, 2021
Total carbon emissions, standard deviation (kg of CO2e)	99
Total carbon footprint (kg of CO2e)	538

Other features

Specification	Value
RJ-45 ports quantity	1
Ethernet LAN (RJ-45) ports	0

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
