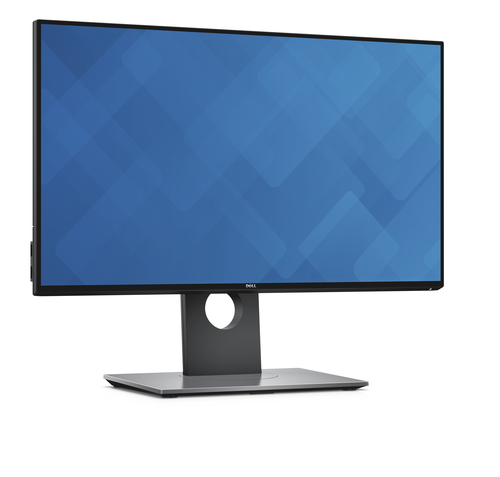

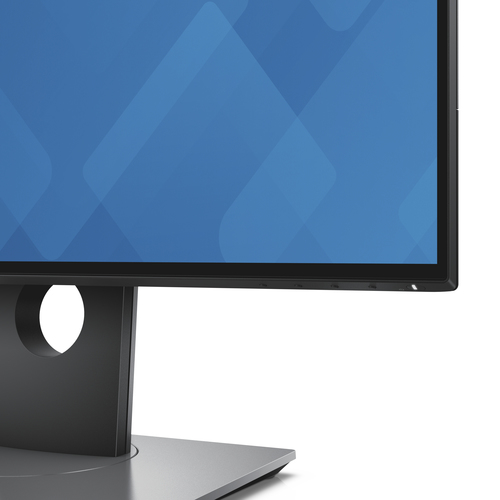

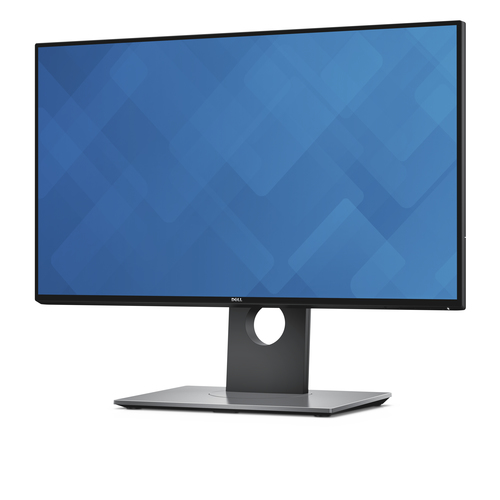

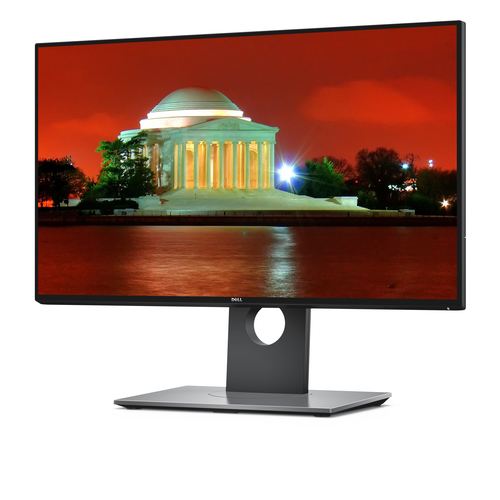

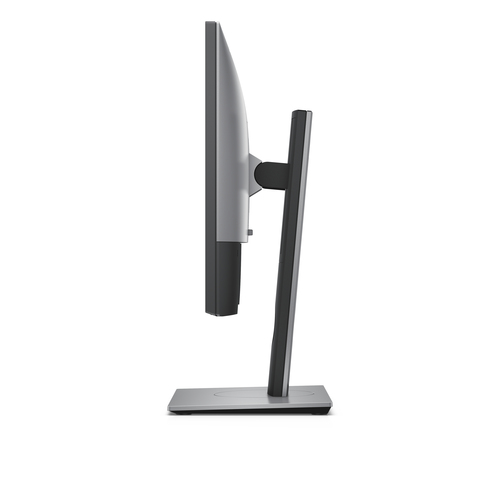

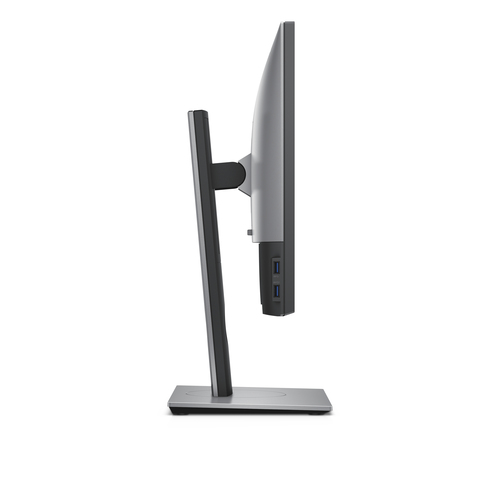

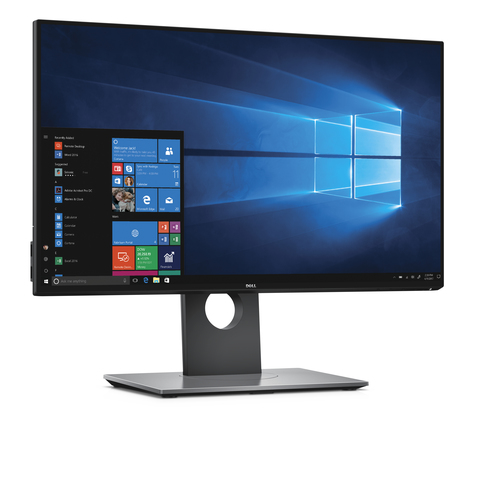

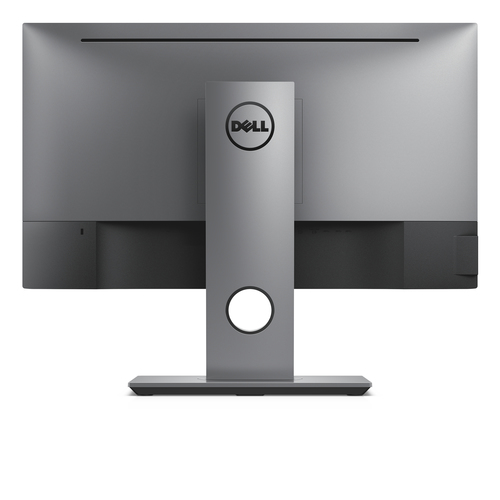

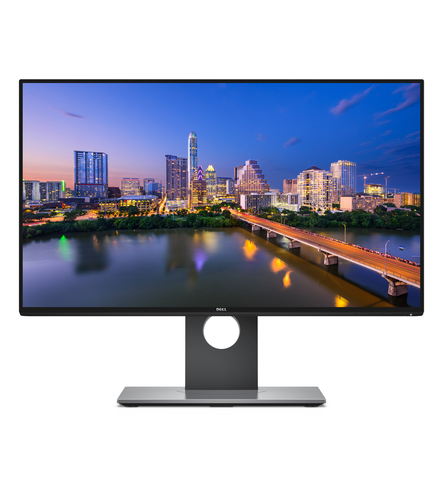

UltraSharp U2417H computer monitor
60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black
Model U2417HPart no. U2417H-WOSTEAN 7426787460494
106 specifications Checked today
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- Energy classA
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningBusiness
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Energy class
- A
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Business
- Brand
- Dell
- Category
- Monitor
- Model
- U2417H
- Part numbers
- U2417H-WOST, 210-AOXJ, 210-AHJO, V7D3N, U2417H, 210-AHJK +6 more
- EAN / UPC
- 7426787460494, 4058154047583, 5397063622139, 884116202769 +5 more
- Also known as
- DELL UltraSharp U2417H computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black
Specifications
106 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Backlight type | LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 8 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| SmartResponse | 6 ms |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Viewable size diagonal | 60.5 cm |
| DDC/CI | Yes |
| Colour gamut | 99% |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Feet colour | Black, Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Mini DisplayPorts quantity | 1 |
| AC (power) in | Yes |
| Mobile High-Definition Link (MHL) | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | Yes |
| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 21° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (max) | 68 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 15.6 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.6 A |
| Annual energy consumption | 28 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 188 mm |
| Depth (with stand) | 537.6 mm |
| Height (with stand) | 485.3 mm |
| Weight (with stand) | 6.3 kg |
| Width (without stand) | 537.6 mm |
| Depth (without stand) | 45.2 mm |
| Height (without stand) | 314.3 mm |
| Weight (without stand) | 3.18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 364 mm |
| Package depth | 595.1 mm |
| Package height | 173 mm |
| Package weight | 7.35 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | DisplayPort, USB |
| Manual | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Energy efficiency class (legacy scale) | A |
| Certification | TCO |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 595.1 mm |
| Master (outer) case height | 173 mm |
| Master (outer) case gross weight | 7.71 kg |
| Master (outer) cases per pallet | 42 pc(s) |
| Products per pallet | 42 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Layers per pallet | 7 pc(s) |
| Pallet gross width | 110.2 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 123.1 cm |
| Pallet gross weight | 323.9 kg |
