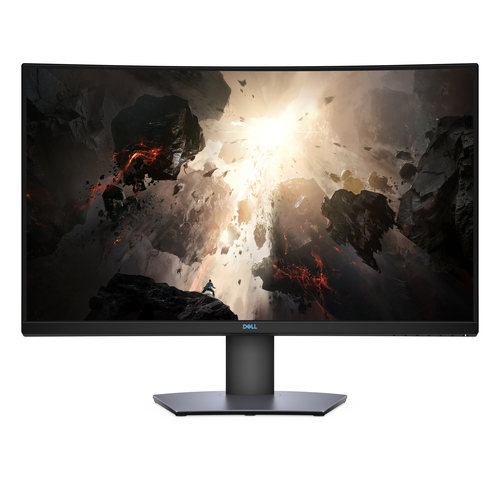

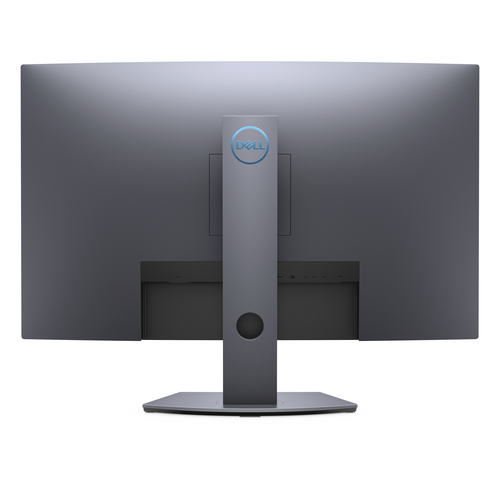

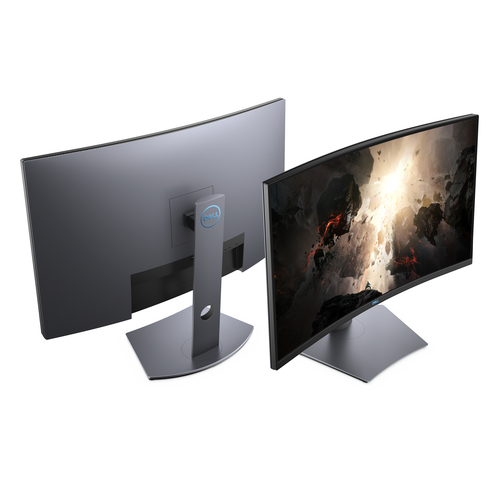

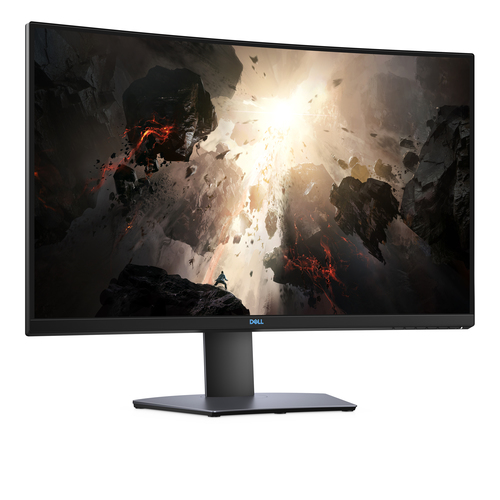

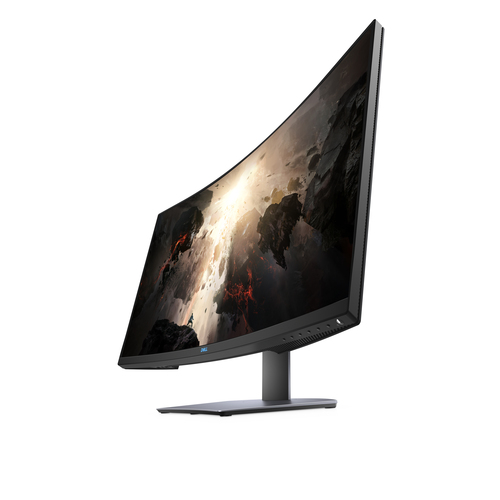

S3220DGF computer monitor

80 cm (31.5") 2560 x 1440 pixels Quad HD LCD Black

Model S3220DGFPart no. 210-ATVCEAN 884116349280

116 specifications Checked today

Display80 cm (31.5")
Resolution2560 x 1440 pixels
Energy classA
ColourBlack
NVIDIA G-SYNCNo
Market positioningGaming

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 2560 x 1440 pixels
Energy class: A
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Gaming

Brand: Dell
Category: Monitor
Model: S3220DGF
Part numbers: 210-ATVC, DELL-3220DGF, S3220DGF
EAN / UPC: 884116349280, 8595604101069, 5397184200162
Also known as: DELL S3220DGF computer monitor 80 cm (31.5") 2560 x 1440 pixels Quad HD LCD Black

Specifications

116 specifications in 16 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Quad HD
Panel type	VA
Backlight type	LED
Display brightness (typical)	400 cd/m²
Response time	4 ms

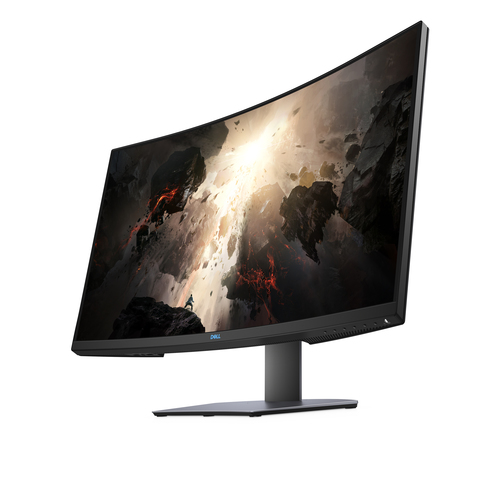

Screen shape	Curved
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1440
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p
Contrast ratio (typical)	3000:1
Maximum refresh rate	165 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.2724 x 0.2724 mm
Pixel density	93 ppi
Horizontal scan range	30 - 250 kHz
Vertical scan range	48 - 165 Hz
Viewable size, horizontal	69.7 cm
Viewable size, vertical	39.2 cm
Viewable size diagonal	80 cm
High Dynamic Range (HDR) supported	Yes
DDC/CI	Yes
sRGB coverage (typical)	99.7%
3D	No
DCI-P3 coverage	89.2%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black

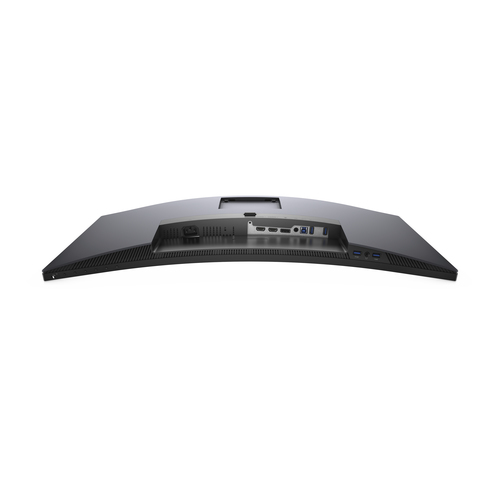

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.2
Audio input	No
Audio output	Yes
Headphone out	Yes
Headphone outputs	1
HDCP	Yes
AC (power) in	Yes

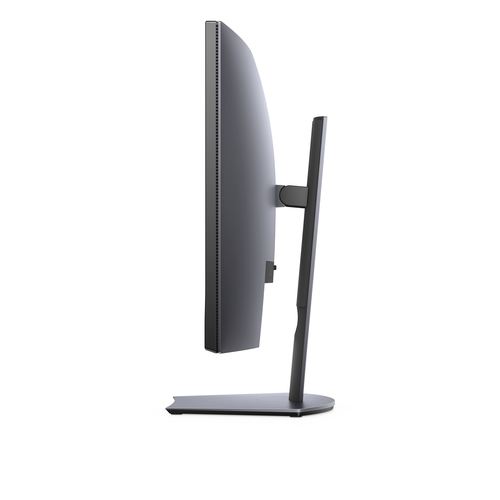

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	15 cm
Swivelling	Yes
Swivel angle range	-30 - 30°

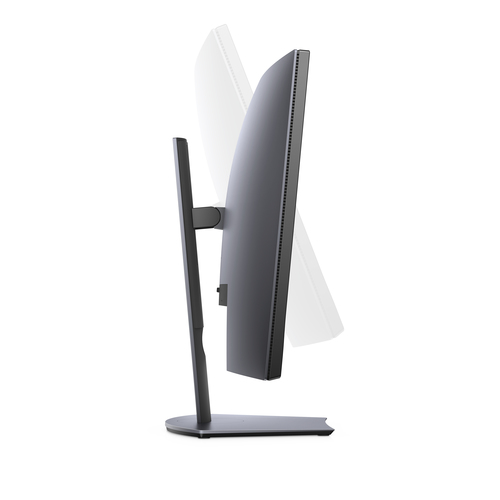

Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	39 W
Power consumption (standby)	0.3 W
Power consumption (max)	100 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	28.34 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A+++ to D
Current rating	2 A
Annual energy consumption	48 kWh

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	709.1 mm
Depth (with stand)	249.6 mm
Height (with stand)	618.2 mm
Weight (with stand)	10.4 kg
Width (without stand)	709.1 mm
Depth (without stand)	59.8 mm
Height (without stand)	424.9 mm
Weight (without stand)	7.63 kg
Bezel width (side)	8.1 mm
Bezel width (top)	8.1 mm
Bezel width (bottom)	2.46 cm

Packaging data

Specification	Value
Package width	525 mm
Package depth	939.8 mm
Package height	177 mm
Package weight	15.5 kg
Package material	Corrugated cardboard, Paper molded pulp

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Compliance certificates	RoHS
Energy efficiency class (legacy scale)	A

Recycling data

Specification	Value
Corrugated cardboard content per package	3.98 kg
Paper molded pulp content per package	600 g
Other materials content per package	110 g

Brand-specific features

Specification	Value
Dell Display Manager (DDM) compatibility	Yes

Logistics data

Specification	Value
Products per pallet	12 pc(s)
Layers per pallet	2 pc(s)
Pallet gross width	108.4 cm
Pallet gross length	95 cm
Pallet gross weight	186.4 kg
Harmonized System (HS) code	85285210
