S Series S2522HG computer monitor

62.2 cm (24.5") 1920 x 1080 pixels Full HD LCD Black

Model S2522HGPart no. DELL-S2522HGEAN 5397184505021

111 specifications Checked today

Display62.2 cm (24.5")
Resolution1920 x 1080 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCYes
Built-in speaker(s)No

See all specifications

Overview

Display: 62.2 cm (24.5")
Resolution: 1920 x 1080 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: Yes
Built-in speaker(s): No

Brand: Dell
Category: Monitor
Model: S2522HG
Part numbers: DELL-S2522HG, S2522HG
EAN / UPC: 5397184505021, 884116390794, 5715063782774
Also known as: DELL S Series S2522HG computer monitor 62.2 cm (24.5") 1920 x 1080 pixels Full HD LCD Black

Specifications

111 specifications in 15 groups

Display

Specification	Value
Display diagonal	62.2 cm (24.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
Backlight type	LED
Display brightness (typical)	400 cd/m²
Response time	1 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Maximum refresh rate	240 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Response time (fast)	4 ms
Pixel pitch	0.2832 x 0.2802 mm
Pixel density	90 ppi
Horizontal scan range	30 - 255 kHz
Vertical scan range	48 - 240 Hz
Viewable size, horizontal	54.4 cm
Viewable size, vertical	30.3 cm
Viewable size diagonal	62.2 cm
Display diagonal (metric)	62.2 cm
High Dynamic Range (HDR) supported	No
Colour depth	8 bit
sRGB coverage (typical)	99%

Performance

Specification	Value
NVIDIA G-SYNC	Yes
AMD FreeSync	Yes
NVIDIA G-SYNC type	G-SYNC
AMD FreeSync type	FreeSync Premium
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Black

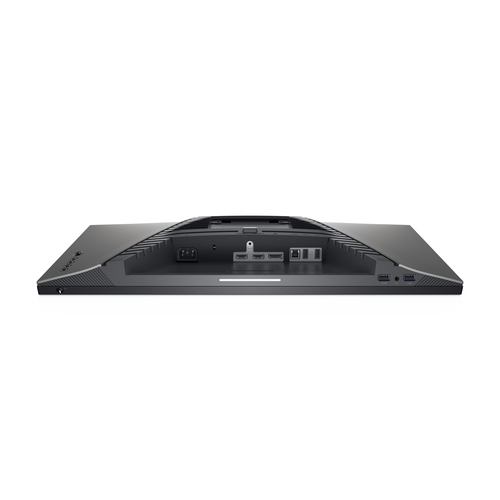

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	0
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Yes
AC (power) in	Yes

Network

Specification	Value
Wi-Fi	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	13 cm
Pivot	Yes
Pivot angle	-90 - 90°

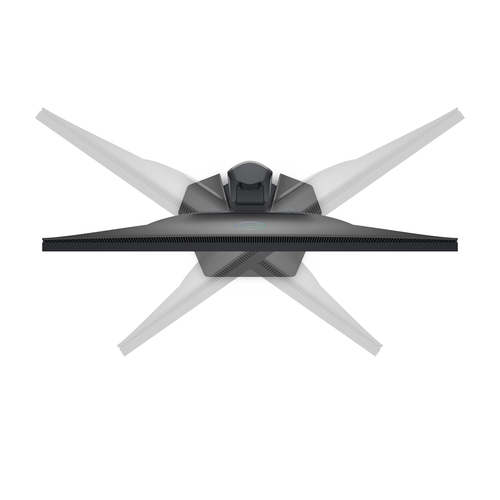

Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	17 kWh
Power consumption (typical)	16.8 W
Power consumption (standby)	0.3 W
Power consumption (max)	72 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	555.4 mm
Depth (with stand)	200.3 mm
Height (with stand)	505.8 mm
Weight (with stand)	9.44 kg
Width (without stand)	555.4 mm
Depth (without stand)	68.4 mm
Height (without stand)	327.2 mm
Weight (without stand)	3.72 kg
Bezel width (side)	5.83 mm
Bezel width (top)	5.84 mm
Bezel width (bottom)	1.88 cm

Packaging data

Specification	Value
Package width	138.9 mm
Package depth	764.8 mm
Package height	454.9 mm
Package weight	8.54 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Quick start guide	Yes

Sustainability

Specification	Value
Doesn't contain	PVC/BFR

Other features

Specification	Value
Compliance certificates	RoHS
Heavy metals free	Hg (mercury)
Ethernet LAN (RJ-45) ports	0

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
