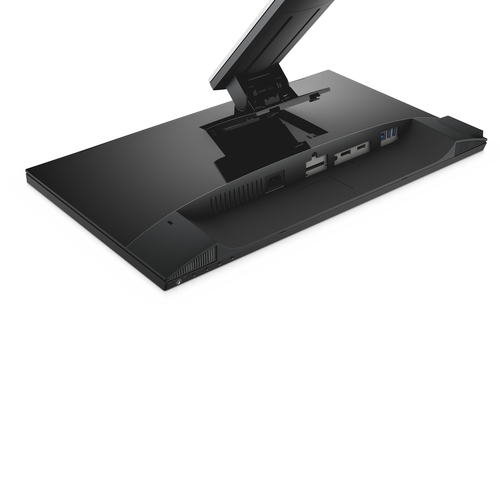

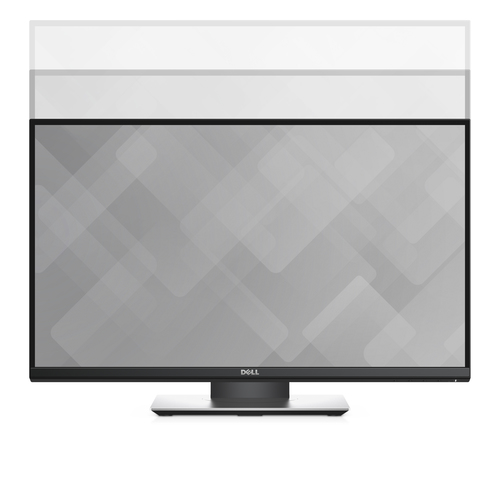

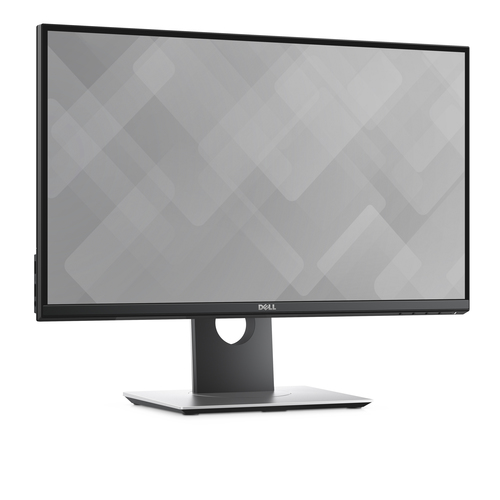

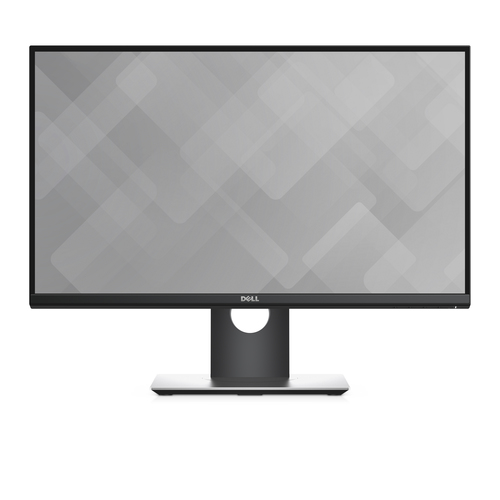

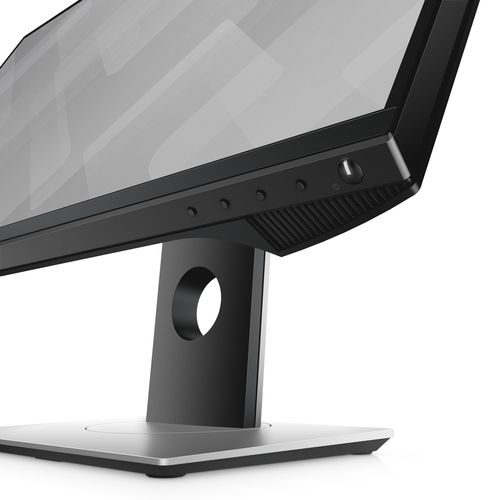

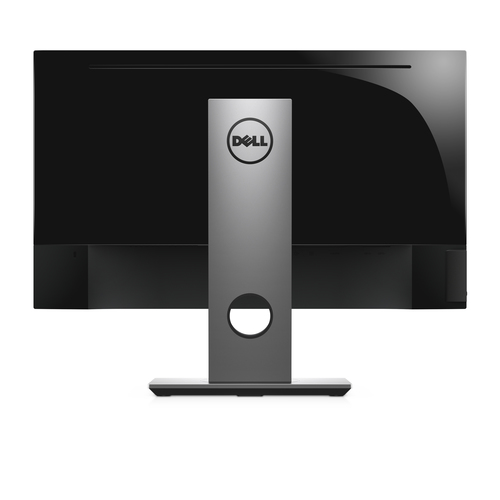

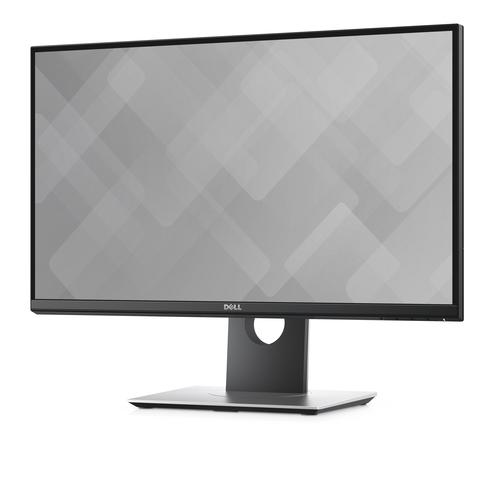

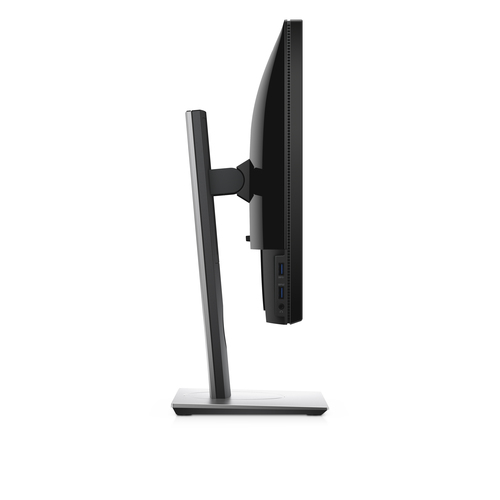

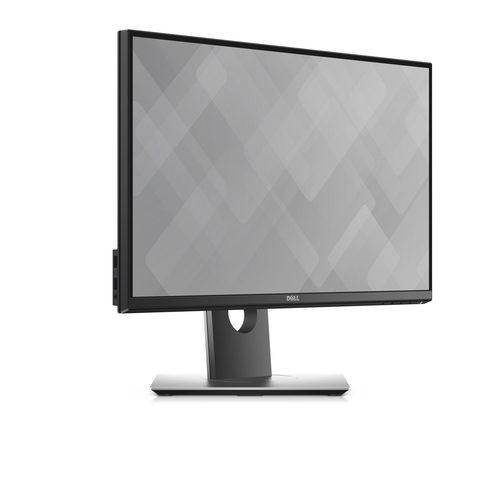

S Series S2417DG computer monitor

60.5 cm (23.8") 2560 x 1440 pixels Quad HD LCD Black

Model S2417DGPart no. 210-AIZSEAN 5706998844286

119 specifications Checked today

Overview

Brand: Dell
Category: Monitor
Model: S2417DG
Part numbers: 210-AIZS, S2417DG, 210-AJWM, VGGY4
EAN / UPC: 5706998844286, 884116234494, 4058154117224, 5711783357971 +1 more
Also known as: DELL S Series S2417DG computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LCD Black

119 specifications in 15 groups

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	2560 x 1440 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Quad HD
Panel type	TN
Backlight type	LED
Display brightness (typical)	350 cd/m²
Response time	1 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	2560 x 1440
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Contrast ratio (typical)	1000:1
Maximum refresh rate	165 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.2058 x 0.2058 mm
Pixel density	123 ppi
Horizontal scan range	30 - 166 kHz
Vertical scan range	30 - 160 Hz
Viewable size diagonal	60.5 cm
Colour gamut	82%
3D	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Audio output	Yes
Headphone out	Yes
Headphone outputs	1
AC (power) in	Yes

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	13 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, German, English, Spanish, French, Japanese, Portuguese, Russian
Plug and Play	Yes
LED indicators	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m

Specification	Value
Package width	190 mm
Package depth	627.1 mm
Package height	398 mm
Package weight	8.21 kg
Package material	Corrugated cardboard, Expanded polyethylene (EPE) foam, Polyethylene (PE)

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Active display area (W x H)	526.85 x 296.35 mm
Compliance certificates	RoHS
Energy efficiency class (legacy scale)	B

Specification	Value
Corrugated cardboard content per package	1.95 kg
Expanded polyethylene (EPE) foam content per package	6.5 g
Polyethylene (PE) content per bag	52.85 g

Specification	Value
Dell Display Manager (DDM) compatibility	Yes

Specification	Value
Products per master (outer) case	1 pc(s)
Master (outer) case width	190 mm
Master (outer) case length	627.1 mm
Master (outer) case height	398 mm
Master (outer) case gross weight	8.21 kg
Master (outer) cases per pallet	20 pc(s)
Products per pallet	20 pc(s)
Products per pallet layer	10 pc(s)
Layers per pallet	2 pc(s)
Pallet gross width	101.6 cm
Pallet gross length	121.9 cm
Pallet gross height	91.6 cm
Pallet gross weight	186 kg
Harmonized System (HS) code	85285210
