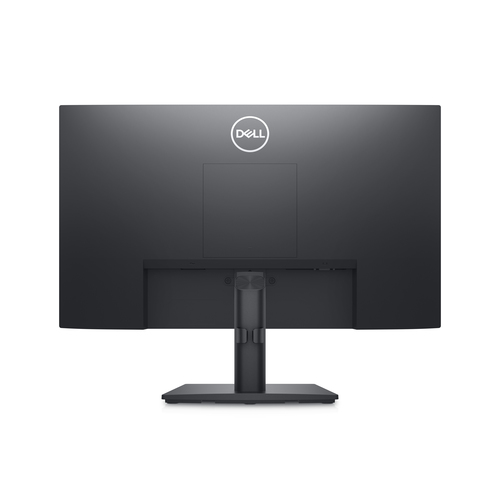

E Series E2223HV computer monitor

54.5 cm (21.4") 1920 x 1080 pixels Full HD LCD Black

Model E2223HVPart no. DELL-E2223HVEAN 884116420057

109 specifications Checked today

Display54.5 cm (21.4")
Resolution1920 x 1080 pixels
Energy classD
ColourBlack
NVIDIA G-SYNCNo
Market positioningOffice

See all specifications

Overview

Display: 54.5 cm (21.4")
Resolution: 1920 x 1080 pixels
Energy class: D
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Office

Brand: Dell
Category: Monitor
Model: E2223HV
Part numbers: DELL-E2223HV, E2223HV
EAN / UPC: 884116420057, 5397184656839, 5715063783139
Also known as: DELL E Series E2223HV computer monitor 54.5 cm (21.4") 1920 x 1080 pixels Full HD LCD Black

Specifications

109 specifications in 17 groups

Display

Specification	Value
Display diagonal	54.5 cm (21.4")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	VA
LED backlight	Yes
Backlight type	LED
Display brightness (typical)	250 cd/m²
Response time	12 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	3000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Response time (fast)	8 ms
Pixel pitch	0.249 x 0.249 mm
Pixel density	103 ppi
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	47.9 cm
Viewable size, vertical	26 cm
Display diagonal (metric)	54.48 cm
High Dynamic Range (HDR) supported	No
Surface hardness	3H
NTSC coverage (typical)	72%
Heat dissipation	64.79 BTU/h
Heat dissipation (typical)	41.36 BTU/h

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Office
Product colour	Black
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
Number of upstream ports	0
VGA (D-Sub) ports quantity	1
HDMI	No
DisplayPorts quantity	0
Headphone out	No
AC (power) in	Yes

Network

Specification	Value
Wi-Fi	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Height adjustment	No
Pivot	No
Swivelling	No
Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
LED indicators	Power

Power

Specification	Value
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	12 kWh
Energy consumption (HDR) per 1000 hours	12 kWh
Power consumption (typical)	12.1 W
Power consumption (standby)	0.3 W
Power consumption (max)	19 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	504.3 mm
Depth (with stand)	171 mm
Height (with stand)	384.2 mm
Weight (with stand)	2.9 kg
Width (without stand)	504.3 mm
Depth (without stand)	49.6 mm
Height (without stand)	295.4 mm
Weight (without stand)	2.26 kg
Bezel width (side)	1.28 cm
Bezel width (top)	1.28 cm
Bezel width (bottom)	1.69 cm

Packaging data

Specification	Value
Package weight	4.01 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, VGA
Quick start guide	No
Bundled software	Dell ProSupport

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO
Doesn't contain	PVC/BFR

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	1.99
Carbon emissions, energy usage (kg of CO2e)	134.96
Carbon emissions, logistics (kg of CO2e)	34.36
Carbon emissions, manufacturing (kg of CO2e)	326.19
PAIA version	PAIA 1.3.0, 2021
Total carbon emissions, standard deviation (kg of CO2e)	119
Total carbon footprint (kg of CO2e)	498

Other features

Specification	Value
On/off switch	Yes
Compliance certificates	RoHS
Heavy metals free	Hg (mercury)
Ethernet LAN (RJ-45) ports	0
Certification	TCO Certified Displays 9

Brand-specific features

Specification	Value
Dell Display Manager (DDM) compatibility	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
