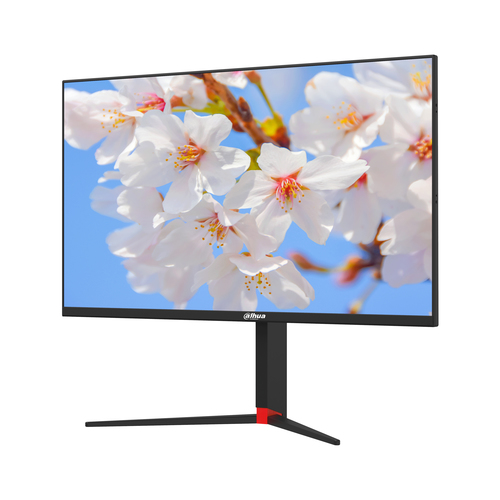

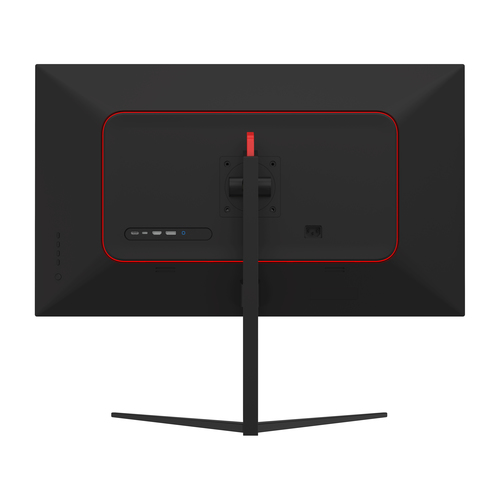

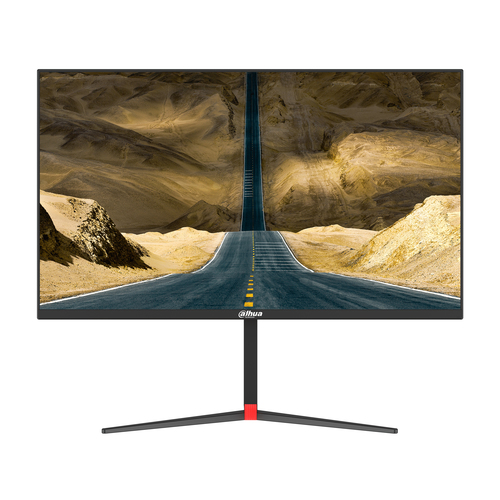

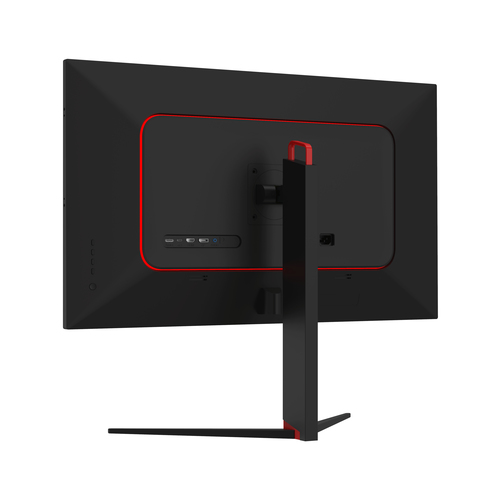

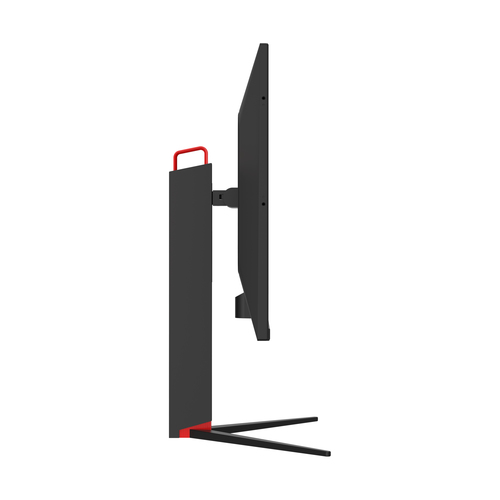

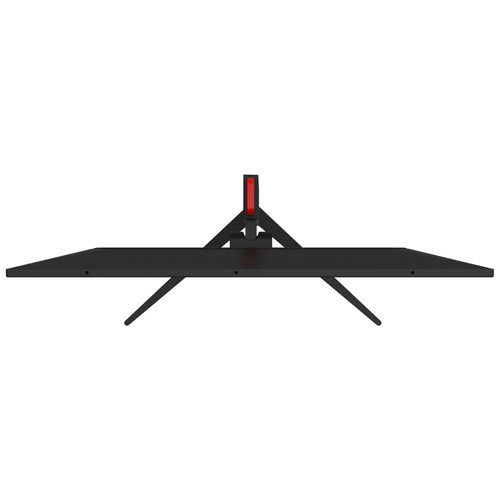

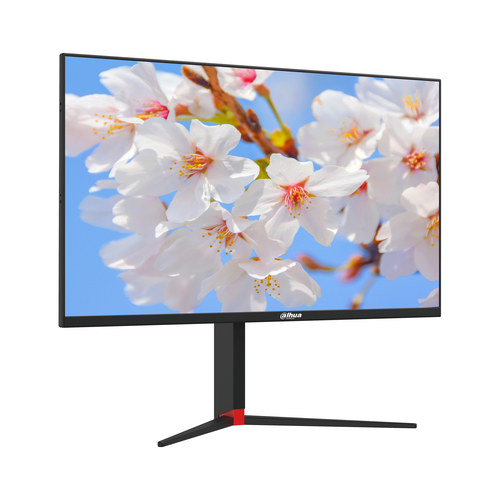

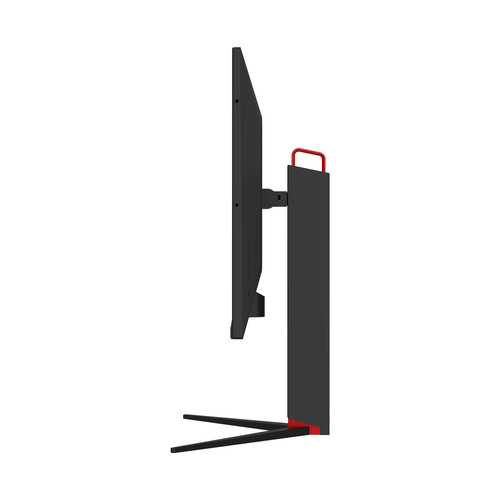

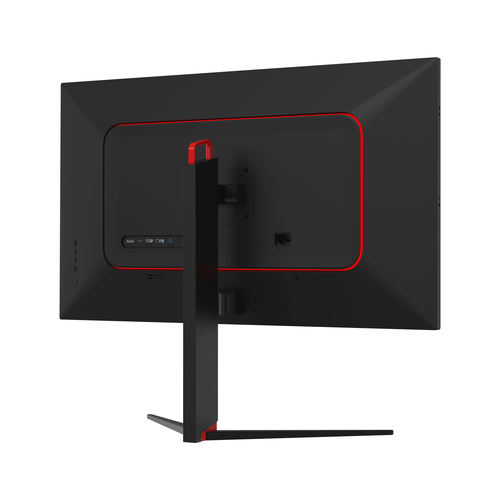

LM32-P301A computer monitor
80 cm (31.5") 2560 x 1440 pixels 2K Ultra HD LCD Black, Red
Model LM32-P301APart no. DHI-LM32-P301AEAN 6923172580672
59 specifications Checked today
- Display80 cm (31.5")
- Resolution2560 x 1440 pixels
- Energy classF
- ColourBlack, Red
- Market positioningBusiness
- Built-in USB hubYes
Overview
- Display
- 80 cm (31.5")
- Resolution
- 2560 x 1440 pixels
- Energy class
- F
- Colour
- Black, Red
- Market positioning
- Business
- Built-in USB hub
- Yes
- Brand
- Dahua Technology
- Category
- Monitor
- Model
- LM32-P301A
- Part number
- DHI-LM32-P301A
- EAN / UPC
- 6923172580672
- Also known as
- Dahua Technology LM32-P301A computer monitor 80 cm (31.5") 2560 x 1440 pixels 2K Ultra HD LCD Black, Red
Specifications
59 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 2560 x 1440 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | 2K Ultra HD |
| Panel type | IPS |
| Backlight type | Edge LED |
| Display brightness (typical) | 350 cd/m² |
| Response time | 4 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 100% |
| Adobe RGB coverage | 92% |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black, Red |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB Type-C downstream ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 10 cm |
| Pivot | Yes |
| Pivot angle | 0 - 180° |
| Swivelling | Yes |
| Tilt angle range | -15 - 2° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 30 kWh |
| Power consumption (typical) | 52 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 145 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 718.6 mm |
| Depth (without stand) | 45.1 mm |
| Height (without stand) | 422.1 mm |
| Weight (without stand) | 7.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 821 mm |
| Package depth | 530 mm |
| Package height | 183 mm |
| Package weight | 10.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI |
| Power adapter included | Yes |
| HDMI cable length | 1.5 m |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
