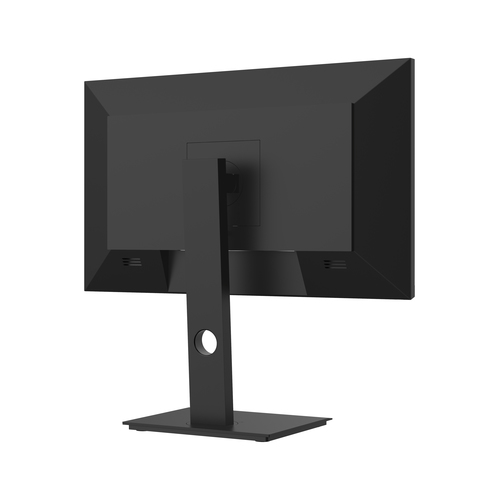

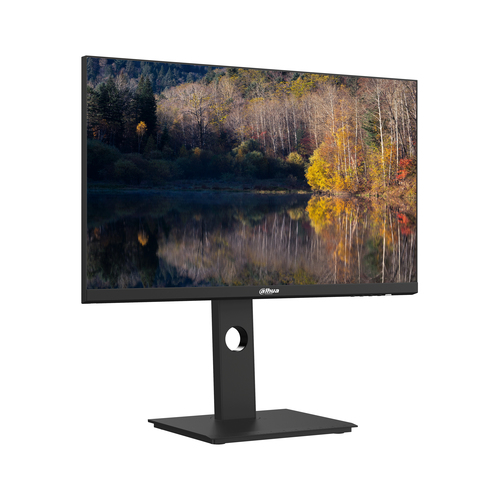

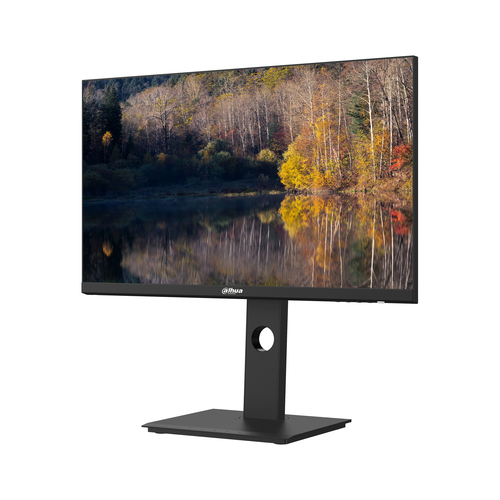

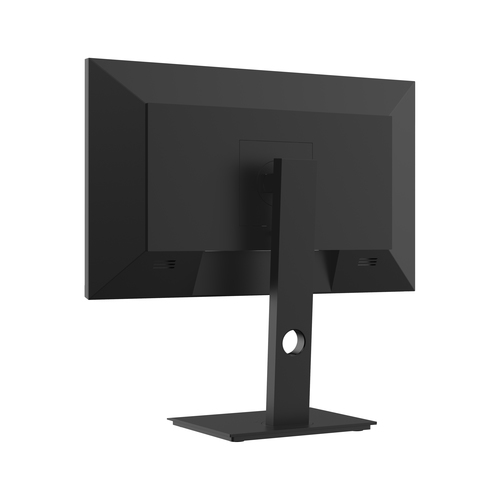

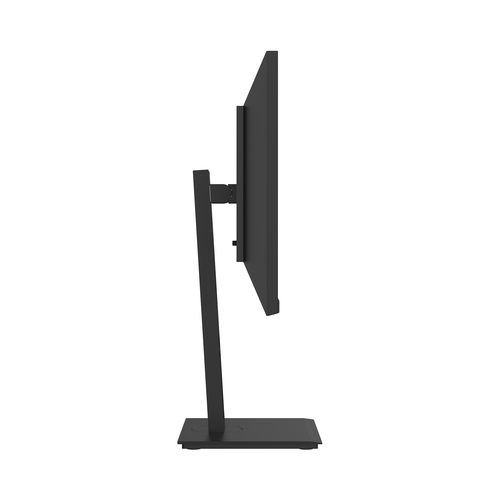

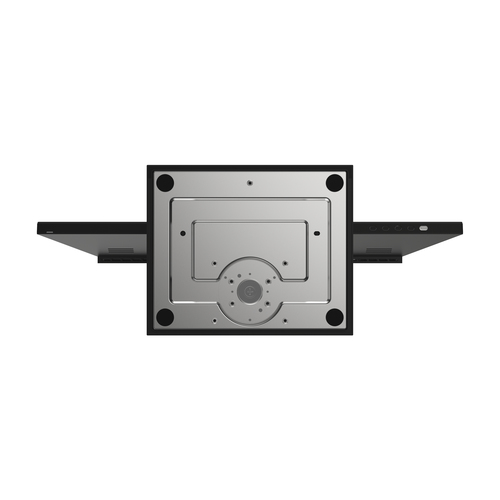

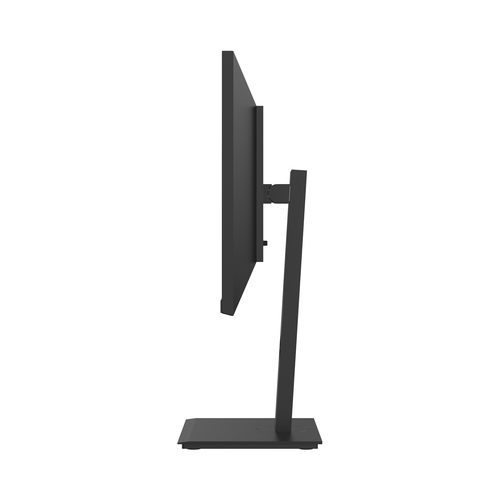

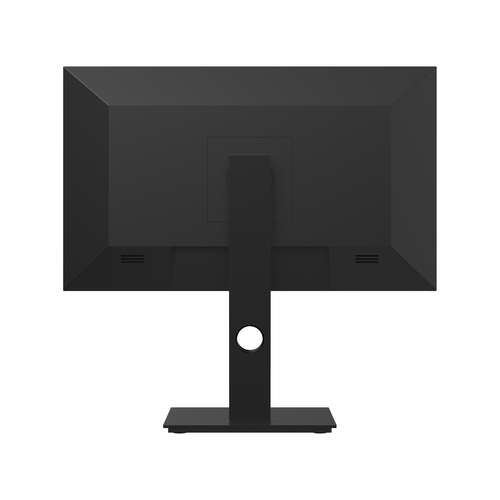

LM24-P301A computer monitor
60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black
Model LM24-P301APart no. DHI-LM24-P301A-A5EAN 6923172579744
77 specifications Checked today
- Display60.5 cm (23.8")
- Resolution2560 x 1440 pixels
- Energy classF
- ColourBlack
- Built-in speaker(s)No
- Market positioningBusiness
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 2560 x 1440 pixels
- Energy class
- F
- Colour
- Black
- Built-in speaker(s)
- No
- Market positioning
- Business
- Brand
- Dahua Technology
- Category
- Monitor
- Model
- LM24-P301A
- Part numbers
- DHI-LM24-P301A-A5, DHI-LM24-P301A
- EAN / UPC
- 6923172579744
- Also known as
- Dahua Technology LM24-P301A computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black
Specifications
77 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 2560 x 1440 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Quad HD |
| Panel type | IPS |
| Backlight type | Edge LED |
| Display brightness (typical) | 320 cd/m² |
| Response time | 6 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 2560 x 1440 |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Colour gamut standard | DCI-P3 |
| Colour gamut | 98% |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 102% |
| Adobe RGB coverage | 93% |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Detachable stand | Yes |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB Type-C downstream ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Audio output | Yes |
| Headphone out | No |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Yes |
| Height adjustment | Yes |
| Adjustable height (max) | 12.5 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 20 kWh |
| Power consumption (typical) | 35 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 130 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2 A |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 539.6 mm |
| Depth (without stand) | 53.2 mm |
| Height (without stand) | 324.5 mm |
| Weight (without stand) | 5.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 779 mm |
| Package depth | 127 mm |
| Package height | 397 mm |
| Package weight | 8.2 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI |
| HDMI cable length | 1.5 m |
