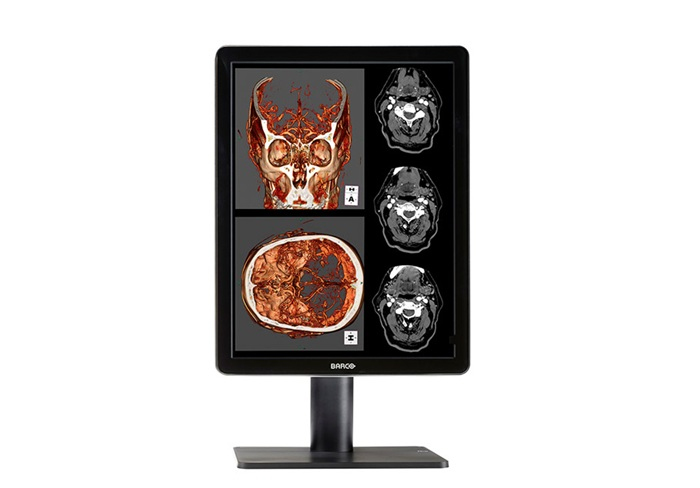

Barco Nio Color 3MP LED

Barco Nio Color 3MP LED

Model Nio Color 3MP LEDPart no. K9602313EAN 5499778005150

76 specifications Checked 3 days ago
  • Display54.1 cm (21.3")
  • Resolution2048 x 1536 pixels
  • ColourBlack, White
  • Built-in speaker(s)No
  • Market positioningMedical
  • USB hub version2.0
See all specifications

Overview

Display
54.1 cm (21.3")
Resolution
2048 x 1536 pixels
Colour
Black, White
Built-in speaker(s)
No
Market positioning
Medical
USB hub version
2.0
Brand
Barco
Category
Monitor
Model
Nio Color 3MP LED
Part numbers
K9602313, K9602312, K9602584, K9602586, K9602585, K9602589 +2 more
EAN / UPC
5499778005150, 5499778005167, 549977800515
Also known as
Barco Nio Color 3MP LED computer monitor 54.1 cm (21.3") 2048 x 1536 pixels Full HD Black, White

Specifications

76 specifications in 12 groups

Display

Display diagonal54.1 cm (21.3")
Display resolution2048 x 1536 pixels
Native aspect ratio4:3
Display technologyLED
TouchscreenNo
HD typeFull HD
Panel typeIPS
Display brightness (typical)800 cd/m²
Response time40 ms
Aspect ratio4:3
Contrast ratio (typical)1400:1
Viewing angle, horizontal176°
Viewing angle, vertical176°
Pixel pitch0.2155 x 0.2155 mm
Horizontal scan range15 - 129 kHz
Vertical scan range24 - 100 Hz
Viewable size, horizontal43.3 cm
Viewable size, vertical32.5 cm
Viewable size diagonal54 cm
Pixel frequency280 MHz

Multimedia

Built-in speaker(s)No
Built-in cameraNo

Design

Market positioningMedical
Product colourBlack, White

Ports & interfaces

USB hub version2.0
USB Type-A downstream ports quantity3
VGA (D-Sub) ports quantity0
DVI portYes
DVI-D ports quantity1
HDMI ports quantity0
DisplayPorts quantity1
Card reader integratedNo

Network

BluetoothNo
Ethernet LANNo

Ergonomics

VESA mountingYes
Panel mounting interface100 x 100 mm
Cable lock slotNo
Height adjustmentYes
Adjustable height (max)10 cm
PivotNo
SwivellingYes
Swivel angle range-30 - 30°
Tilt adjustmentYes
Tilt angle range-5 - 25°
On Screen Display (OSD)Yes
Number of OSD languages14
LED indicatorsYes

Power

Power consumption (typical)50 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)8 - 80%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 2000 m
Non-operating altitude0 - 7500 m

Weight & dimensions

Width (with stand)491 mm
Depth (with stand)235 mm
Height (with stand)572 mm
Weight (with stand)12.8 kg
Width (without stand)491 mm
Depth (without stand)84 mm
Height (without stand)378 mm
Weight (without stand)8 kg

Packaging data

Package width655 mm
Package depth495 mm
Package height388 mm
Package weight16.8 kg

Packaging content

Cables includedDisplayPort, DVI, USB
Quick start guideYes

Other features

AC adapter includedYes
TV tuner integratedNo
Placement supportedHorizontal/Vertical
Compliance industry standardsRoHS
CertificationCE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-20
Supplied AC adapter typeLED
