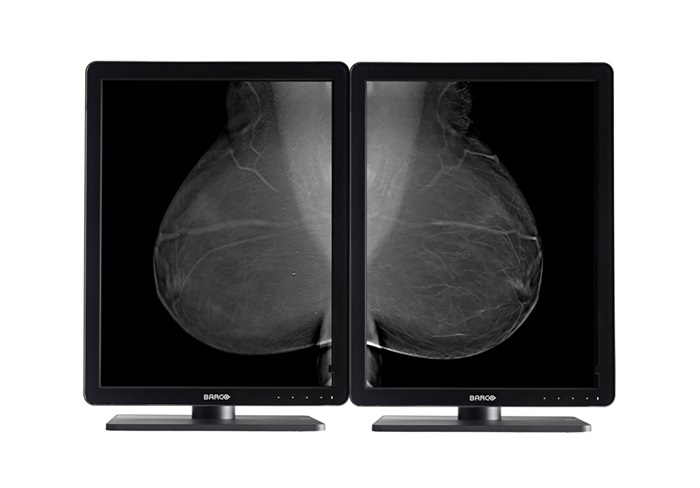

Barco Nio 5MP LED (MDNG-5221)

Model Nio 5MP LED (MDNG-5221)Part no. K9602734

79 specifications Checked 2 days ago

Overview

Brand: Barco
Category: Monitor
Model: Nio 5MP LED (MDNG-5221)
Part number: K9602734
Also known as: Barco Nio 5MP LED (MDNG-5221) computer monitor 54.1 cm (21.3") 2560 x 2048 pixels 2K Ultra HD Black, White

79 specifications in 14 groups

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	2560 x 2048 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	2K Ultra HD
Panel type	IPS
Display brightness (typical)	1020 cd/m²
Response time	25 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	2560 x 2048
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Display number of colours	Monochrome
Pixel pitch	0.165 x 0.165 mm
Horizontal scan range	15 - 128 kHz
Vertical scan range	24 - 100 Hz
Viewable size, horizontal	42.2 cm
Viewable size, vertical	33.8 cm
Viewable size diagonal	54 cm
3D	No

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Medical
Product colour	Black, White

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	14

Specification	Value
Power consumption (typical)	43 W
AC input voltage	100 - 240 V

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 7500 m

Specification	Value
TV tuner integrated	No
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2004/108/EC, CE - 93/42/EEC; A1:2007/47/EC class II b, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601-1:2006, EN 6060
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No

Specification	Value
Harmonized System (HS) code	85285210
