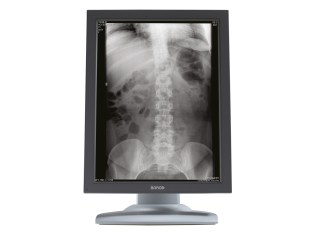

Nio 3MP

Model Nio 3MPPart no. K9602601EAN 549977800430

75 specifications Checked today

Display52.8 cm (20.8")
Resolution2048 x 1536 pixels
ColourGrey
Built-in speaker(s)No
Market positioningMedical
USB version1.1

See all specifications

Overview

Display: 52.8 cm (20.8")
Resolution: 2048 x 1536 pixels
Colour: Grey
Built-in speaker(s): No
Market positioning: Medical
USB version: 1.1

Brand: Barco
Category: Monitor
Model: Nio 3MP
Part numbers: K9602601, K9602602, K9602600, K9602604
EAN / UPC: 549977800430
Also known as: Barco Nio 3MP computer monitor 52.8 cm (20.8") 2048 x 1536 pixels Full HD LED Grey

Specifications

75 specifications in 12 groups

Display

Specification	Value
Display diagonal	52.8 cm (20.8")
Display resolution	2048 x 1536 pixels
Native aspect ratio	4:3
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
Display brightness (typical)	1000 cd/m²
Response time	50 ms
Aspect ratio	4:3
Contrast ratio (typical)	900:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Pixel pitch	0.2070 x 0.2070 mm
Horizontal scan range	30 - 124 kHz
Vertical scan range	50 - 85 Hz
Viewable size, horizontal	42.4 cm
Viewable size, vertical	31.8 cm
Viewable size diagonal	52.8 cm
Pixel frequency	280 MHz

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Grey

Ports & interfaces

Specification	Value
USB version	1.1
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	0
DVI port	Yes
HDMI ports quantity	0
Card reader integrated	No
USB 1.1 ports quantity	3

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	6 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 30°
On Screen Display (OSD)	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	54 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 7500 m

Weight & dimensions

Specification	Value
Width (with stand)	488 mm
Depth (with stand)	249 mm
Height (with stand)	532 mm
Weight (with stand)	11.5 kg
Width (without stand)	488 mm
Depth (without stand)	114 mm
Height (without stand)	382 mm
Weight (without stand)	9 kg

Packaging data

Specification	Value
Package width	500 mm
Package depth	320 mm
Package height	675 mm
Package weight	15 kg

Packaging content

Specification	Value
Cables included	DVI
Quick start guide	Yes

Other features

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
Placement supported	Horizontal/Vertical
Compliance industry standards	RoHS
Certification	UL 60601-1 1ST EDITION, CAN/ CSA-C22.2 NO. 601.1-M90, UL 60950-1 1ST EDITION, CSA C22.2 NO. 60950-1-03 1ST EDITION, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, DEMKO - EN 60950-1, CCC - GB925
Supplied AC adapter type	LCD
