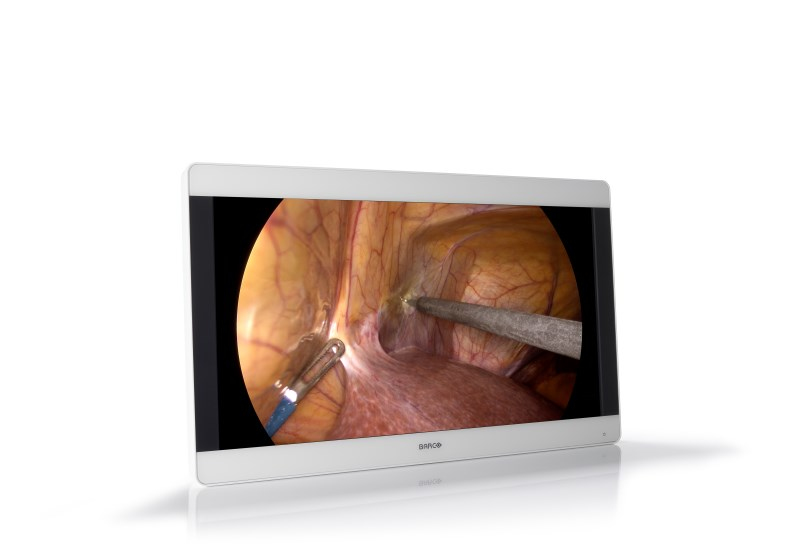

Barco MDSC-8231 computer monitor

MDSC-8231 computer monitor

79 cm (31.1") 4096 x 2160 pixels 4K Ultra HD LED White

Model MDSC-8231Part no. K9307925EAN 5415334001367

59 specifications Checked today

Display79 cm (31.1")
Resolution4096 x 2160 pixels
ColourWhite
NVIDIA G-SYNCNo
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 79 cm (31.1")
Resolution: 4096 x 2160 pixels
Colour: White
NVIDIA G-SYNC: No
Market positioning: Medical
Built-in USB hub: Yes

Brand: Barco
Category: Monitor
Model: MDSC-8231
Part numbers: K9307925, K9352051
EAN / UPC: 5415334001367
Also known as: Barco MDSC-8231 computer monitor 79 cm (31.1") 4096 x 2160 pixels 4K Ultra HD LED White

Specifications

59 specifications in 11 groups

Display

Specification	Value
Display diagonal	79 cm (31.1")
Display resolution	4096 x 2160 pixels
Native aspect ratio	17:9
Display technology	LED
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS-Pro
Display brightness (typical)	550 cd/m²
Response time	20 ms
Screen shape	Flat
Supported graphics resolutions	4096 x 2160
Contrast ratio (typical)	1400:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.1704 x 0.1704 mm
Viewable size, horizontal	69.8 cm
Viewable size, vertical	36.8 cm
Colour gamut	96%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	White

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	1
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	2
Audio input	No
Headphone out	No
DC-in jack	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 100 mm
Cable lock slot	No
Height adjustment	No
Picture-in-Picture	Yes

Power

Specification	Value
Power consumption (typical)	18 W
Power consumption (off)	1 W
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width (without stand)	777 mm
Depth (without stand)	93 mm
Height (without stand)	472 mm
Weight (without stand)	12.1 kg

Packaging data

Specification	Value
Package weight	17 kg

Other features

Specification	Value
Compliance certificates	RoHS
Certification	ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014 CAN/CSA-C22.2 No. 60601-1 (2014) IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + A1:2012 EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014 EMC: IEC 60601-1-2 (2014), EN 60601-1-2 (2015) EN55011 /CISPR 11, FCC CFR47 15 B (B) GB17625.1-2012; GB4943.
