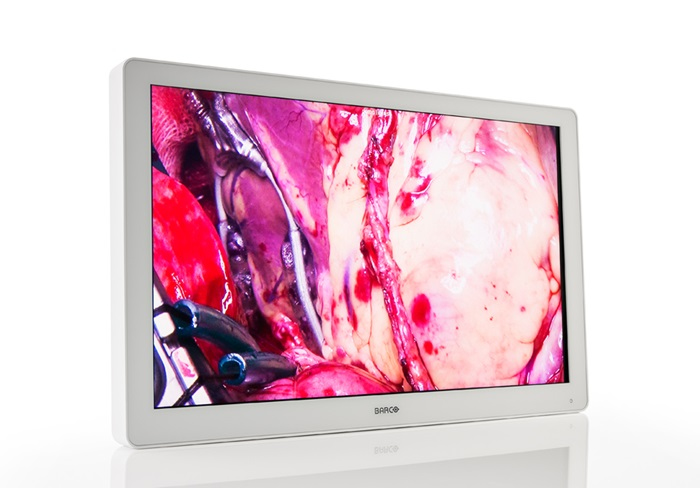

Barco MDSC-2232 computer monitor

80.1 cm (31.6") 1920 x 1080 pixels Full HD LCD White

Model MDSC-2232Part no. K9307918

69 specifications Checked 3 days ago

Overview

Brand: Barco
Category: Monitor
Model: MDSC-2232
Part number: K9307918
Also known as: Barco MDSC-2232 computer monitor 80.1 cm (31.6") 1920 x 1080 pixels Full HD LCD White

69 specifications in 13 groups

Specification	Value
Display diagonal	80.1 cm (31.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	TFT/IPS
Display brightness (typical)	450 cd/m²
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Contrast ratio (typical)	1300:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.364 x 0.364 mm
Viewable size, horizontal	69.8 cm
Viewable size, vertical	39.3 cm
Viewable size diagonal	80.1 cm
3D	No

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Medical
Product colour	White

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	2
DVI-I ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1
HDCP	Yes
Composite video in	1
BNC input ports	2
Component video (YPbPr/YCbCr) in	1
Component video (YPbPr/YCbCr) out	1
RS-232 ports	1
S-Video inputs quantity	1

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 100 mm
Cable lock slot	No
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian
Number of OSD languages	1

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m

Specification	Value
On/off switch	Yes
Certification	IEC 60601-1: 2012 Edition 3.1 EN 60601-1: 2006 +A1:2013 ANSI/AAMI ES 60601-1: 2005/(R)2012 and A1:2012 C1:2009/(R)2012 and A2:2010/(R)2012 - Med. El. Equip., Part 1 CAN/CSA-C22.2 No. 60601-1: 14 Medical Electrical Equipment - Part 1 CE c-UL-us, DEMKO, PSE, KCC IEC60601-1-2, EN55011/CISPR 11 Class BB
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No
