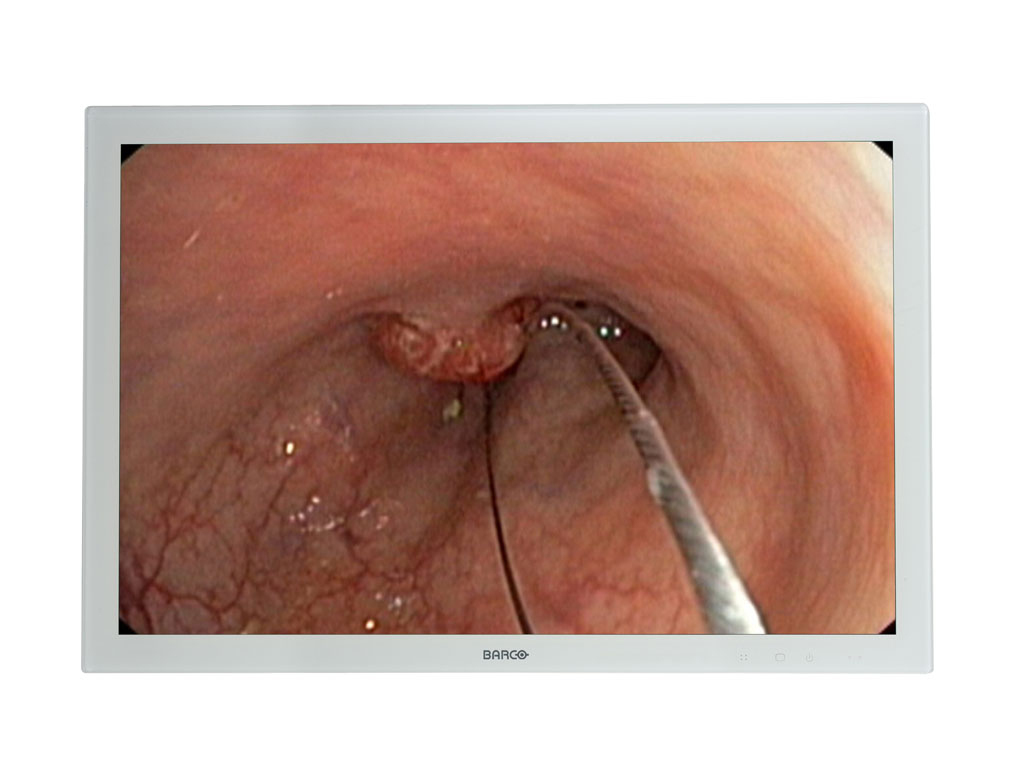

Barco MDSC-2124 DVIO HDSDI

MDSC-2124 DVIO HDSDI

Model MDSC-2124 DVIO HDSDIPart no. K9304116B

39 specifications Checked today

Display61 cm (24")
Resolution1920 x 1200 pixels
ColourSilver
Built-in speaker(s)No
Market positioningMedical
USB Type-A downstream ports quantity0

See all specifications

Overview

Display: 61 cm (24")
Resolution: 1920 x 1200 pixels
Colour: Silver
Built-in speaker(s): No
Market positioning: Medical
USB Type-A downstream ports quantity: 0

Brand: Barco
Category: Monitor
Model: MDSC-2124 DVIO HDSDI
Part number: K9304116B
Also known as: Barco MDSC-2124 DVIO HDSDI computer monitor 61 cm (24") 1920 x 1200 pixels Full HD Silver

Specifications

39 specifications in 9 groups

Display

Specification	Value
Display diagonal	61 cm (24")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Touchscreen	No
HD type	Full HD
Display brightness (typical)	400 cd/m²
Response time	5 ms
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.270 x 0.270 mm
Viewable size, horizontal	51.8 cm
Viewable size, vertical	32.4 cm
Viewable size diagonal	61.1 cm

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Silver

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	0
HDMI ports quantity	0
Composite video in	1
Composite video out	1
RS-232 ports	1
S-Video inputs quantity	1
I/O ports	SDI/HD-SDI (Input & Output) DVIO (DVI Optical) RGBS (4BNC)

Ergonomics

Specification	Value
Panel mounting interface	75 x 75,100 x 100 mm
Cable lock slot	No
Picture-in-Picture	Yes

Power

Specification	Value
Power consumption (typical)	120 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Width (without stand)	590 mm
Depth (without stand)	108 mm
Height (without stand)	517 mm
Weight (without stand)	10.9 kg

Other features

Specification	Value
TV tuner integrated	No
Certification	UL 60601-1, CE, FCC, c-UL, KETI, PSE
