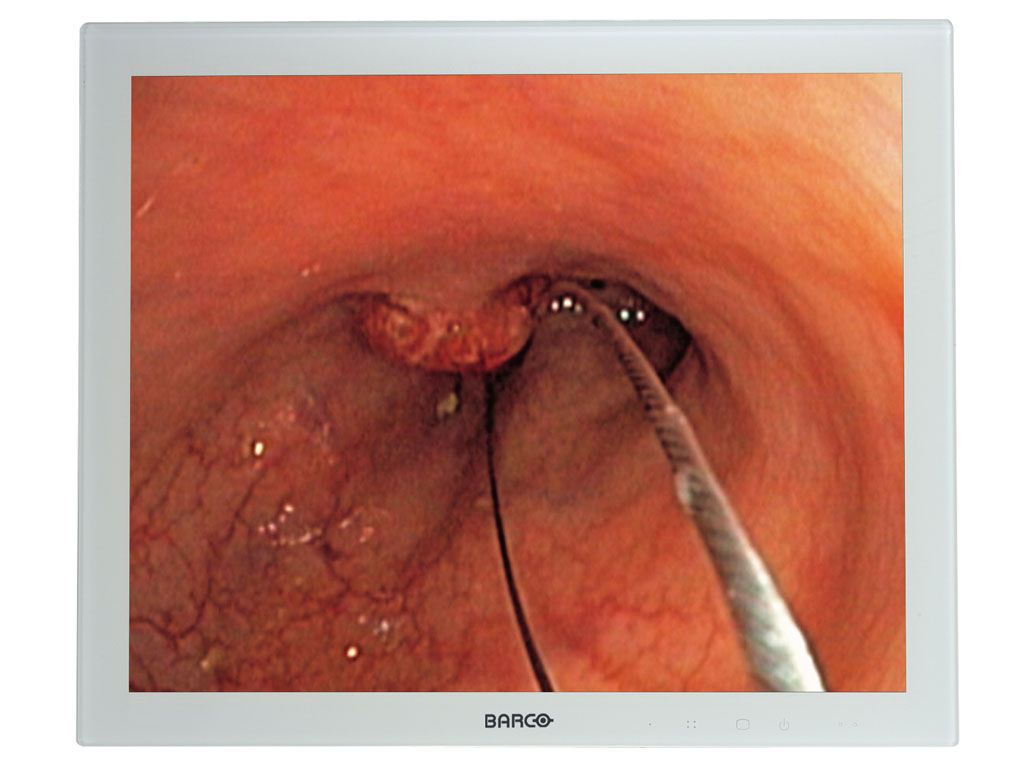

MDSC-1119 HDSDI
Model MDSC-1119 HDSDIPart no. K9304121AEAN 5499778000636
37 specifications Checked today
- Display48.3 cm (19")
- Resolution1024 x 1280 pixels
- ColourSilver
- Built-in speaker(s)No
- Market positioningMedical
- USB Type-A downstream ports quantity0
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1024 x 1280 pixels
- Colour
- Silver
- Built-in speaker(s)
- No
- Market positioning
- Medical
- USB Type-A downstream ports quantity
- 0
- Brand
- Barco
- Category
- Monitor
- Model
- MDSC-1119 HDSDI
- Part number
- K9304121A
- EAN / UPC
- 5499778000636
- Also known as
- Barco MDSC-1119 HDSDI computer monitor 48.3 cm (19") 1024 x 1280 pixels Silver
Specifications
37 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1024 x 1280 pixels |
| Native aspect ratio | 5:4 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.294 x 0.294 mm |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Viewable size diagonal | 48.2 cm |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| HDMI ports quantity | 0 |
| HDCP | No |
| Composite video in | 1 |
| S-Video inputs quantity | 1 |
| I/O ports | SDI/HD-SDI (Input & Output) RGBS (4BNC) |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot | No |
| Picture-in-Picture | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 427 mm |
| Depth (without stand) | 81 mm |
| Height (without stand) | 356 mm |
| Weight (without stand) | 8 kg |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Certification | UL 60601-1, EN60601-1, CE, c-UL, KETI, PSE EMC: FCC-B, EN 60601-1-2, ICES-001, KETI, VCCI, CCC |
| Supplied AC adapter type | AC |
