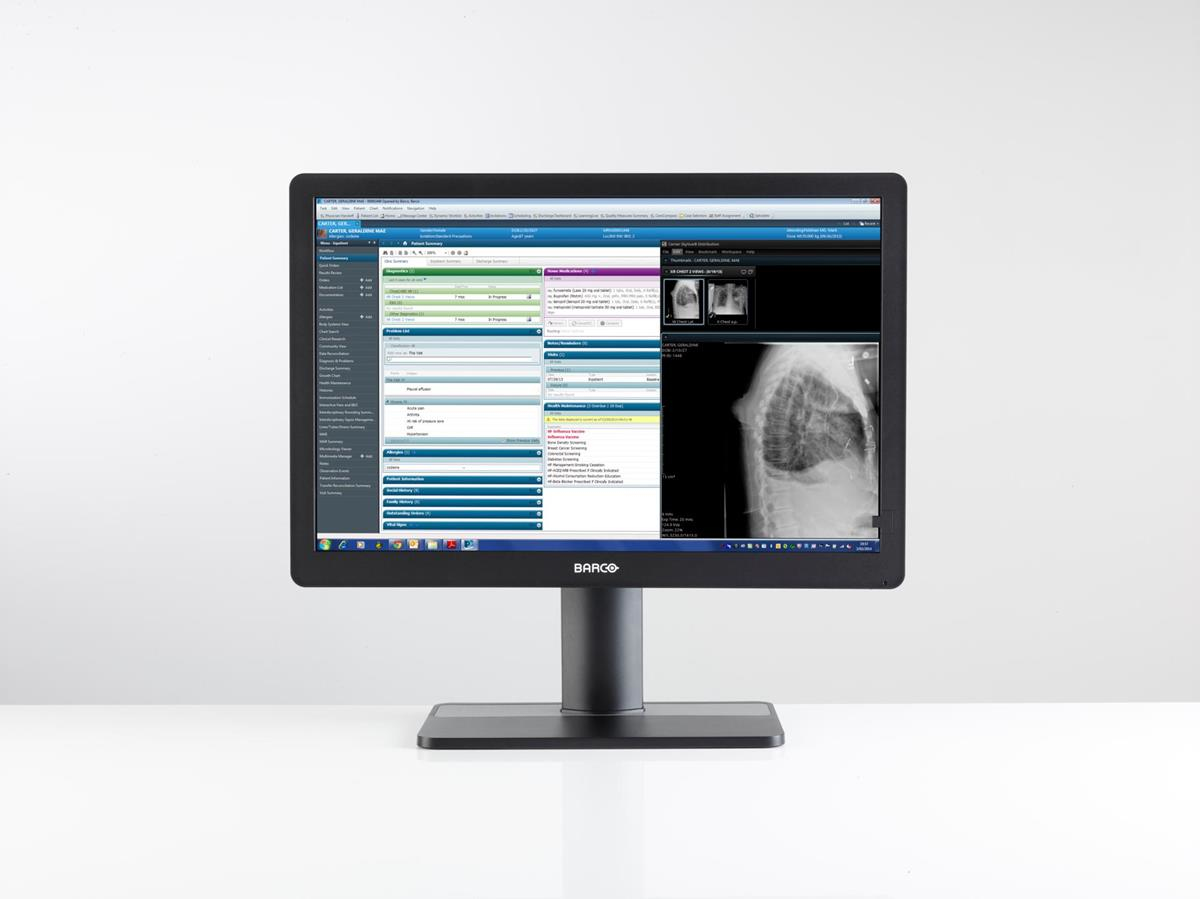

MDRC-2324 STIB
Model MDRC-2324 STIBPart no. K9350056
57 specifications Checked today
- Display61 cm (24")
- Resolution1920 x 1200 pixels
- ColourBlack
- Market positioningMedical
- Built-in USB hubYes
- Power consumption (typical)20 W
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1200 pixels
- Colour
- Black
- Market positioning
- Medical
- Built-in USB hub
- Yes
- Power consumption (typical)
- 20 W
- Brand
- Barco
- Category
- Monitor
- Model
- MDRC-2324 STIB
- Part number
- K9350056
- Also known as
- Barco MDRC-2324 STIB computer monitor 61 cm (24") 1920 x 1200 pixels LCD Black
Specifications
57 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Touchscreen | No |
| Display brightness (peak) | 430 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Response time | 7 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| DVI port | Yes |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 22° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 568 mm |
| Depth (with stand) | 201.3 mm |
| Height (with stand) | 530.6 mm |
| Weight (with stand) | 7.8 kg |
| Width (without stand) | 568 mm |
| Depth (without stand) | 67.3 mm |
| Height (without stand) | 383 mm |
| Weight (without stand) | 5.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 760 mm |
| Package depth | 235 mm |
| Package height | 512 mm |
| Package weight | 9.8 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DisplayPort, USB |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Certification | CE |
