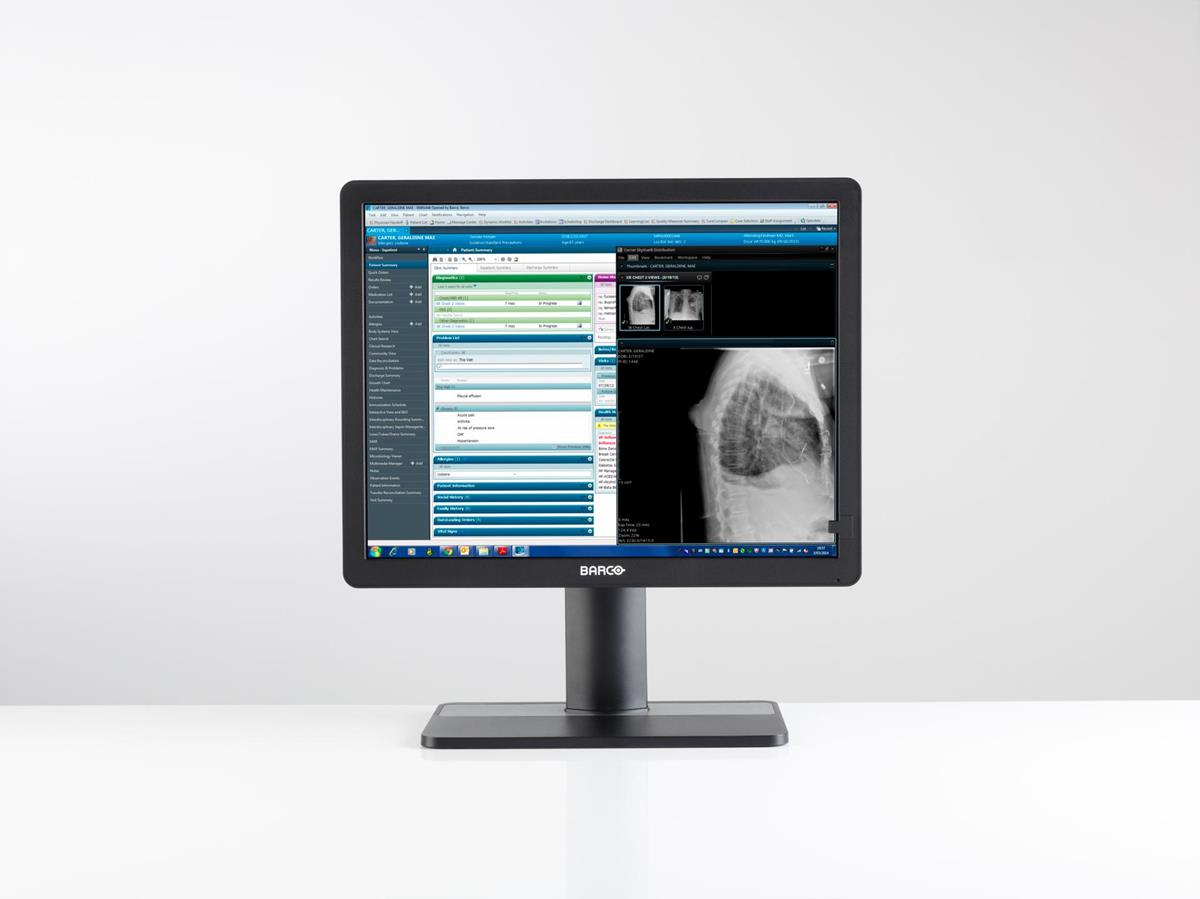

MDRC-2321 computer monitor
53.3 cm (21") 1600 x 1200 pixels WUXGA LED Touchscreen Tabletop Black
Model MDRC-2321Part no. K9350052
77 specifications Checked today
- Display53.3 cm (21")
- Resolution1600 x 1200 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningMedical
- Built-in USB hubYes
Overview
- Display
- 53.3 cm (21")
- Resolution
- 1600 x 1200 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Medical
- Built-in USB hub
- Yes
- Brand
- Barco
- Category
- Monitor
- Model
- MDRC-2321
- Part numbers
- K9350052, K9350054
- Also known as
- Barco MDRC-2321 computer monitor 53.3 cm (21") 1600 x 1200 pixels WUXGA LED Touchscreen Tabletop Black
Specifications
77 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 53.3 cm (21") |
| Display resolution | 1600 x 1200 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | WUXGA |
| Backlight type | LED |
| Touchscreen type | Tabletop |
| Display brightness (peak) | 1000 cd/m² |
| Display brightness (typical) | 400 cd/m² |
| Display brightness | 400 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) | 1800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.27 x 0.27 mm |
| Viewable size diagonal | 54.1 cm |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| OmniTapps Multitouch compatibility | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DVI-I ports quantity | 1 |
| HDMI | No |
| DisplayPorts quantity | 1 |
| Audio input | No |
| Headphone out | No |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Height adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Pivot | Yes |
| Tilt angle range | -5 - 20° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 477 x 201.3 x 529.6 mm |
| Width (with stand) | 477 mm |
| Depth (with stand) | 201.3 mm |
| Height (with stand) | 529.6 mm |
| Weight (with stand) | 6.8 kg |
| Width (without stand) | 477 mm |
| Depth (without stand) | 70.4 mm |
| Height (without stand) | 374.5 mm |
| Weight (without stand) | 4.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 660 mm |
| Package depth | 230 mm |
| Package height | 513 mm |
| Package weight | 9.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, DisplayPort, USB |
| Manual | Yes |
| Bundled software | MediCal QAWeb |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| Atmospheric pressure | 50 - 106 kPa |
| Compliance certificates | RoHS |
| Display viewable area (HxV) | 432 x 324 mm |
| Certification | FDA listing R015753 for General Radiology CE (MDD 93/42/EEC; A1:2007/47/EC class I product) CCC (China), KC (Korea), PSE (Japan), BIS (India), BSMI (Taiwan) IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12 |
