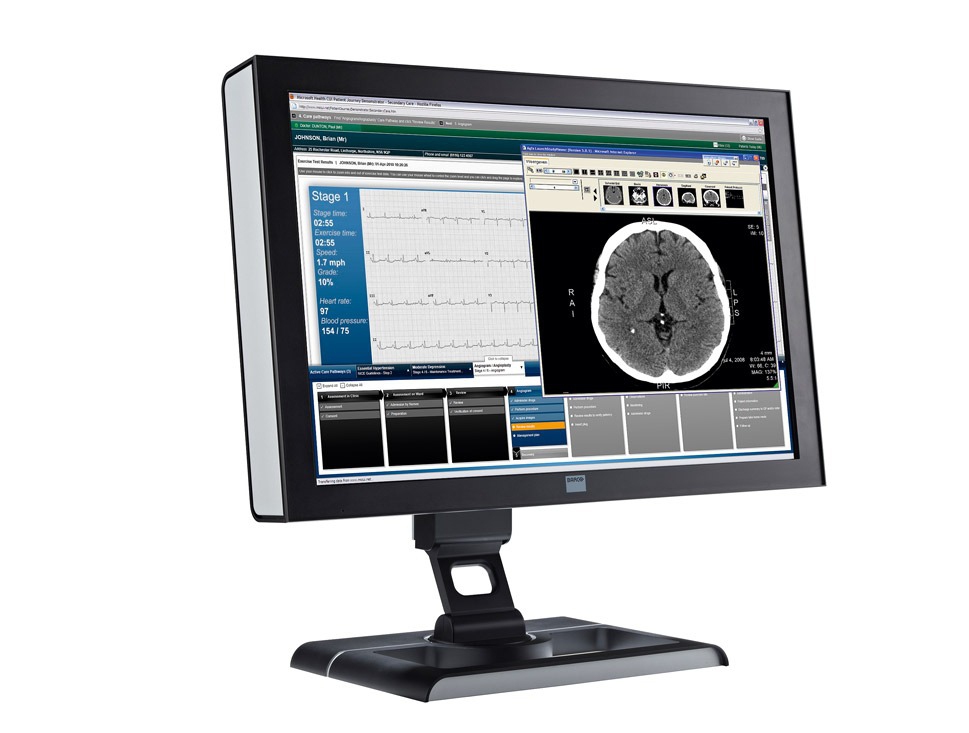

Barco MDRC-2124 computer monitor

61.2 cm (24.1") 1920 x 1200 pixels Full HD LED Black

Model MDRC-2124Part no. K9303006AEAN 549977800119

75 specifications Checked 3 days ago

Overview

Brand: Barco
Category: Monitor
Model: MDRC-2124
Part number: K9303006A
EAN / UPC: 549977800119, 5499778000193
Also known as: Barco MDRC-2124 computer monitor 61.2 cm (24.1") 1920 x 1200 pixels Full HD LED Black

75 specifications in 12 groups

Specification	Value
Display diagonal	61.2 cm (24.1")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
Display brightness (typical)	400 cd/m²
Response time	24 ms
Supported graphics resolutions	1920 x 1200 (WUXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.27 x 0.27 mm
Horizontal scan range	31.5 - 79.95 kHz
Vertical scan range	59 - 61 Hz
Viewable size, horizontal	51.8 cm
Viewable size, vertical	32.4 cm
Sync-on-green (SOG)	Yes
3D	No
Pixel frequency	165 MHz
Separate H/V sync	Yes
Composite sync	Yes

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Medical
Product colour	Black

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
Card reader integrated	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-5 - 40°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean
Number of OSD languages	10

Specification	Value
Power consumption (typical)	65 W
AC input voltage	100 - 250 V

Specification	Value
TV tuner integrated	No
Certification	EN 60601-1-2 (2001),EN 55011 (Class B),IEC 61000-3-2,IEC 61000-3-3,IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4,IEC 61000-4-5,IEC 61000-4-11,IEC 61000-4-6,IEC 61000-4-8,CE,EN 60601-1 Medical Part 1,FCC B,c-ul,PSE,BSMII,VCCI ,CCC,KCC,CSA c22.2No601.1, UL50501-1
Supplied AC adapter type	AC

Specification	Value
Thin client installed	No
