MDRC-2122 WP
Model MDRC-2122 WPPart no. K9301851AEAN 2002835449007
85 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ColourSilver, White
- Built-in speaker(s)No
- Market positioningMedical
- USB hub version2.0
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Colour
- Silver, White
- Built-in speaker(s)
- No
- Market positioning
- Medical
- USB hub version
- 2.0
- Brand
- Barco
- Category
- Monitor
- Model
- MDRC-2122 WP
- Part number
- K9301851A
- EAN / UPC
- 2002835449007, 3540260119281, 5415247000693, 5499778003583
- Also known as
- Barco MDRC-2122 WP computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Silver, White
Specifications
85 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 250 cd/m² |
| Response time | 14 ms |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2475 x 0.2475 mm |
| Viewable size, horizontal | 26.7 cm |
| Viewable size, vertical | 47.5 cm |
| Viewable size diagonal | 54.2 cm |
| 3D | No |
| Pixel frequency | 165 MHz |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Silver, White |

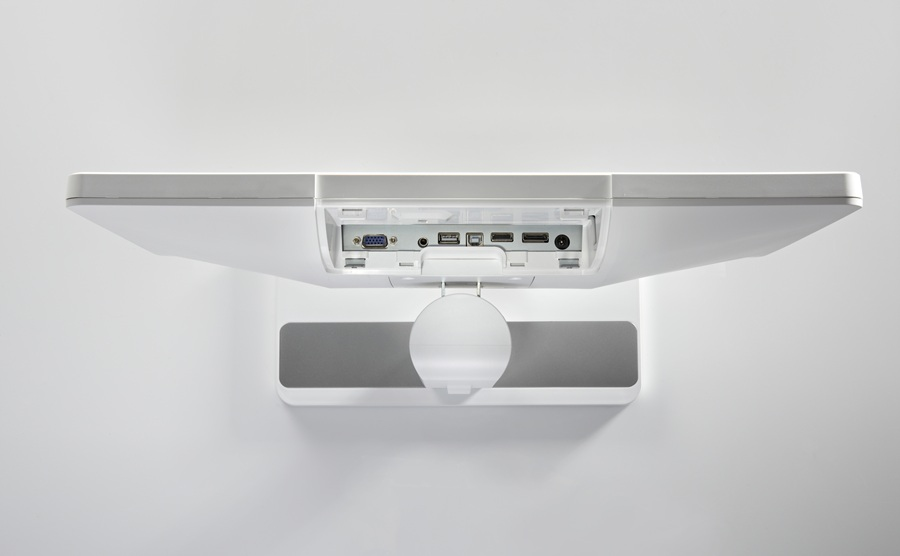

Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Mini DisplayPorts quantity | 0 |
| DC-in jack | Yes |
| Composite video in | 0 |
| SCART ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| RS-232 ports | 0 |
| S-Video inputs quantity | 0 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | No |
| Height adjustment | Yes |
| Adjustable height (max) | 8 cm |
| Pivot | No |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 20° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean |
| Number of OSD languages | 10 |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 507 mm |
| Depth (with stand) | 166 mm |
| Height (with stand) | 457 mm |
| Weight (with stand) | 6 kg |
| Width (without stand) | 507 mm |
| Depth (without stand) | 57 mm |
| Height (without stand) | 306 mm |
| Weight (without stand) | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 610 mm |
| Package depth | 230 mm |
| Package height | 505 mm |
| Package weight | 9.6 kg |
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI, USB, VGA |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| On/off switch | Yes |
| TV tuner integrated | No |
| Power requirements | +12V DC, 5.0A |
| Ethernet LAN (RJ-45) ports | 0 |
| Certification | CE (MDD 93/42/EEC class I product), CE - 2004/ 108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1-M90:2005, IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1- |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
