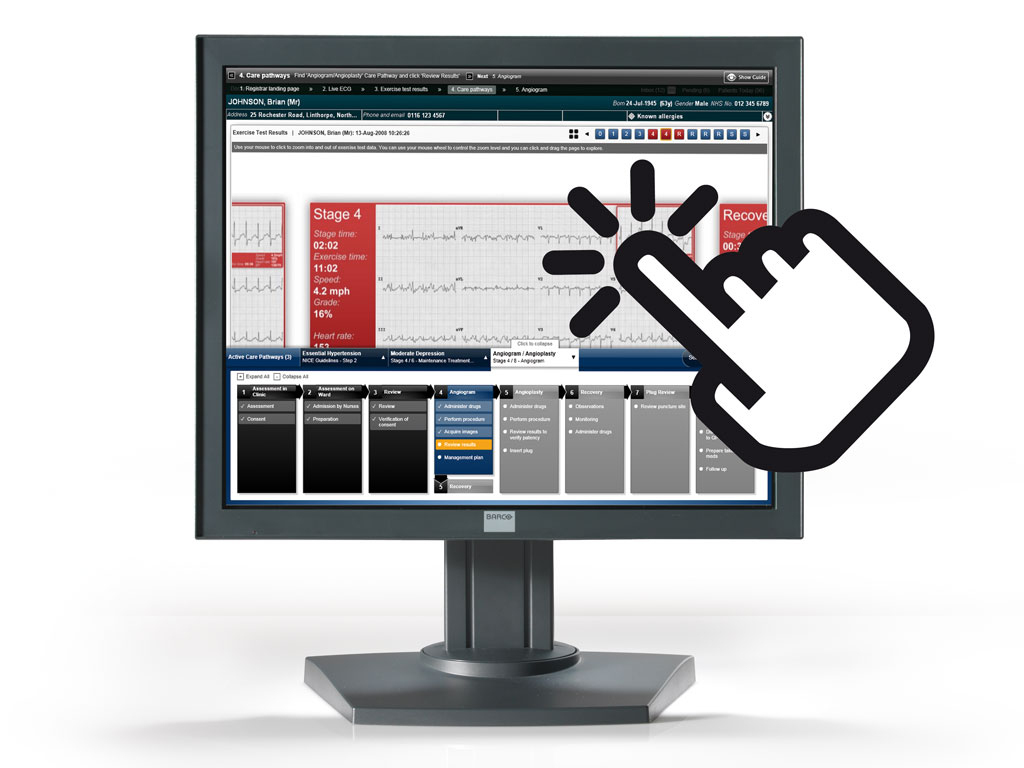

MDRC-1119 TS

Model MDRC-1119 TSPart no. K9301801AEAN 5499778000179

71 specifications Checked today

Display48.3 cm (19")
Resolution1280 x 1024 pixels
ColourGrey
Built-in speaker(s)No
Market positioningMedical
VGA (D-Sub) ports quantity1

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1280 x 1024 pixels
Colour: Grey
Built-in speaker(s): No
Market positioning: Medical
VGA (D-Sub) ports quantity: 1

Brand: Barco
Category: Monitor
Model: MDRC-1119 TS
Part number: K9301801A
EAN / UPC: 5499778000179
Also known as: Barco MDRC-1119 TS computer monitor 48.3 cm (19") 1280 x 1024 pixels Grey

Specifications

71 specifications in 12 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	10 ms
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	5:4
Contrast ratio (typical)	1300:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Horizontal scan range	31.5 - 79.95 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	37.6 cm
Viewable size, vertical	30.1 cm
Sync-on-green (SOG)	Yes
3D	No
Pixel frequency	165 MHz
Separate H/V sync	Yes
Composite sync	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Grey

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
USB 1.1 ports quantity	2

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	12 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	0 - 10°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean
Number of OSD languages	10

Power

Specification	Value
Power consumption (typical)	45 W
Power consumption (standby)	1 W
AC input voltage	100 - 250 V

Weight & dimensions

Specification	Value
Width (with stand)	418 mm
Depth (with stand)	223 mm
Height (with stand)	425 mm
Weight (with stand)	8.7 kg
Width (without stand)	418 mm
Depth (without stand)	70 mm
Height (without stand)	346 mm
Weight (without stand)	6 kg

Packaging data

Specification	Value
Package width	502 mm
Package depth	294 mm
Package height	494 mm
Package weight	11.7 kg

Packaging content

Specification	Value
Cables included	AC, DVI, USB
Manual	Yes
Bundled software	MediCal QAWeb

Other features

Specification	Value
TV tuner integrated	No
Certification	EN 60601-1-2 (2001),EN 55011 (Class B),IEC 61000-3-2,IEC 61000-3-3,IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4,IEC 61000-4-5,IEC 61000-4-11,IEC 61000-4-6,IEC 61000-4-8,CE,EN 60601-1 Medical Part 1,FCC B,c-ul,PSE,BSMII,VCCI,CCC,KCC,CSA c22.2No601.1, UL50501-1
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
