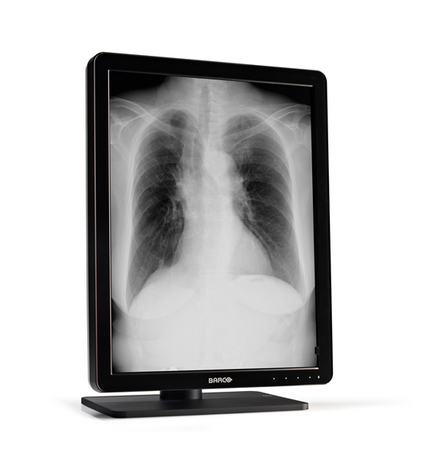

MDNG-3220 computer monitor
52.8 cm (20.8") 2048 x 1536 pixels QXGA LCD Black, White
Model MDNG-3220
79 specifications Checked today
- Display52.8 cm (20.8")
- Resolution2048 x 1536 pixels
- ColourBlack, White
- Built-in cameraNo
- Market positioningMedical
- Built-in USB hubYes
Overview
- Display
- 52.8 cm (20.8")
- Resolution
- 2048 x 1536 pixels
- Colour
- Black, White
- Built-in camera
- No
- Market positioning
- Medical
- Built-in USB hub
- Yes
- Brand
- Barco
- Category
- Monitor
- Model
- MDNG-3220
- Part number
- MDNG-3220
- Also known as
- Barco MDNG-3220 computer monitor 52.8 cm (20.8") 2048 x 1536 pixels QXGA LCD Black, White
Specifications
79 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 52.8 cm (20.8") |
| Display resolution | 2048 x 1536 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | QXGA |
| Panel type | IPS |
| Backlight type | LED |
| Display brightness (peak) | 1200 cd/m² |
| Display brightness (typical) | 500 cd/m² |
| Response time | 30 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 280 Hz |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Pixel pitch | 0.207 x 0.207 mm |
| Horizontal scan range | 15 - 129 kHz |
| Vertical scan range | 25 - 98 Hz |
| Viewable size, horizontal | 31.8 cm |
| Viewable size, vertical | 42.4 cm |
| Viewable size diagonal | 52 cm |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Megapixel (approx.) | 3 MP |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Black, White |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DVI-D ports quantity | 2 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 10 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 30° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, Dutch, English, Spanish, French, Japanese, Korean |
| Number of OSD languages | 7 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating altitude | 0 - 2000 m |
| Non-operating altitude | 2000 - 7500 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 378 mm |
| Depth (with stand) | 235 mm |
| Height (with stand) | 628 mm |
| Weight (with stand) | 13 kg |
| Width (without stand) | 378 mm |
| Depth (without stand) | 84 mm |
| Height (without stand) | 491 mm |
| Weight (without stand) | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 495 mm |
| Package depth | 388 mm |
| Package height | 655 mm |
| Package weight | 17 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DVI, DisplayPort, USB |
| Manual | Yes |
| Bundled software | MediCal QAWeb |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Power management | Yes |
| Certification | CE (MDD 93/42/EEC class II b product), CE -2014/30/EU, IEC 60601-1:2005+A1:2012, EN 60601-1- 2:2015, ANSI/AAMI ES60601-1 (2005/(R)2012 +A1:2012+C1:2009/(R)2012 + A2:2010/(R)2012) ,CAN/CSA-C22.2 No. 60601-1:14, DEMKO -EN 60601-1:2006/A1:2013, GB9254-2008,GB4943.1-2011, GB17625.1-2012, KC, VCCI, FCC c |
