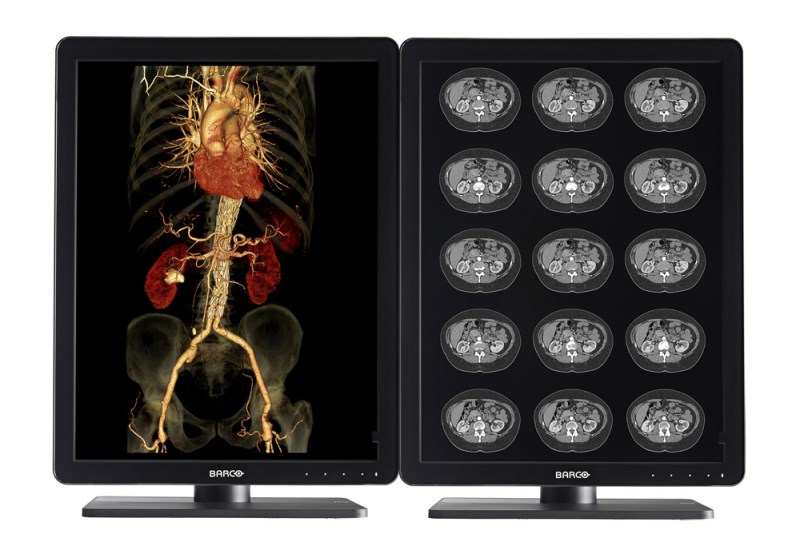

MDNC-3421 computer monitor
54.1 cm (21.3") 2048 x 1536 pixels QXGA LCD Black, Silver
Model MDNC-3421Part no. K9300340AEAN 5400503008896
75 specifications Checked today
- Display54.1 cm (21.3")
- Resolution2048 x 1536 pixels
- ColourBlack, Silver
- Built-in speaker(s)No
- Market positioningMedical
- Built-in USB hubYes
Overview
- Display
- 54.1 cm (21.3")
- Resolution
- 2048 x 1536 pixels
- Colour
- Black, Silver
- Built-in speaker(s)
- No
- Market positioning
- Medical
- Built-in USB hub
- Yes
- Brand
- Barco
- Category
- Monitor
- Model
- MDNC-3421
- Part numbers
- K9300340A, K9602860
- EAN / UPC
- 5400503008896
- Also known as
- Barco MDNC-3421 computer monitor 54.1 cm (21.3") 2048 x 1536 pixels QXGA LCD Black, Silver
Specifications
75 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.1 cm (21.3") |
| Display resolution | 2048 x 1536 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | QXGA |
| Panel type | TFT/IPS |
| Backlight type | LED |
| Display brightness (peak) | 900 cd/m² |
| Display brightness (typical) | 500 cd/m² |
| Response time | 20 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1400:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2109 x 0.2109 mm |
| Viewable size, horizontal | 43.2 cm |
| Viewable size, vertical | 32.4 cm |
| Viewable size diagonal | 54 cm |
| 3D | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
| Megapixel (approx.) | 3 MP |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | Black, Silver |
| Detachable stand | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 3 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 10 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 30° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 14 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 491 mm |
| Depth (with stand) | 235 mm |
| Height (with stand) | 572 mm |
| Width (without stand) | 491 mm |
| Depth (without stand) | 84 mm |
| Height (without stand) | 378 mm |
| Weight (without stand) | 6.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 670 mm |
| Package height | 280 mm |
| Package weight | 11.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DisplayPort, USB |
| Manual | Yes |
| Bundled software | MediCal QAWeb |
Other features
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Compliance certificates | RoHS |
| Safety | IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:14 |
| Certification | IEC 60601-1-2:2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-001 Level B VCCI (Japan) |
