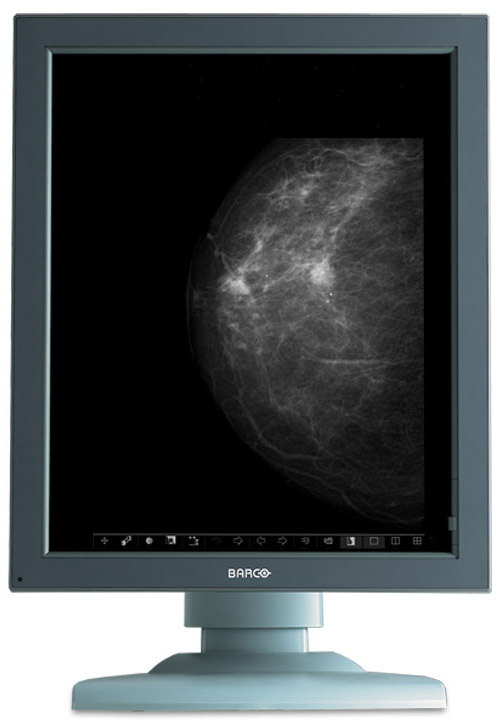

Barco MDMG-5121 computer monitor

MDMG-5121 computer monitor

54.1 cm (21.3") 2560 x 2048 pixels Grey

Model MDMG-5121Part no. K9601259EAN 5499778001206

60 specifications Checked today

Display54.1 cm (21.3")
Resolution2560 x 2048 pixels
ColourGrey
Built-in speaker(s)No
Market positioningMedical
USB hub version2.0

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 2560 x 2048 pixels
Colour: Grey
Built-in speaker(s): No
Market positioning: Medical
USB hub version: 2.0

Brand: Barco
Category: Monitor
Model: MDMG-5121
Part numbers: K9601259, K9602693
EAN / UPC: 5499778001206
Also known as: Barco MDMG-5121 computer monitor 54.1 cm (21.3") 2560 x 2048 pixels Grey

Specifications

60 specifications in 11 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	2560 x 2048 pixels
Native aspect ratio	5:4
Touchscreen	No
Display brightness (typical)	1600 cd/m²
Response time	50 ms
Supported graphics resolutions	2560 x 2048
Aspect ratio	5:4
Contrast ratio (typical)	900:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Pixel pitch	0.165 x 0.165 mm
Viewable size, horizontal	42.2 cm
Viewable size, vertical	33.8 cm
Viewable size diagonal	54.1 cm
Digital horizontal frequency	30 - 150 kHz
Digital vertical frequency	15 - 80 Hz
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Grey

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
HDCP	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Pivot	Yes
Pivot angle	0 - 90°
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 30°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian
Number of OSD languages	5

Power

Specification	Value
Power consumption (typical)	65 W
AC input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	493 mm
Depth (with stand)	250 mm
Height (with stand)	568 mm
Weight (with stand)	13.3 kg
Width (without stand)	493 mm
Depth (without stand)	114 mm
Height (without stand)	408 mm
Weight (without stand)	9.2 kg

Packaging data

Specification	Value
Package width	519 mm
Package depth	339 mm
Package height	699 mm
Package weight	17.9 kg

Packaging content

Specification	Value
Cables included	DVI
Quick start guide	Yes
Bundled software	MediCal QAWeb

Other features

Specification	Value
TV tuner integrated	No
Certification	UL, CAN, CSA, IEC, CE, CCC, BSMI, KCC, VCCI, FCC, FDA, RoHS
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
