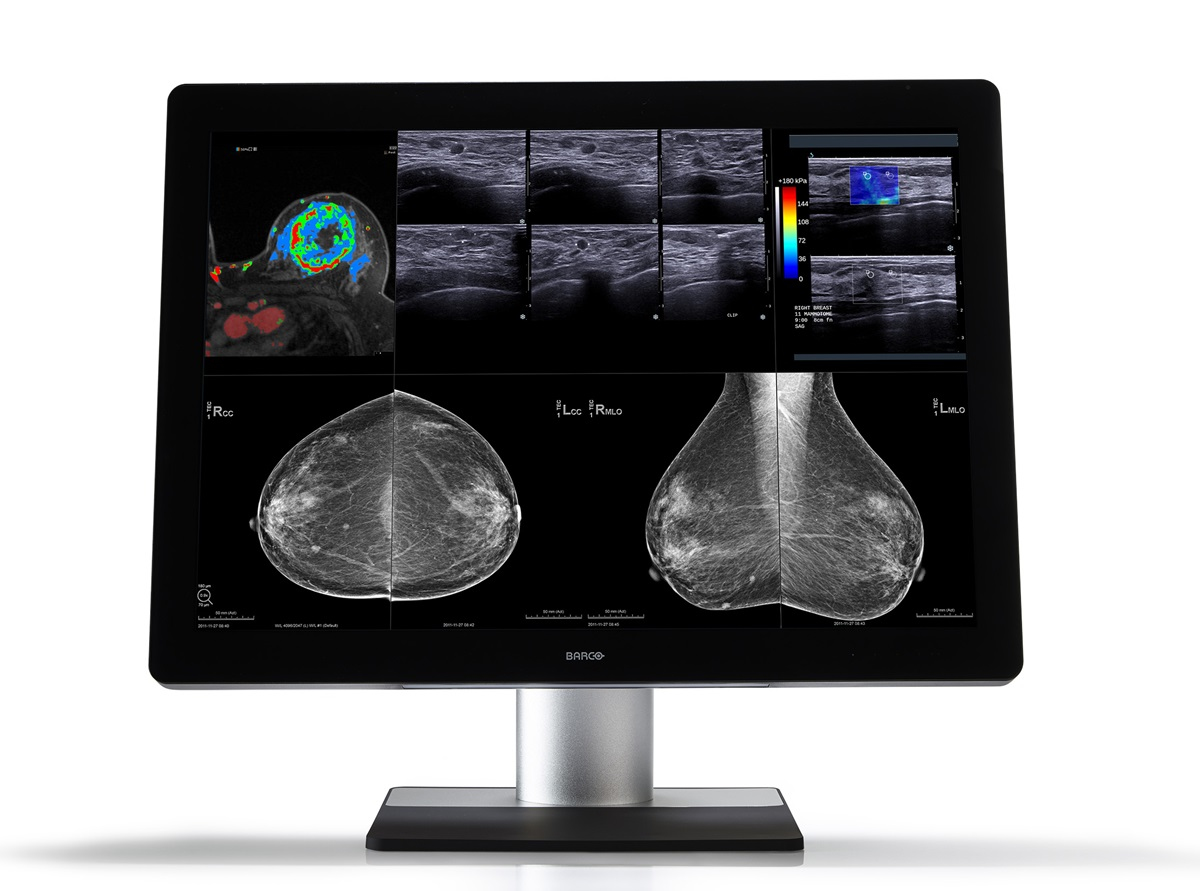

MDMC-12133 computer monitor

85.3 cm (33.6") 4200 x 2800 pixels 4K Ultra HD LCD Black, Silver

Model MDMC-12133Part no. K9301680A

73 specifications Checked today

Display85.3 cm (33.6")
Resolution4200 x 2800 pixels
ColourBlack, Silver
Built-in speaker(s)No
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 85.3 cm (33.6")
Resolution: 4200 x 2800 pixels
Colour: Black, Silver
Built-in speaker(s): No
Market positioning: Medical
Built-in USB hub: Yes

Brand: Barco
Category: Monitor
Model: MDMC-12133
Part number: K9301680A
Also known as: Barco MDMC-12133 computer monitor 85.3 cm (33.6") 4200 x 2800 pixels 4K Ultra HD LCD Black, Silver

Specifications

73 specifications in 11 groups

Display

Specification	Value
Display diagonal	85.3 cm (33.6")
Display resolution	4200 x 2800 pixels
Native aspect ratio	3:2
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
Backlight type	LED
Display brightness (peak)	2100 cd/m²
Display brightness (typical)	1000 cd/m²
Response time	16.5 ms
Screen shape	Flat
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.1686 x 0.1686 mm
Viewable size, horizontal	70.8 cm
Viewable size, vertical	47.2 cm
Viewable size diagonal	85.3 cm
3D	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Megapixel (approx.)	12 MP

Design

Specification	Value
Market positioning	Medical
Product colour	Black, Silver
Detachable stand	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.2

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100,200 x 100 mm
Height adjustment	Yes
Adjustable height (max)	9.5 cm
Pivot	No
Swivelling	Yes
Swivel angle range	-23 - 23°
Tilt adjustment	Yes
Tilt angle range	-5 - 30°

Power

Specification	Value
Power consumption (typical)	190 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	5.5 A
External power adapter	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	795 mm
Depth (with stand)	300 mm
Height (with stand)	610 mm
Weight (with stand)	33 kg
Width (without stand)	795 mm
Depth (without stand)	131 mm
Height (without stand)	572 mm
Weight (without stand)	24 kg

Packaging data

Specification	Value
Package width	960 mm
Package depth	395 mm
Package height	715 mm
Package weight	42 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, USB
Manual	Yes
Bundled software	MediCal QAWeb

Other features

Specification	Value
AC adapter included	Yes
Compliance certificates	RoHS
Safety	IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:14
Certification	EC 60601-1-2:2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-001 Level B VCCI (Japan)
