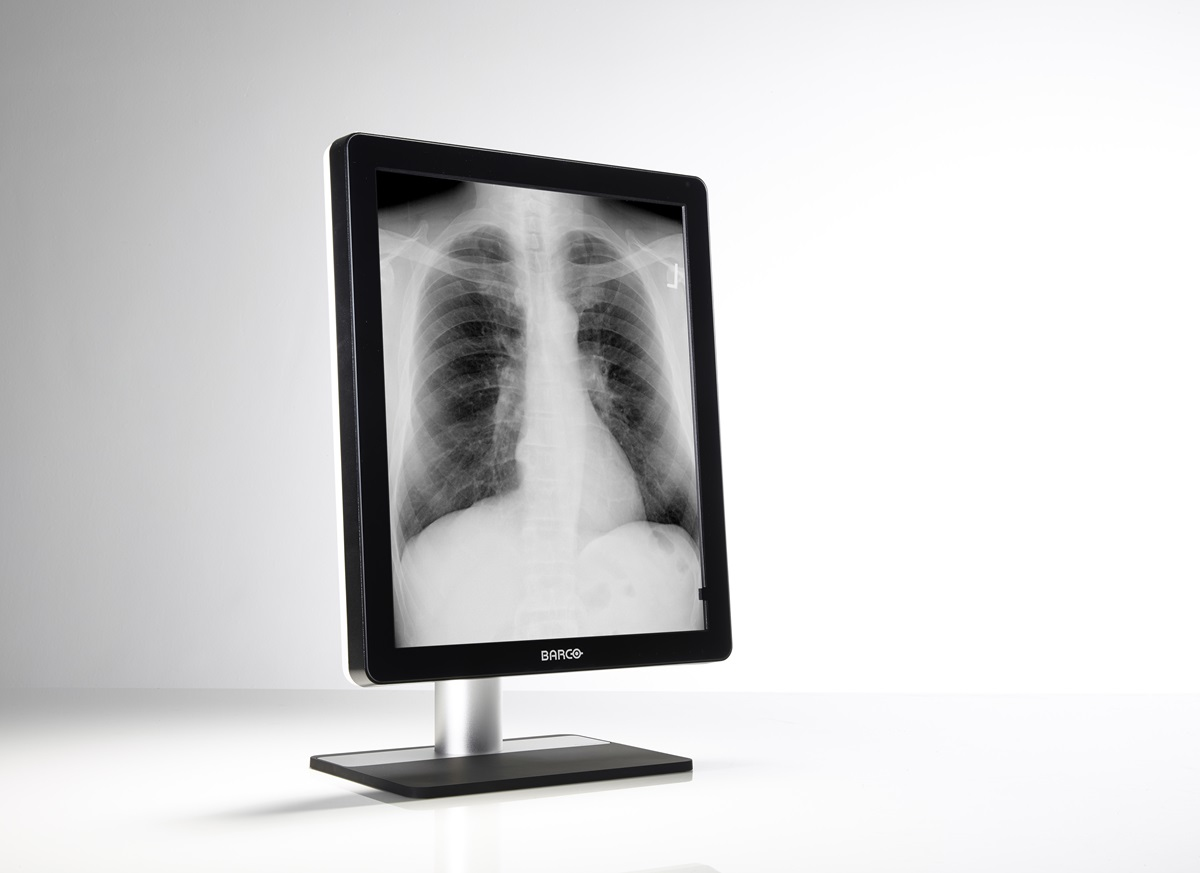

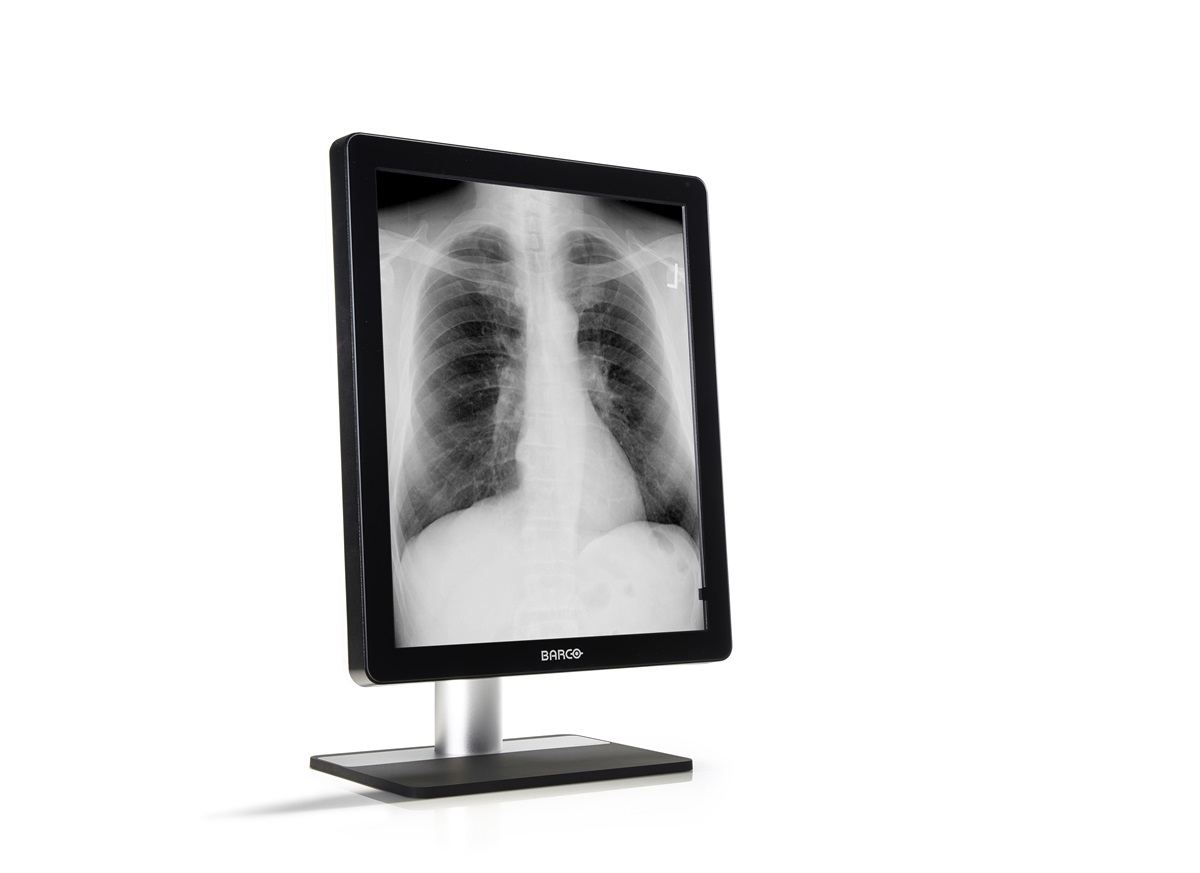

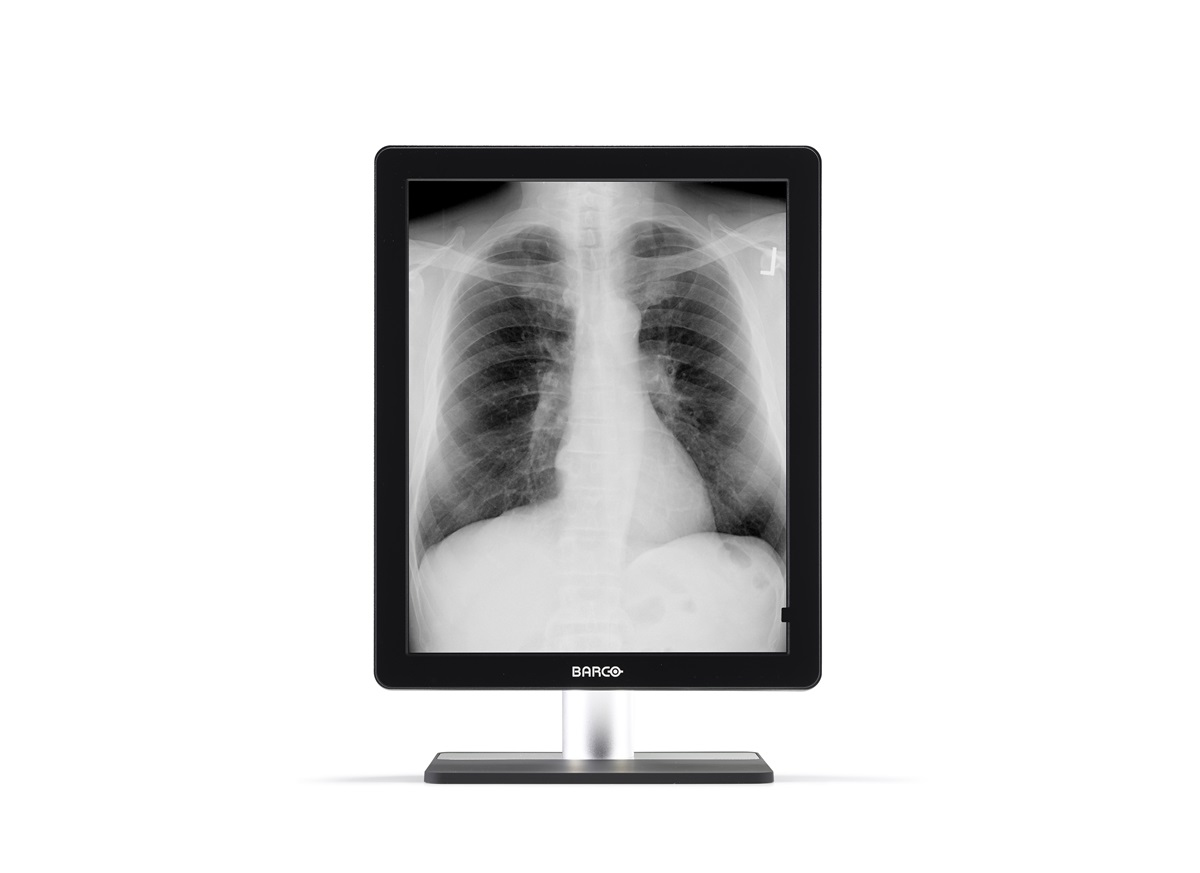

Barco MDCG-5221 computer monitor

MDCG-5221 computer monitor

54.1 cm (21.3") 2560 x 2048 pixels WSXGA LCD Black, Silver

Model MDCG-5221Part no. K9301540B

72 specifications Checked today

Display54.1 cm (21.3")
Resolution2560 x 2048 pixels
ColourBlack, Silver
Built-in speaker(s)No
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 2560 x 2048 pixels
Colour: Black, Silver
Built-in speaker(s): No
Market positioning: Medical
Built-in USB hub: Yes

Brand: Barco
Category: Monitor
Model: MDCG-5221
Part number: K9301540B
Also known as: Barco MDCG-5221 computer monitor 54.1 cm (21.3") 2560 x 2048 pixels WSXGA LCD Black, Silver

Specifications

72 specifications in 11 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	2560 x 2048 pixels
Native aspect ratio	5:4
Display technology	LCD
Touchscreen	No
HD type	WSXGA
Panel type	IPS
Backlight type	LED
Display brightness (peak)	1200 cd/m²
Display brightness (typical)	600 cd/m²
Response time	12.5 ms
Screen shape	Flat
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Pixel pitch	0.165 x 0.165 mm
Viewable size, horizontal	46 cm
Viewable size, vertical	37.5 cm
Viewable size diagonal	54.1 cm

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Megapixel (approx.)	5 MP

Design

Specification	Value
Market positioning	Medical
Product colour	Black, Silver
Detachable stand	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	Yes
HDMI ports quantity	0
DisplayPorts quantity	1

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes
Tilt angle range	-10 - 30°

Power

Specification	Value
Power consumption (typical)	46 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
External power adapter	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	407 mm
Depth (with stand)	235 mm
Height (with stand)	623 mm
Weight (with stand)	13.2 kg
Width (without stand)	407 mm
Depth (without stand)	84 mm
Height (without stand)	494 mm
Weight (without stand)	8.25 kg

Packaging data

Specification	Value
Package width	676 mm
Package depth	317 mm
Package height	565 mm
Package weight	19.6 kg

Packaging content

Specification	Value
Cables included	AC, DisplayPort, USB
Manual	Yes
Bundled software	MediCal QAWeb

Other features

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
Compliance certificates	RoHS
Safety	IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:14
Certification	IEC 60601-1-2:2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-001 Level B VCCI (Japan)
