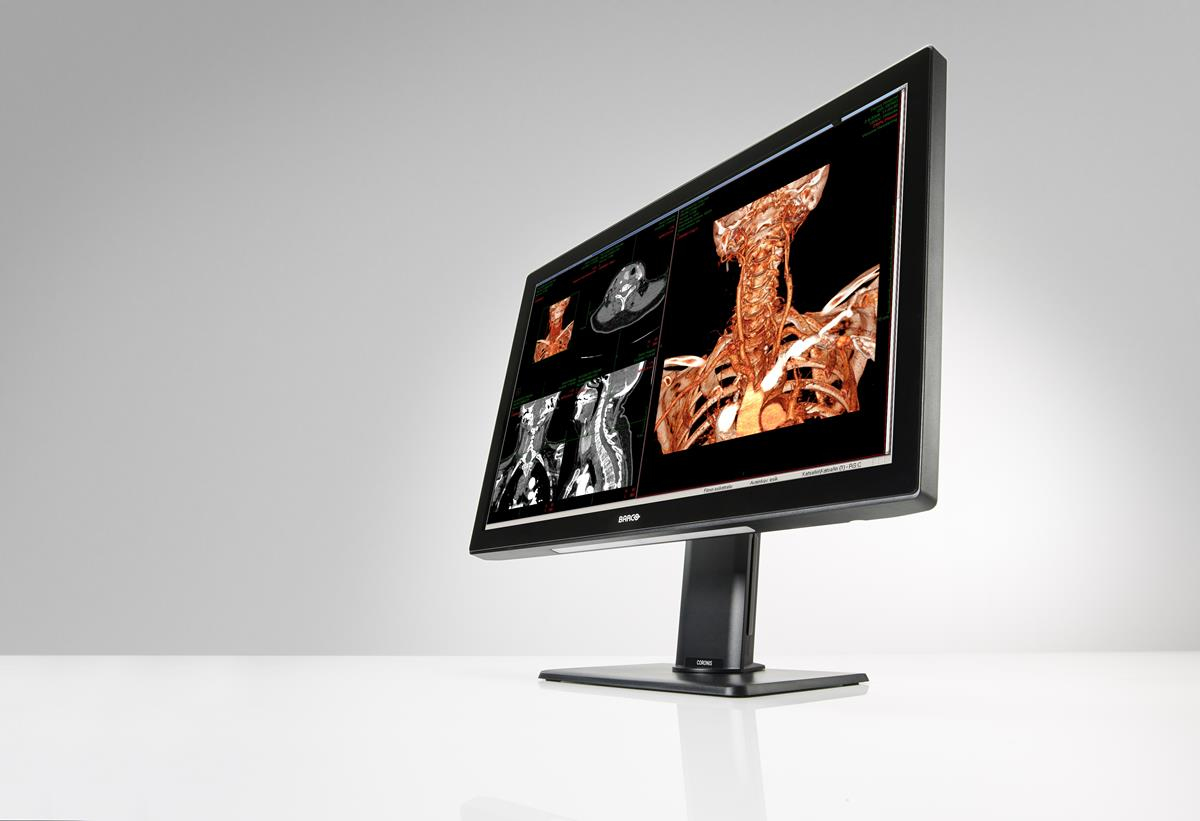

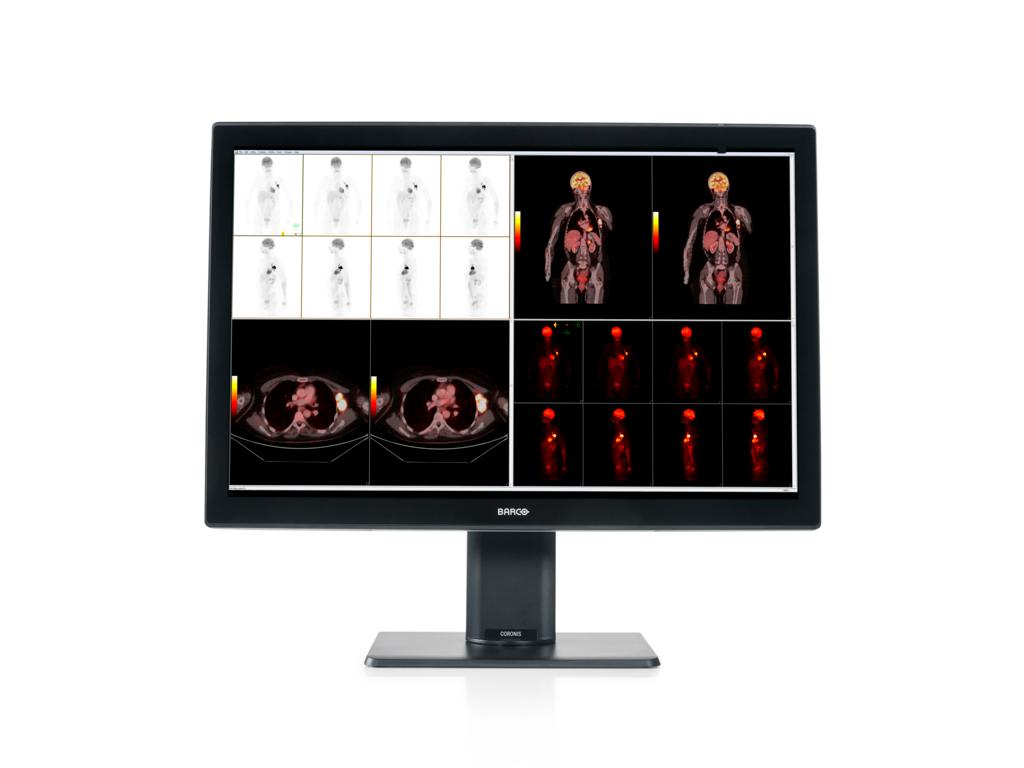

Barco MDCC-6530 computer monitor

MDCC-6530 computer monitor

77.2 cm (30.4") 3280 x 2048 pixels 4K Ultra HD Black, White

Model MDCC-6530Part no. K9602943EAN 3540260224343

62 specifications Checked today

Display77.2 cm (30.4")
Resolution3280 x 2048 pixels
ColourBlack, White
Built-in speaker(s)No
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 77.2 cm (30.4")
Resolution: 3280 x 2048 pixels
Colour: Black, White
Built-in speaker(s): No
Market positioning: Medical
Built-in USB hub: Yes

Brand: Barco
Category: Monitor
Model: MDCC-6530
Part number: K9602943
EAN / UPC: 3540260224343, 5054444320168
Also known as: Barco MDCC-6530 computer monitor 77.2 cm (30.4") 3280 x 2048 pixels 4K Ultra HD Black, White

Specifications

62 specifications in 11 groups

Display

Specification	Value
Display diagonal	77.2 cm (30.4")
Display resolution	3280 x 2048 pixels
Native aspect ratio	16:10
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
Display brightness (peak)	600 cd/m²
Display brightness (typical)	1050 cd/m²
Response time	18 ms
Screen shape	Flat
Contrast ratio (typical)	2000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.1995 x 0.1995 mm
Viewable size, horizontal	65.4 cm
Viewable size, vertical	40.9 cm
Colour depth	30 bit

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Black, White
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	3
HDMI	No
DisplayPorts quantity	3
DisplayPort version	1.2

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	No
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°

Power

Specification	Value
Power consumption (standby)	0.5 W
Power consumption (max)	80 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	3.6 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	20 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	714 mm
Depth (with stand)	240 mm
Height (with stand)	624 mm
Weight (with stand)	17.7 kg
Width (without stand)	714 mm
Depth (without stand)	74 mm
Height (without stand)	478 mm
Weight (without stand)	13.1 kg

Packaging data

Specification	Value
Package weight	22.3 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, USB
Quick start guide	Yes

Other features

Specification	Value
Certification	FDA 510(k) K191845 CE1639 (Medical Device) CCC (China) KC (Korea) BIS (India) EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan) INMETRO (Brazil) Safety specific: IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 +
