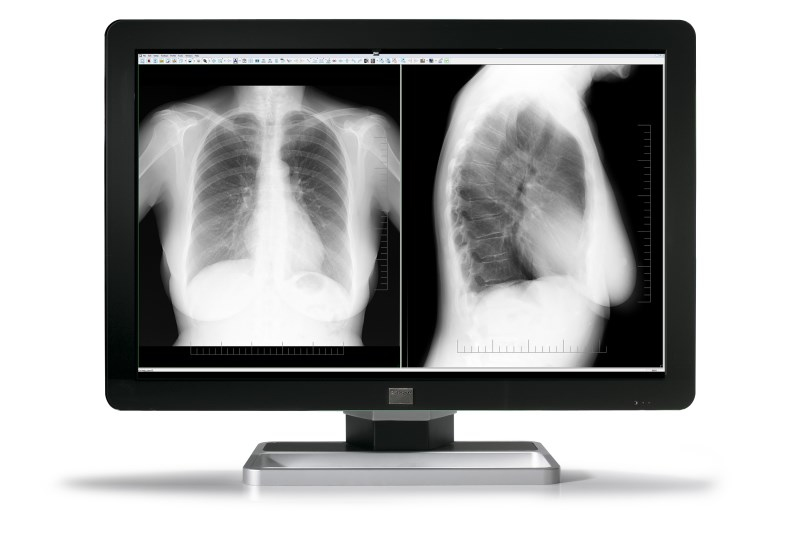

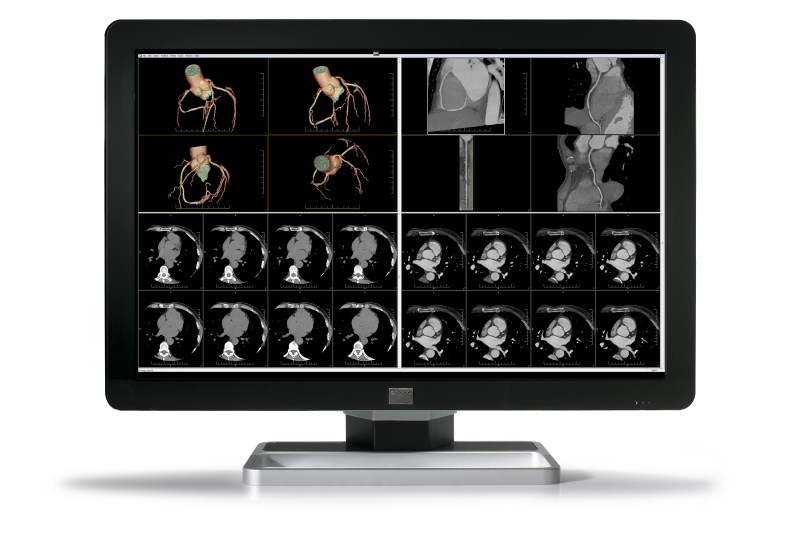

Barco MDCC-6430 computer monitor

MDCC-6430 computer monitor

77.2 cm (30.4") 3280 x 2048 pixels 4K Ultra HD LCD Black, Silver

Model MDCC-6430Part no. K9301635AEAN 5415334025660

75 specifications Checked today

Display77.2 cm (30.4")
Resolution3280 x 2048 pixels
ColourBlack, Silver
Built-in speaker(s)No
Market positioningMedical
Built-in USB hubYes

See all specifications

Overview

Display: 77.2 cm (30.4")
Resolution: 3280 x 2048 pixels
Colour: Black, Silver
Built-in speaker(s): No
Market positioning: Medical
Built-in USB hub: Yes

Brand: Barco
Category: Monitor
Model: MDCC-6430
Part numbers: K9301635A, K9602953
EAN / UPC: 5415334025660
Also known as: Barco MDCC-6430 computer monitor 77.2 cm (30.4") 3280 x 2048 pixels 4K Ultra HD LCD Black, Silver

Specifications

75 specifications in 11 groups

Display

Specification	Value
Display diagonal	77.2 cm (30.4")
Display resolution	3280 x 2048 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	4K Ultra HD
Panel type	TFT/IPS
Backlight type	LED
Display brightness (peak)	1050 cd/m²
Display brightness (typical)	600 cd/m²
Response time	18 ms
Screen shape	Flat
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.1995 x 0.1995 mm
Viewable size, horizontal	65.4 cm
Viewable size, vertical	40.9 cm
Viewable size diagonal	77.2 cm

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Megapixel (approx.)	6 MP

Design

Specification	Value
Market positioning	Medical
Product colour	Black, Silver
Detachable stand	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	2
HDMI ports quantity	0
DisplayPorts quantity	2

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	No
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	14

Power

Specification	Value
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Width (with stand)	731 mm
Depth (with stand)	259 mm
Height (with stand)	731 mm
Weight (with stand)	20.5 kg
Width (without stand)	731 mm
Depth (without stand)	140 mm
Height (without stand)	485 mm
Weight (without stand)	14 kg

Packaging data

Specification	Value
Package width	800 mm
Package depth	300 mm
Package height	700 mm
Package weight	27.5 kg

Packaging content

Specification	Value
Cables included	AC, USB
Quick start guide	Yes
Manual	Yes
Bundled software	MediCal QAWeb

Other features

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
Compliance certificates	RoHS
Safety	IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:14
Certification	IEC 60601-1-2:2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-001 Level B VCCI (Japan)
