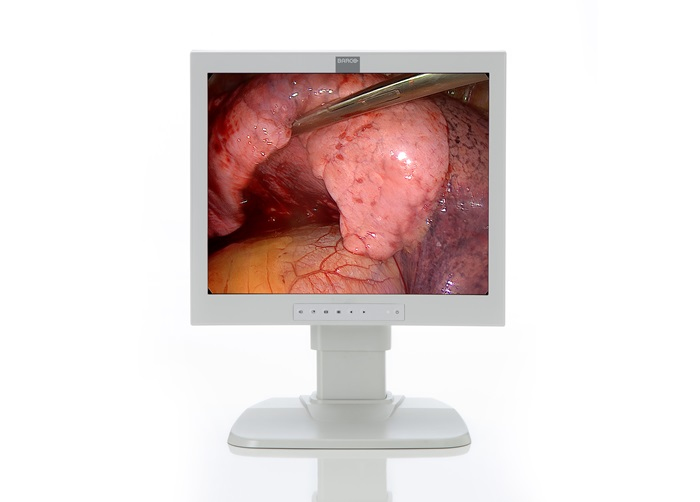

E192HSA computer monitor
48.3 cm (19") 1280 x 1024 pixels SXGA LCD White
Model E192HSAPart no. K9307921
72 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ColourWhite
- NVIDIA G-SYNCNo
- Market positioningMedical
- VESA mountingYes
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Colour
- White
- NVIDIA G-SYNC
- No
- Market positioning
- Medical
- VESA mounting
- Yes
- Brand
- Barco
- Category
- Monitor
- Model
- E192HSA
- Part number
- K9307921
- Also known as
- Barco E192HSA computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LCD White
Specifications
72 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | SXGA |
| Panel type | TFT |
| Display brightness (typical) | 300 cd/m² |
| Response time | 18 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Contrast ratio (typical) | 900:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.2 cm |
| Viewable size diagonal | 48.2 cm |
| 3D | No |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 2 |
| HDMI ports quantity | 0 |
| HDCP | Yes |
| Composite video out | 1 |
| BNC input ports | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| RS-232 ports | 1 |
| S-Video inputs quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian |
| Number of OSD languages | 5 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 425 mm |
| Depth (without stand) | 96.8 mm |
| Height (without stand) | 375 mm |
| Weight (without stand) | 5.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 593 mm |
| Package depth | 192 mm |
| Package height | 483 mm |
| Package weight | 8.87 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DVI |
| Manual | Yes |
| Power cable length | 3 m |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| RS-232 interface | Yes |
| Certification | MDD 93/42/EEC (Class1), Amended by 2007/47/EC, EN 60601-1 3rd Edition (2006), IEC 60601-1 3rd Edition (2005), ANSI/AAMI ES60601-1 3rd Edition (2005), ANSI/AAMI ES60601-1 3rd Edition (2005), CE c-UL-us, DEMKO, PSE, CCC, IEC/EN 60601-1-2 (2007), EN55011/CISPR 11 ( Class B), FCC CFR47 part 15 & 18, RoH |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
