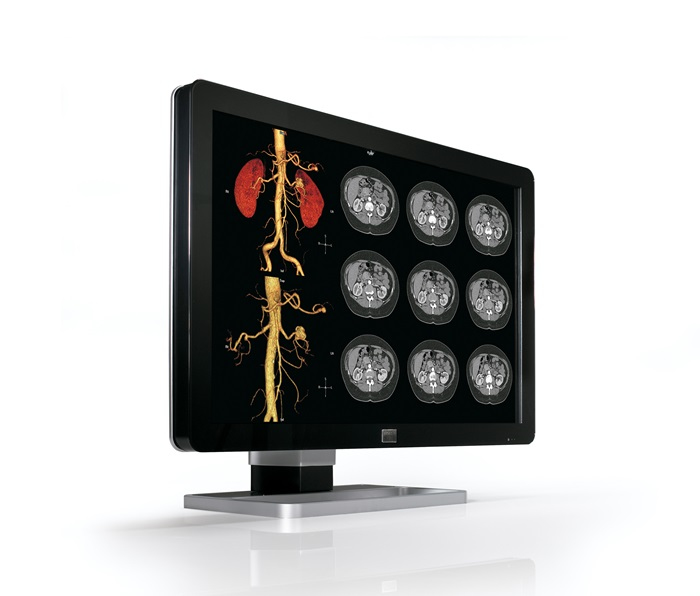

Barco Coronis Fusion 4MP (MDCC-4330)

Model Coronis Fusion 4MP (MDCC-4330)Part no. K9602824EAN 5499778006584

75 specifications Checked 3 days ago

Overview

Brand: Barco
Category: Monitor
Model: Coronis Fusion 4MP (MDCC-4330)
Part number: K9602824
EAN / UPC: 5499778006584
Also known as: Barco Coronis Fusion 4MP (MDCC-4330) computer monitor 77.2 cm (30.4") 2560 x 1600 pixels WQXGA LCD Black, Silver

75 specifications in 13 groups

Specification	Value
Display diagonal	77.2 cm (30.4")
Display resolution	2560 x 1600 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	WQXGA
Panel type	TFT/IPS
Display brightness (typical)	1050 cd/m²
Response time	18 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1200 x 1600
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.256 x 0.256 mm
Viewable size, horizontal	65.4 cm
Viewable size, vertical	40.9 cm
Viewable size diagonal	77.2 cm
3D	No

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Medical
Product colour	Black, Silver

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
Number of upstream ports	1
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	2
HDMI ports quantity	0
DisplayPorts quantity	2

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	10 cm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	14

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 85%

Specification	Value
Cables included	AC, USB
Quick start guide	Yes

Specification	Value
TV tuner integrated	No
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE- 2014/30/EU, IEC 60950-1:2005 + A1:2009, EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013, IEC 60601-1:2005 + C1:2006 + C2:2007 + A1:2012, ANSI/AAMI ES 60601-1:2005 + A1:2012 + C1:2009 + A2:2010 + R1:2012, CAN/CSA C22.2 No. 60601-1
Supplied AC adapter type	LED

Specification	Value
Thin client installed	No
