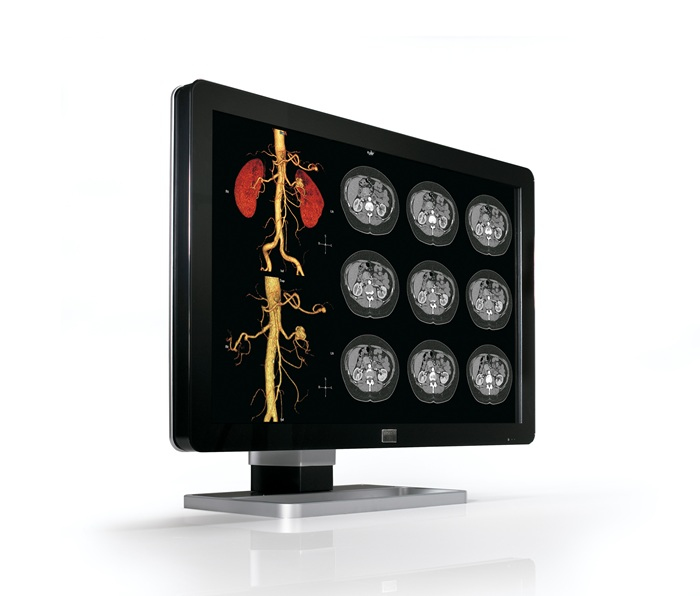

Barco Coronis Fusion 4MP DL

Model Coronis Fusion 4MP DLPart no. K9602650EAN 5499778004603

73 specifications Checked 2 days ago

Overview

Brand: Barco
Category: Monitor
Model: Coronis Fusion 4MP DL
Part numbers: K9602650, K9602652, K9602651
EAN / UPC: 5499778004603
Also known as: Barco Coronis Fusion 4MP DL computer monitor 76 cm (29.9") 2560 x 1600 pixels Full HD LCD Black, Silver

73 specifications in 12 groups

Specification	Value
Display diagonal	76 cm (29.9")
Display resolution	2560 x 1600 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS-Pro
Display brightness (typical)	1000 cd/m²
Response time	20 ms
Supported graphics resolutions	1600 x 1280, 1600 x 1200 (UXGA)
Aspect ratio	16:10
Contrast ratio (typical)	1100:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Pixel pitch	0.2505 x 0.2505 mm
Viewable size, horizontal	64.1 cm
Viewable size, vertical	40.5 cm
Viewable size diagonal	75.8 cm

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Market positioning	Medical
Product colour	Black, Silver

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	2
HDMI ports quantity	0
Card reader integrated	No

Specification	Value
Bluetooth	No
Ethernet LAN	No

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
Power management	Yes
Compliance industry standards	RoHS
Certification	UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1- M90, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 89/336/EEC, CE - 93/42/EEC, DEMKO - EN 60601-1, BSMI - CNS13438(95) + CNS14336(94), VCCI, FCC class B, ICES-001 Level B, MDD class IIb, FDA 510(k), KC, CCC - GB9254-2
Supplied AC adapter type	LCD
