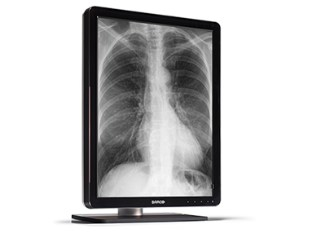

Barco Coronis 3MP LED

Coronis 3MP LED

Model Coronis 3MP LEDPart no. K9602641EAN 5499778005181

71 specifications Checked today

Display54.1 cm (21.3")
Resolution2048 x 1536 pixels
ColourBlack, White
Built-in speaker(s)No
Market positioningMedical
USB hub version2.0

See all specifications

Overview

Display: 54.1 cm (21.3")
Resolution: 2048 x 1536 pixels
Colour: Black, White
Built-in speaker(s): No
Market positioning: Medical
USB hub version: 2.0

Brand: Barco
Category: Monitor
Model: Coronis 3MP LED
Part numbers: K9602641, K9602639, K9602638
EAN / UPC: 5499778005181, 549977800454, 5499778004542, 5499778005174
Also known as: Barco Coronis 3MP LED computer monitor 54.1 cm (21.3") 2048 x 1536 pixels Full HD Black, White

Specifications

71 specifications in 11 groups

Display

Specification	Value
Display diagonal	54.1 cm (21.3")
Display resolution	2048 x 1536 pixels
Native aspect ratio	4:3
Touchscreen	No
HD type	Full HD
Display brightness (typical)	1700 cd/m²
Response time	40 ms
Aspect ratio	4:3
Contrast ratio (typical)	1400:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.2115 x 0.2115 mm
Horizontal scan range	15 - 129 kHz
Vertical scan range	24 - 100 Hz
Viewable size, horizontal	43.3 cm
Viewable size, vertical	32.5 cm
Viewable size diagonal	54 cm
Pixel frequency	280 MHz

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	Black, White

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	3
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	1
Card reader integrated	No

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	Yes
Adjustable height (max)	10 cm
Pivot	No
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
Number of OSD languages	14
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	40 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 7500 m

Weight & dimensions

Specification	Value
Width (with stand)	378 mm
Depth (with stand)	235 mm
Height (with stand)	628 mm
Weight (with stand)	12.8 kg
Width (without stand)	378 mm
Depth (without stand)	84 mm
Height (without stand)	491 mm
Weight (without stand)	8 kg

Packaging content

Specification	Value
Cables included	DisplayPort, DVI, USB
Quick start guide	Yes
Bundled software	MediCal QAWeb

Other features

Specification	Value
AC adapter included	Yes
TV tuner integrated	No
Power management	Yes
Compliance industry standards	RoHS
Certification	CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-20
Supplied AC adapter type	LED
