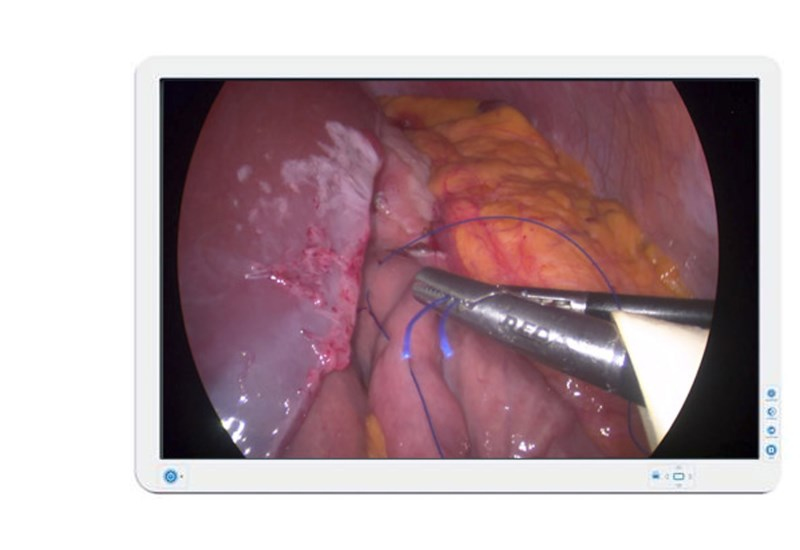

AMM240ED computer monitor
61.1 cm (24.1") 1920 x 1200 pixels Full HD LED White
Model AMM240EDPart no. 240EFDZEAN 5415334020214
47 specifications Checked today
- Display61.1 cm (24.1")
- Resolution1920 x 1200 pixels
- ColourWhite
- NVIDIA G-SYNCNo
- Market positioningMedical
- VESA mountingYes
Overview
- Display
- 61.1 cm (24.1")
- Resolution
- 1920 x 1200 pixels
- Colour
- White
- NVIDIA G-SYNC
- No
- Market positioning
- Medical
- VESA mounting
- Yes
- Brand
- Barco
- Category
- Monitor
- Model
- AMM240ED
- Part number
- 240EFDZ
- EAN / UPC
- 5415334020214
- Also known as
- Barco AMM240ED computer monitor 61.1 cm (24.1") 1920 x 1200 pixels Full HD LED White
Specifications
47 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61.1 cm (24.1") |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Viewable size, horizontal | 52 cm |
| Viewable size, vertical | 32.6 cm |
| Viewable size diagonal | 61.1 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| DVI port | Yes |
| DVI-I ports quantity | 2 |
| DisplayPorts quantity | 0 |
| Audio input | No |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | No |
| Picture-in-Picture | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -18 - 60 °C |
| Operating relative humidity (H-H) | 25 - 75% |
| Storage relative humidity (H-H) | 15 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 570 mm |
| Depth (without stand) | 63.2 mm |
| Height (without stand) | 386.9 mm |
| Weight (without stand) | 7.35 kg |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | IEC 60601-1: 2012 3.1 EN 60601-1: 2006 +A1:2013 ANSI/AAMI ES 60601-1: 2005/(R)2012 A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012 CAN/CSA-C22.2 No. 60601-1: 14 AS/NZS 3200-1:1988 CCC (GB4943.1-2011) CB-ITE (IEC 60950-1:2005 (2nd Ed); Am1:2009 +Am2:2013 IP22 ROHS-2, REACH, WEEE |
