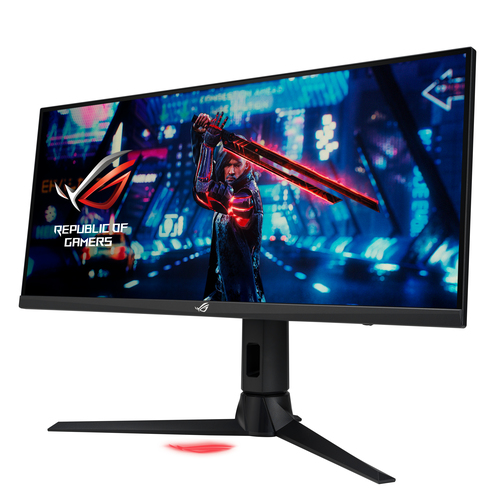

ROG Strix XG309CM computer monitor
74.9 cm (29.5") 2560 x 1080 pixels UltraWide Full HD Black
Model XG309CMPart no. 90LM07N0-B01170EAN 195553462945
74 specifications Checked today
- Display74.9 cm (29.5")
- Resolution2560 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCYes
- Market positioningGaming
- Power consumption (typical)28 W
Overview
- Display
- 74.9 cm (29.5")
- Resolution
- 2560 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- Yes
- Market positioning
- Gaming
- Power consumption (typical)
- 28 W
- Brand
- ASUS
- Category
- Monitor
- Model
- XG309CM
- Part number
- 90LM07N0-B01170
- EAN / UPC
- 195553462945, 4711081233176
- Also known as
- ASUS ROG Strix XG309CM computer monitor 74.9 cm (29.5") 2560 x 1080 pixels UltraWide Full HD Black
Specifications
74 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 74.9 cm (29.5") |
| Display resolution | 2560 x 1080 pixels |
| Native aspect ratio | 21:9 |
| Touchscreen | No |
| HD type | UltraWide Full HD |
| Panel type | IPS |
| Backlight type | LED |
| Display brightness (typical) | 300 cd/m² |
| Response time | 1 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 220 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Viewable size, horizontal | 69 cm |
| Viewable size, vertical | 29.1 cm |
| Digital horizontal frequency | 30 - 250 kHz |
| Digital vertical frequency | 48 - 220 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Colour gamut standard | sRGB |
| Colour gamut | 110% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C downstream ports quantity | 1 |
| USB Power Delivery up to | 15 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Built-in KVM switch | Yes |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 11 cm |
| Swivelling | Yes |
| Swivel angle range | 25 - -25° |
| Tilt adjustment | Yes |
| Tilt angle range | 20 - -5° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 28 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 707.3 mm |
| Depth (with stand) | 264.9 mm |
| Height (with stand) | 486.1 mm |
| Weight (with stand) | 7.5 kg |
| Width (without stand) | 707.3 mm |
| Depth (without stand) | 73.8 mm |
| Height (without stand) | 320.7 mm |
| Weight (without stand) | 4.56 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 940 mm |
| Package depth | 226 mm |
| Package height | 412 mm |
| Package weight | 11.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
